FIT-BOX Roller Blinds - Box Roller Blind

Verified by manufacturer 3 days ago

Bandalux Industrial SA Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • ASTM

    ASTM

    Certificate type

  • GreenGuard Gold

    GreenGuard Gold

    Certificate type

  • EPD

    EPD

    Certificate type

Highly resistant box roller blinds with a cassette and side channels for windows and glass doors.

Jump to:
+(34) 938 615 179 Website

Application

Roller blinds, suitable for indoor windows and glass doors, for in front and inside mount installation.

Description

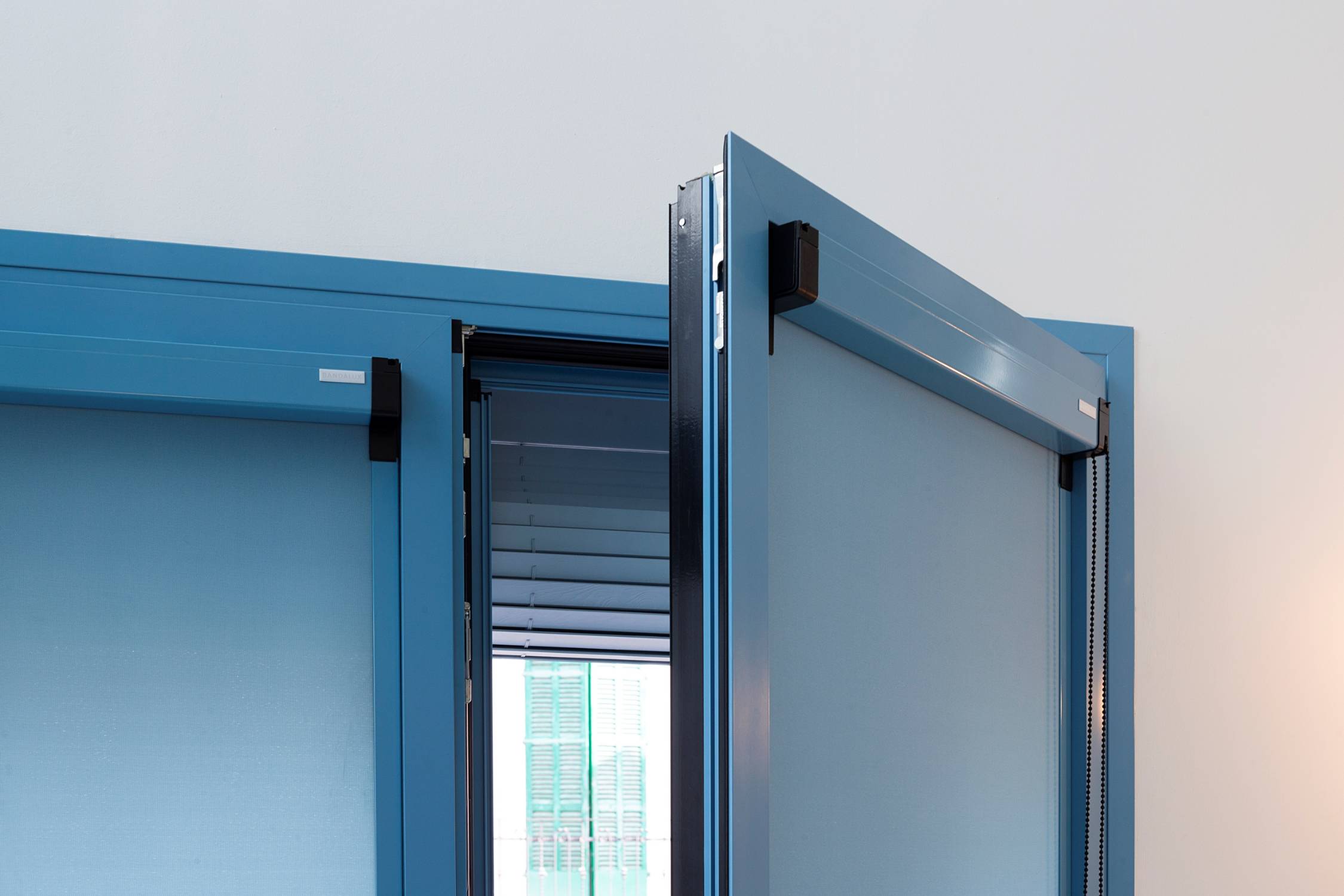

The Fit-Box roller blinds is a solution designed for windows and glass doors with the aesthetics and strength of a decorative cassette.


Its straight lines and modern aesthetics with self-supporting covers allows installing without the use of brackets. It attaches to the frame by means of ultra-resistant 3M adhesive. In addition to the chain and manual operating system, the new Fit-Box incorporates the rechargeable lithium-ion battery motor operating system. The cassette includes a small cover that allows to recharge the motor in a comfortable and functional way. Likewise, the cassette incorporates a housing to hide the motor antenna bringing to the system a total integration.


Features and benefits:

  • Installation versatility - available in front and inside mount installation.
  • Fits seamlessly into windows and glass doors.
  • Easy to install.
  • Lateral guide system and the different textures and colours of the blackout fabric range enables a semi-blackout option.
  • Easy cleaning, maintenance and access to the motor.
  • Crank, motor or handle operation.
  • Two year warranty.
  • Child safe system.
  • CE marked.

General information

Color

White

Black

Grey

Brown

Other

Finish

Anodized

Material

Fabric

Aluminium

Shape

Rectangle

Square

Width

Bespoke

200 mm

Guidance for specification option:

Minimum width.

1600 mm

Guidance for specification option:

Maximum width.

Height

Bespoke

200 mm

Guidance for specification option:

Minimum height.

2500 mm

Guidance for specification option:

Maximum height.

Warranty description

Three year

Uniclass

Pr_30_59_07_72 Roller blindsPrimary

CAWS

N10/70 Blinds

N10/240 Blinds

Specification data - Roller blinds

Standards

To BS EN 13120.

Position

Internal, front installation.

Guidance for specification option:

Adhesive on the frame.

Internal, inside mount installation.

Dimensions (minimum width x depth)

200 x 200 mm.

Guidance for specification option:

  • Maximum (width x height): 1600 x 2500 mm.
  • Consult manufacturer and insert requirements.

Manufacturer guidance

Minimum (width x height).

Headrail

-

Material

Aluminium.

Blinds

-

Material

Fabric.

Guidance for specification option:

Consult manufacturer's literature and insert requirements.

Blackout function

Required.

Guidance for specification option:

Consult manufacturer's literature for Blackout fabrics and insert requirements.

Not required.

Finish

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Colour

-

Manufacturer guidance

Consult manufacturer's literature and insert requirements.

Pattern

Digital Printing.

Guidance for specification option:

Consult manufacturer and insert requirements.

Not required.

Tube

-

Material

Extruded aluminium.

Diameter

Ø26 mm.

Operation

Manual, 200 mm cord handle.

Manual, 600 mm cord handle.

Manual, plastic ball chain.

Guidance for specification option:

  • Standard configuration.
  • Incorporates a child safety device in compliance with European standard EN 13120.

Manual, transparent chain.

Guidance for specification option:

  • Optional configuration.
  • Incorporates a child safety device in compliance with European standard EN 13120.

Motor, Battery (12 V), Bandalux Rechargeable.

Guidance for specification option:

  • Rechargeable battery motor with a drive wheel that reduces the noise and vibration that the motor makes when turning.
  • Consult manufacturer's literature and insert requirements.

Mechanism endurance

To BS EN 13120, class 3.

Accessories

Safekids.

Guidance for specification option:

Child safety system.

Not required.

Bottom bar

Aluminium.

Components

White, RAL 9016.

Anodized Aluminium.

Black, RAL 9011.

Brown, RAL 8017.

Anthracite, RAL 7016.

Show more

Manufacturer guidance

Components colour (cassette, side channels and bottom bar).

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Fabric

Aluminium

Recyclability

Yes, Aluminum and Fabrics

Guidance for specification option:

Aluminum and Stainless Steel is 100% recyclable, an un-limited number of times, without losing or diminishing its chemical or mechanical characteristics. For this reason, the life cycle of an aluminum or stainless steel product tend to be circular, this concept being called “cradle-to-cradle”, currently used to reach an efficient economy in the use of resources, that takes advantage of all materials at the end of their useful life as raw materials.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Guidance for specification option:

Bandalux’s extruded aluminum profiles and tubes have 95% recycled content.

Bandalux’s laminated aluminum has between 45% and 65% recycled content.

90% or our contract fabrics collection has 2% up to 100% recycled content.
