wedi Tools - Washers

Verified by manufacturer 1 month ago

Wedi Systems (UK) Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

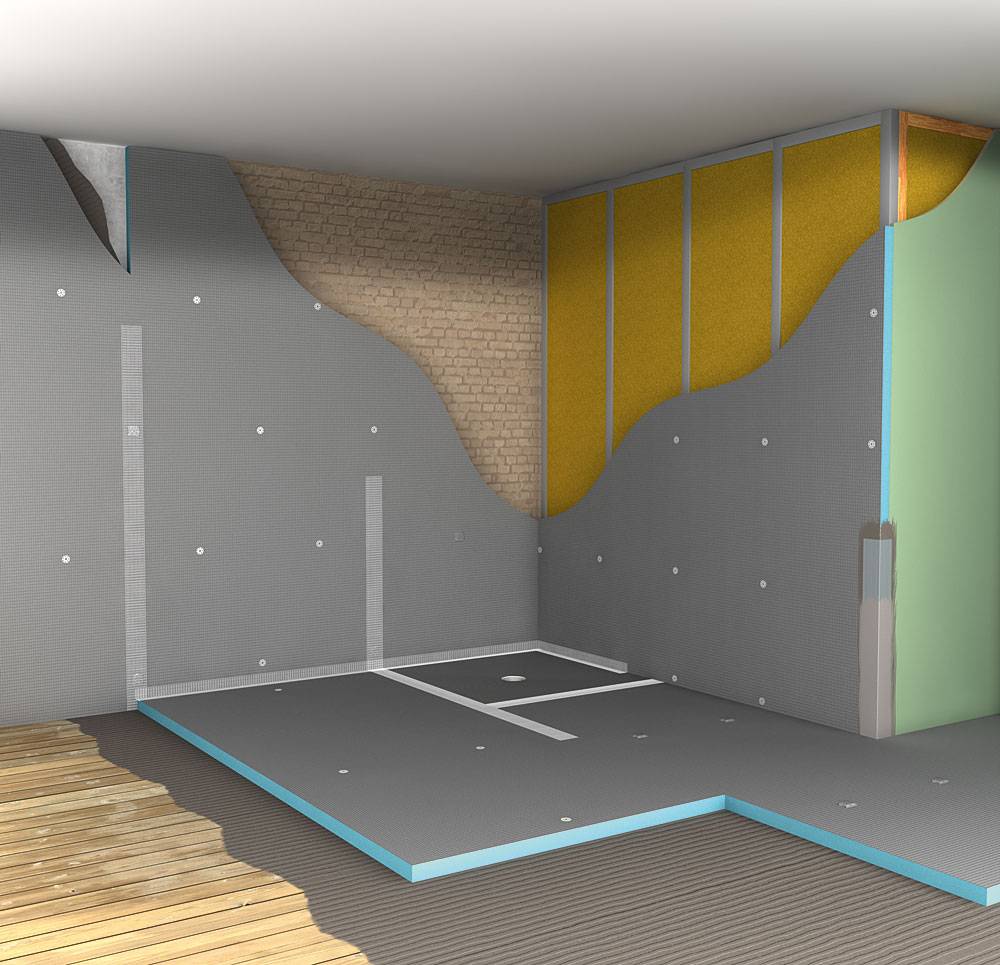

Insulation board washers. 35mm galvanised or stainless steel (for high humidity i.e. swimming pool) washer for mechanical fixing of tile backer or dry lining applications.

Jump to:
BOS
+44 (0)161 864 2336 Website

Application

To be used with a suitable screw for mechanical fixing of wedi Building Board elements.

Prevents the screws from being driven into the XPS foam.

5 pieces per m² with ceramic tiles; 8 pieces per m² with

large format tiles or natural stone (for tile weights exceeding 60kg/m2 seek further guidance from the manufacturer).

Description

Insulation board washers, which prevent the screws penetrating into the extruded polystyrene (XPS) foam.


Fixing discs are galvanized or stainless steel.

General information

Color

Silver

Finish

Galvanized

Metallic

Material

Metal

Shape

Circle

Length

0 mm

Width

35 mm

Guidance for specification option:

35mm dia.

Manufacturer guidance

35mm dia.

Height

0 mm

Warranty description

Ten year

Uniclass

Pr_40_20_06_79 Shower enclosuresPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Accessories / Fixings

Specification data - Shower enclosures

Form

Insulation board washers.

Materials

-

Frame

-

Body

Galvanized steel.

Stainless steel.

Dimensions

-

Plan size

35 mm diameter.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

100%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

3

Revit
-

3

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA certificate 00/3675 wedi Building Boards

European Technical Approval (ETA)

European Technical Approval (ETA)

ETA - 13/0385
