wedi Tools - Dowels - special wall plug for building boards

Verified by manufacturer 29 days ago

094920104-metal dowel

Wedi Systems (UK) Ltd Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • EPD

    EPD

    Certificate type

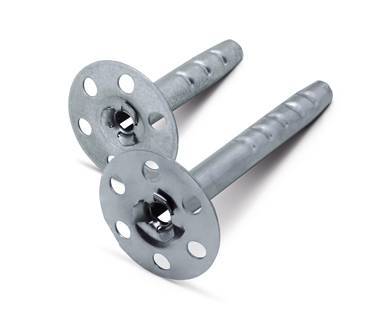

Metal and plastic dowels. For the mechanical fixing of wedi building boards to masonry walls or concrete ceilings.

Jump to:
BOS
+44 (0)161 864 2336 Website

Application

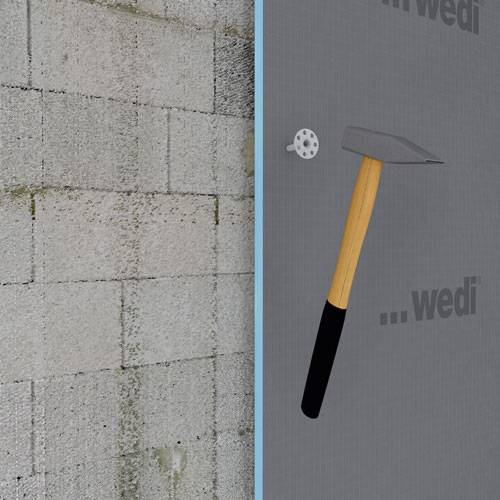

Suitable for attachment of wedi building boards (4–100 mm) to concrete/masonry walls and ceilings.

Description

For the long-term fixing of building board systems on uneven substructures.


Features and benefits:

  • Depending on the surface, the galvanized or stainless steel wedi Tools metal dowels are to be applied.
  • The stainless steel wedi Tools metal dowel is to be used for ambient conditions with higher humidity or in contact with plaster-containing substances.
  • The dowel length has to be selected for a bonding depth of at least 35 mm.

General information

Color

Silver

White

Finish

Unfinished

Material

Steel

Guidance for specification option:

  • Galvanised
  • V2 A stainless steel

Plastic

Shape

Other

Length

50 mm

80 mm

110 mm

140 mm

Width

35 mm

40 mm

Height

0 mm

Warranty description

Ten year

Uniclass

Pr_40_20_06_79 Shower enclosuresPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Accessories / Fixings

Specification data - Shower enclosures

Materials

-

Frame

-

Body

Galvanised steel.

Dimensions

-

Plan size

50 mm.

Manufacturer guidance

Length.

Concrete specification

-

Manufacturer guidance

Admissible load in concrete 1) C 20/25 to C 50/60 Nzul 0.074 KN.


  • To determine the admissible load, a partial safety factor of γM = 1.5 was applied on the resistance side and a partial safety factor of γF = 1.4 on the load side.

Quantity

100 pieces/ box.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

3

Revit
-

3

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA certificate 00/3675 wedi Building Boards

European Technical Approval (ETA)

European Technical Approval (ETA)

ETA - 13/0385

EPD

EPD

Environmental Product Declaration (EPD) - wedi Building Boards
