wedi Solso – Shower Element for PVC Covering - shower tray former

Verified by manufacturer 29 days ago

Wedi Systems (UK) Ltd

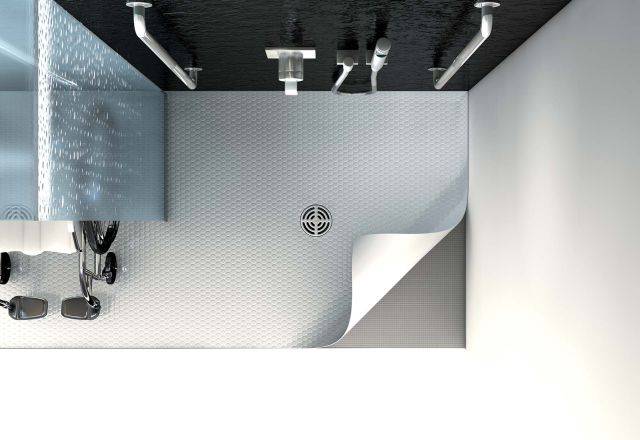

Barrier-free shower element for polyvinyl chloride (PVC) coatings.

Jump to:
BOS
+44 (0)161 864 2336 Website

Application

  • Hospitals.
  • Private and public care institutions.
  • Shower areas with PVC surface.

Description

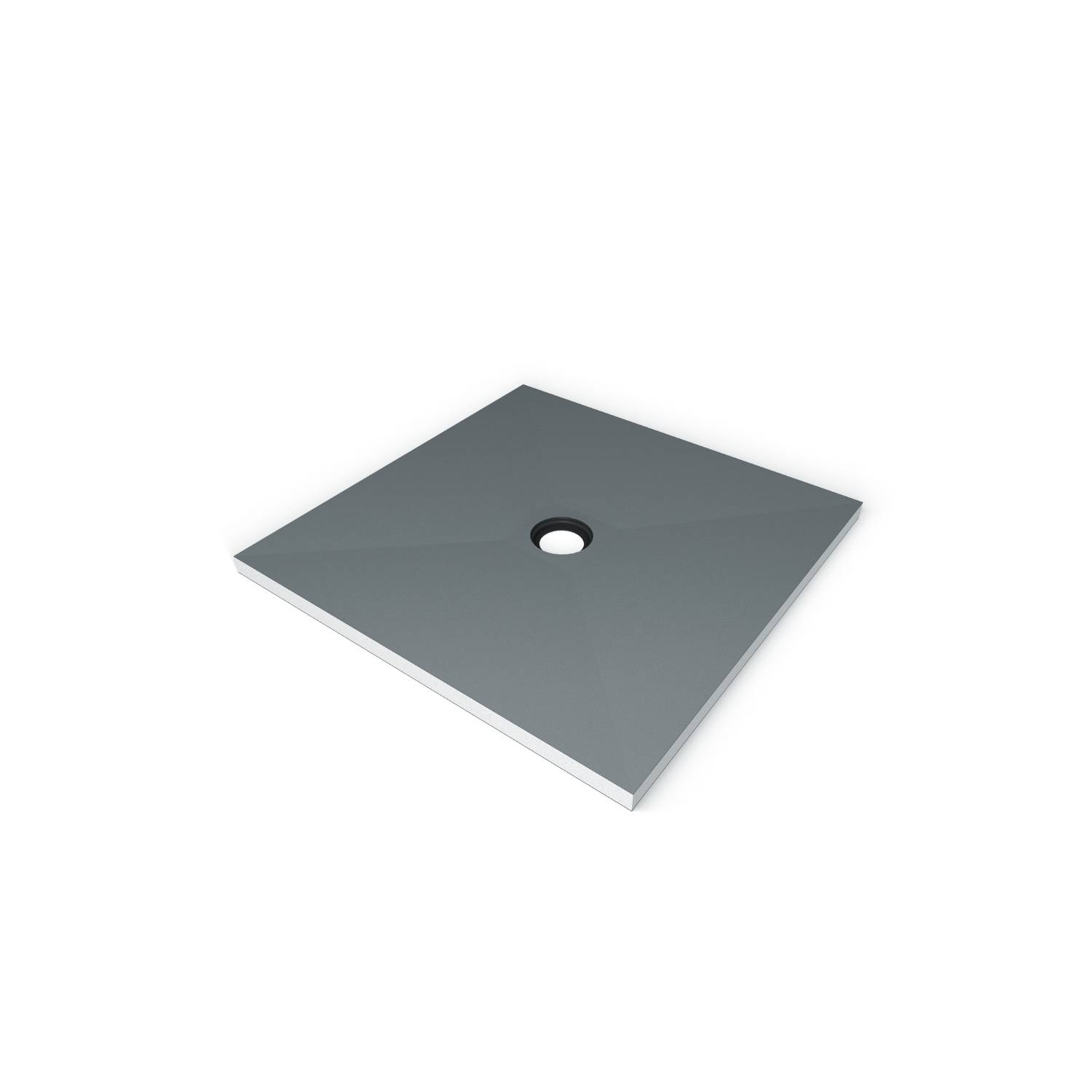

A floor-level shower system for wet areas developed especially for polyvinyl chloride (PVC) coverings and manufactured from a highly closed polystyrene expanded plastic slab.


The product provides a suitable substructure for high pressure-point loads (2.5 N/mm², maximum) from wheelchairs or walking frames. The whole system is considerably easier and quicker to install than other traditional building methods. Furthermore, the PVC surface can be attached to the drainage system without sticking, and is waterproof.


The product contains hexabromocyclododecane as a flame retardant in a concentration >0.1%. This substance is listed in annex XIV to the REACH Regulation (EC) No. 1907/2006.

General information

Color

White

Finish

Cement

Unfinished

Material

High density polystyrene

Shape

Square

Length

900 mm

1200 mm

Bespoke

Width

900 mm

1200 mm

Bespoke

Height

40 mm

Warranty description

Ten year

Uniclass

Pr_40_20_06_79 Shower enclosuresPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Shower Systems / Shower Tray Formers

Specification data - Shower enclosures

Form

Barrier-free shower element for polyvinyl chloride (PVC) coatings.

Dimensions

-

Plan size

900 x 900 x 40 mm.

1200 x 1200 x 40 mm.

Accessories

None.

Building board.

Guidance for specification option:

Various options available, consult literature and insert requirements.

Point drainage, square drain cover.

Guidance for specification option:

Various options available, consult literature and insert requirements.

wedi 610 – adhesive sealant.

wedi building boards XL.

Guidance for specification option:

Various options available, consult literature and insert requirements.

Show more

Material and finish

Highly closed polystyrene expanded plastic.

Guidance for specification option:

  • Maximum recommended compressive strength under service load: 2.50 N/mm².
  • Compressive strength at ≤ 2% long-term immersion (EN 13163): 3.78 N/mm².
  • Compressive strength at 10% compressive strain (EN 13163): 6.47 N/mm².
  • Thermal conductivity (EN 13164): 0.05 W/mK.
  • Bulk density in line with (EN 1602): ≥280 kg/m³.
  • Temperature limits: -20 to +70°C.
  • Fire behaviour in line with DIN 13501-1: Class E.
  • Gas emissions: None.


Drain

Central.

Residual indentation

≤0.10 mm.

Guidance for specification option:

Following constant loading (with PVC covering) in line with (DIN EN 433).

Depth

130 mm.

Guidance for specification option:

Minimum installation depth for horizontal installation.

Slope

18 mm (≥3%).

Guidance for specification option:

Surface slope (from outer edge of Solso building board to outer edge of drain opening).

Frame

120 mm diameter.

Guidance for specification option:

Frame for holding stainless steel grate (fixed in the element).

Grate

115 mm diameter.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany
