wedi Tools - Fixing Set - composite fixing plates for heavy object

Verified by manufacturer 2 months ago

Wedi Systems (UK) Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

Fixing for secure hold of heavy objects, such as fittings or shelves under the tiles.

Jump to:
BOS
+44 (0)161 864 2336 Website

Application

For mounting of heavy objects such as heated towel racks, handles, cabinet elements or glass doors on tiled or plastered wedi walls/ constructions.

Description

Fixing set for a secure hold underneath the tiles.


Features and benefits:

  • Heavy objects such as fittings and glass doors, can be attached securely with the mounting set.
  • Depending on the load, the larger or smaller reinforcing plate contained in the set can be used.

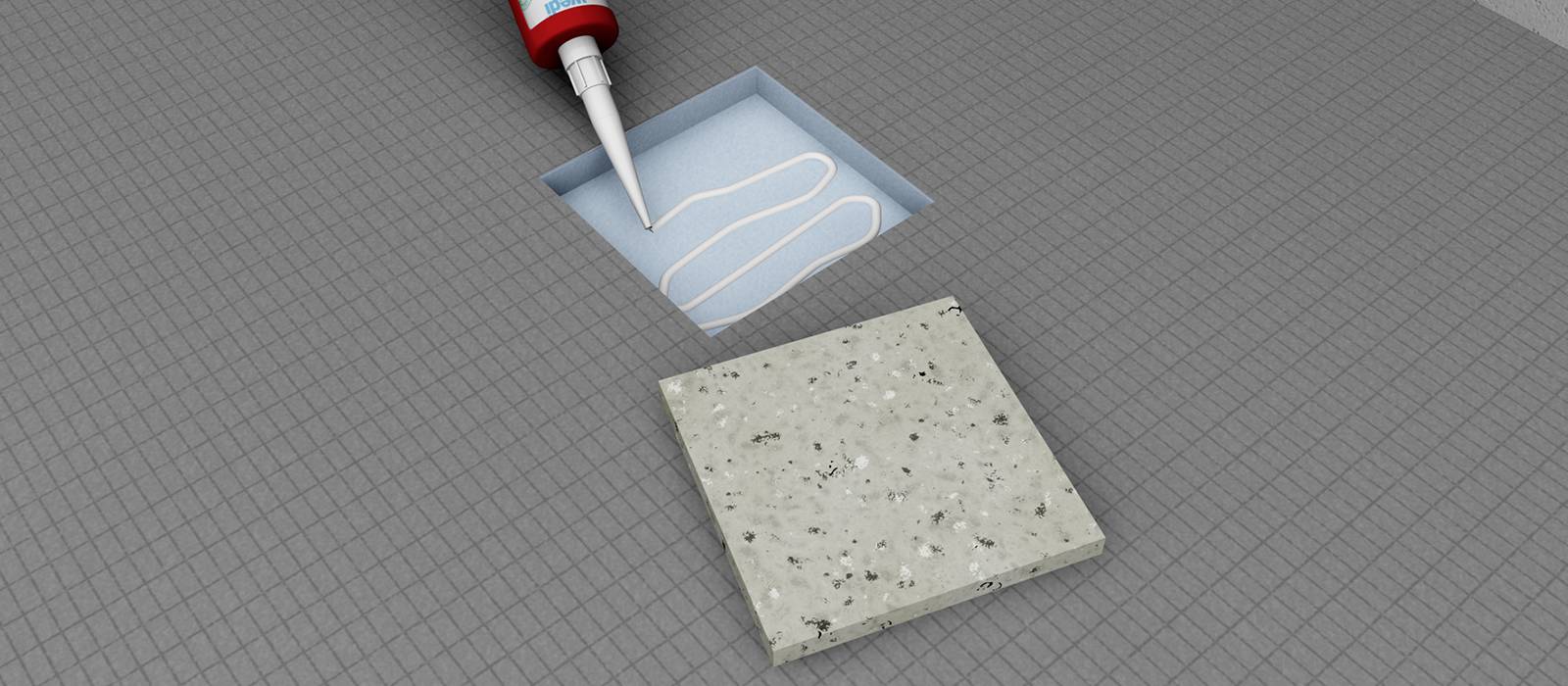

  • The plate is easily integrated into a suitable recess in the wedi structural panel with wedi 610 adhesive sealant.
  • For bond tensile strength values of up to 160 kg.
  • As the material is moisture-resistant, it can also be used in heavy traffic wet areas.



General information

Shape

Rectangle

Square

Size

-

Manufacturer guidance

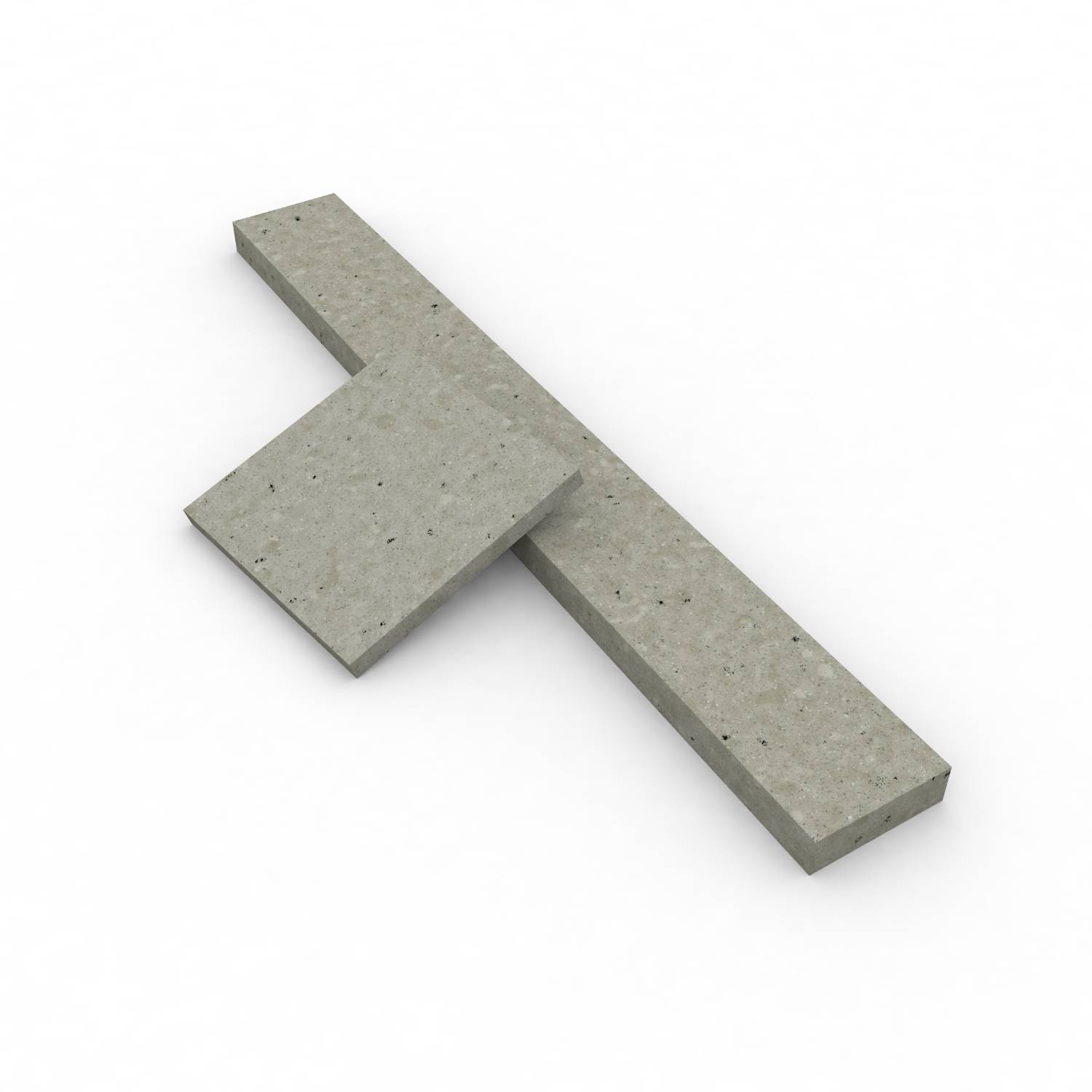

2 sizes available:

400 x 50 x 15 mm

100 x 100 x 8 mm

Length

400 mm

100 mm

Width

50 mm

100 mm

Height

8 mm

15 mm

Warranty description

Ten year

Uniclass

Pr_40_20_06_79 Shower enclosuresPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Accessories / Fixings

Specification data - Shower enclosures

Dimensions

-

Plan size

400 x 50 x 15 mm.

Guidance for specification option:

Two mounting plates included in set.

100 x 100 x 8 mm.

Guidance for specification option:

12 mounting plates included in set.

Integral accessories

None.

Building board.

wedi 610 - adhesive sealant.

wedi building boards XL.

Guidance for specification option:

Various options available, consult literature and insert requirements.

wedi building board XXL.

Guidance for specification option:

Various options available, consult literature and insert requirements.

wedi Tools joint reinforcement tape.

TensileStrength

-

Manufacturer guidance

  • Bonding tensile value of mounting board at 100 x 100 x 8 mm wedi construction board: 800 N.
  • Bonding tensile value of mounting board at 400 x 50 x 15 mm wedi construction board: 1600 N.


Resistance

-

Manufacturer guidance

  • Resistance to withdrawal of screws with a 4.5 mm thick wooden screw with 8 mm material thickness: Circa 400 N.
  • Resistance to withdrawal of screws with a 4.5 mm thick wooden screw with 15 mm material thickness: Circa 1000 N.


Swelling capability

Circa 1.1%.

Manufacturer guidance

Swelling in thickness after 24 hour storage in water.

Coefficient of linear expansion (to ASTM E-831)

K-1.

Building material class

B2.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
