wedi Tools - Dowels - special wall plug for building boards

Name: wedi Tools - Dowels - special wall plug for building boards
Brand: Wedi Systems (UK) Ltd
SKU: oWG38zHKFBrQBWJw6JxCFV

Verified by manufacturer 2 months ago

094920104-metal dowel

Third party certifications:

Metal and plastic dowels. For the mechanical fixing of wedi building boards to masonry walls or concrete ceilings.

Jump to:

BOS

Application

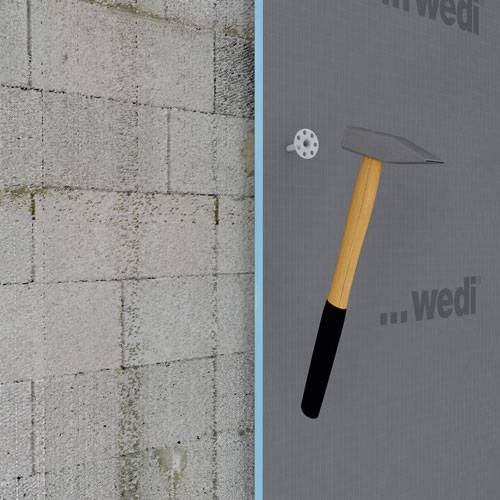

Suitable for attachment of wedi building boards (4–100 mm) to concrete/masonry walls and ceilings.

For the long-term fixing of building board systems on uneven substructures.

Features and benefits:

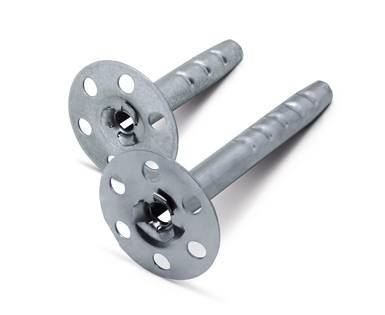

Depending on the surface, the galvanized or stainless steel wedi Tools metal dowels are to be applied.
The stainless steel wedi Tools metal dowel is to be used for ambient conditions with higher humidity or in contact with plaster-containing substances.
The dowel length has to be selected for a bonding depth of at least 35 mm.

Color	Silver White
Finish	Unfinished
Material	Steel Guidance for specification option: Galvanised V2 A stainless steel Plastic
Shape	Other
Length	50 mm 80 mm 110 mm 140 mm
Width	35 mm 40 mm
Height	0 mm
Warranty description	Ten year

Uniclass	Pr_40_20_06_79 Shower enclosuresPrimary
CAWS	N13/375 Shower units N13/40 Shower units

Product range	Accessories / Fixings

Materials	-
Frame	-
Body	Galvanised steel.
Dimensions	-
Plan size	50 mm. Manufacturer guidance Length.

Concrete specification	- Manufacturer guidance Admissible load in concrete 1) C 20/25 to C 50/60 Nzul 0.074 KN. To determine the admissible load, a partial safety factor of γM = 1.5 was applied on the resistance side and a partial safety factor of γF = 1.4 on the load side.
Quantity	100 pieces/ box.
