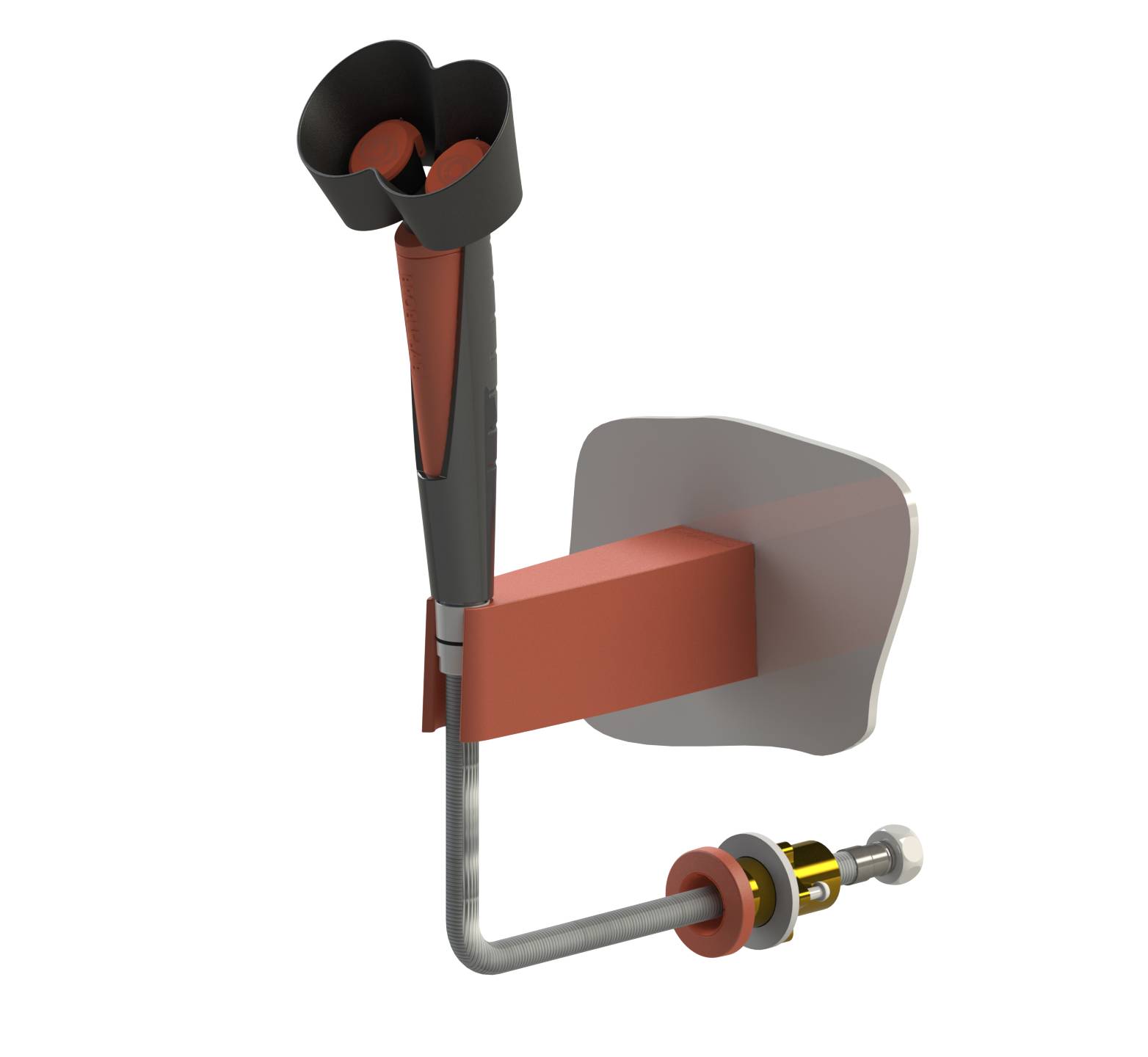

Wall Mounted Handheld Emergency Eyewash

Name: Wall Mounted Handheld Emergency Eyewash
Brand: BROEN-LAB
SKU: sMhGMN1sHVtvTfazSUNJg2

Verified by manufacturer 4 months ago

BROEN-LAB

Third party certifications:

QA Certificate
Certificate type
Certificate of Compliance
Certificate type
Certifire Certificate
Certificate type

Wall-mounted handheld eye shower designed in accordance with BS EN 15154-1&2 and ANZI Z 385.1 and provided as a double eye shower in 45° with self-opening protection lids in the signal colour red.

Jump to:

+44 (0)121 522 2225 Website

Application

For use where employees are at risk of harmful substances hitting their face. For use in pharma, industrial and education establishments and hospitals.

Description

Wall-mounted handheld eye shower designed in accordance with BS EN 15154-1&2 And ANZI Z 385.1 and provided as a double eye shower in 45° with self-opening protection lids in the signal colour red.

Features and benefits:

Simple activation and well-balanced construction make it easy to operate the shower in stressful situations.
The eye shower is provided with a rubber shower head for easy removal of limescale.
2.0 metre inlet hose.
Wall bracket, 150 mm projection.
Shower head and protection lid must be protected by a rubber mantle.
Built-in check valve and flow reduction unit (FLOWFIX) will provide the correct water flow, maximum 14 L/min.
Illuminating 3D sign to be attached on wall, for easy and clear identification of emergency station.
Instruction and test sign to be wall mounted.
ANSI Z358.1 compliant.
Single eye and/or bench-mounted models also available, as well as alternative wall-mounted models; consult manufacturer for details.

Installation:

If possible and based on local regulations, ensure thermostatic mixing valve in installation, designed for delivering tepid water (20–25°C) with fail-safe on hot side i.e. 17140039.

Certificates:

DVGW - Hand-held showers
CSA - Hand-Held Eye Showers
CSA - Eye wash models

General information

Color	Red Black
Finish	Powder-coated
Material	Plastic Guidance for specification option: Polyamide (PA); polyoxymethylene (POM); thermoplastic elastomers (TPE). Stainless steel Guidance for specification option: AISI 316. Manufacturer guidance Other materials in media contact: Rubber, EPDM.
Warranty description	Two year

Uniclass	Pr_40_20_27_28 Eye-wash fountainsPrimary

Specification data - Eye-wash fountains

Units	-
Form	Wall mounted handheld eye/ face wash fountain.
Stations	Single user.
Water supply	Manufacturer's standard. Guidance for specification option: Inlet: DN8 hose with G½ Union nut. Outlet: Spray heads. Mounting: Inlet: M30 x 1.5 nut with locking pins, O-ring and washer. Outlet: Wall bracket.
Operation	Manual, trigger.
Materials	-
Body	AISI 316 Stainless steel and plastics: polyamide (PA); polyoxymethylene (POM); thermoplastic elastomers (TPE).
Finish and colour	Signal red/ dark grey.
Size	296 x 150 x 45 mm. Guidance for specification option: Overall fountain height (base of bracket to fountain top) x bracket depth (projection) x distance between nozzles.
Integral accessories	Includes sign for eye shower station, instructions/ service signs and mounting.

Weight	1.0 kg.

Sustainability data

Country of product manufacture	Denmark
Material	Plastic Guidance for specification option: Polyamide (PA); polyoxymethylene (POM); thermoplastic elastomers (TPE). Stainless steel Guidance for specification option: AISI 316. Manufacturer guidance Other materials in media contact: Rubber, EPDM.
