Wall Mounted Emergency Eyewash
Verified by manufacturer 4 months ago
QA Certificate
Certificate type
Certificate of Compliance
Certificate type
Certifire Certificate
Certificate type

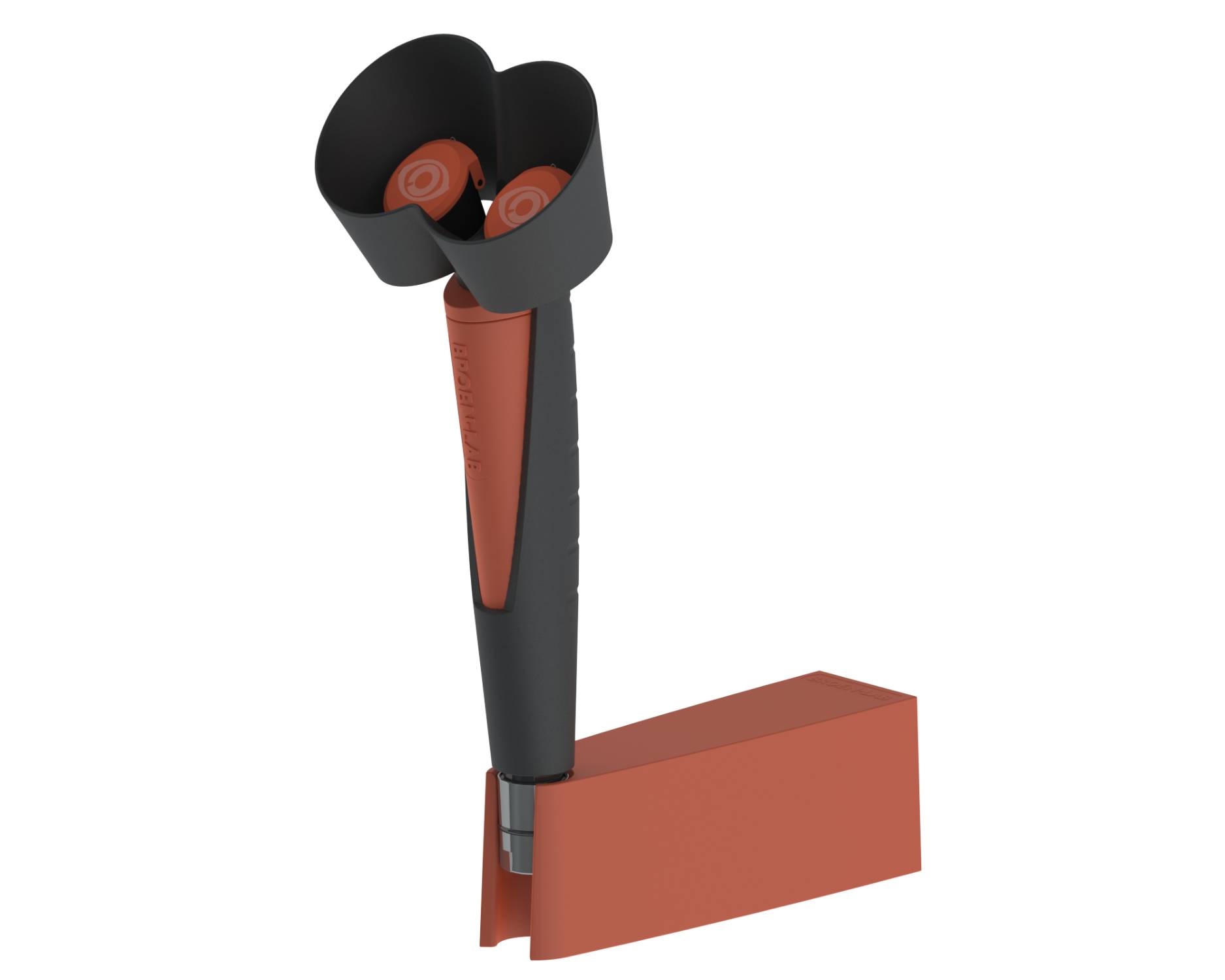

Wall-mounted eye shower designed in accordance with BS EN 15154-1&2 and ANSI Z 358.1 and provided as a double eye shower in 45° with self-opening protection lids in the signal colour red.
Application
For use where employees are at risk of harmful substances hitting their face. For use in pharma, industrial and education establishments and hospitals.
Description
Wall-mounted eye shower designed in accordance with BS EN 15154-1&2 and ANSI Z 358.1 and provided as a double eye shower in 45° with self-opening protection lids in the signal colour red.
Features and benefits:
- Simple activation and well-balanced construction make it easy to operate the shower in stressful situations.
- The eye shower is provided with a rubber shower head for easy removal of limescale.
- 1.5 metre inlet hose.
- Shower head and protection lid must be protected by a rubber mantle.
- Built-in check valve and flow reduction unit (FLOWFIX) will provide the correct water flow, maximum 14 L/min.
- Illuminating 3D sign to be attached on wall, for easy and clear identification of emergency station.
- Instruction and test sign to be wall mounted.
- ANSI Z358.1 compliant.
- Single eye and/or bench-mounted models also available; consult manufacturer for details.
Installation:
If possible and based on local regulations, ensure thermostatic mixing valve in installation, designed for delivering tepid water (20–25°C) with fail-safe on hot side i.e. 17140039.
Certificates:
- DVGW - Hand-Help Eye shower
- CSA - Hand-Held Eye Showers
- CSA - Eye Wash models
General information
Color | Red Black |
Finish | Powder-coated |
Material | Plastic Guidance for specification option: Polyamide (PA); polyoxymethylene (POM); thermoplastic elastomers (TPE). Stainless steel |
Shape | Other |
Length | 1500 mm |
Width | 45 mm |
Height | 239 mm |
Warranty description | Two year |
Uniclass |
Specification data - Eye-wash fountains
Units | |
Form | Wall mounted eye/ face wash fountain. |
Stations | Single user. |
Water supply | Spray taps. |
Operation | Manual, trigger. |
Materials | |
Body | AISI 316 Stainless steel and plastics: polyamide (PA); polyoxymethylene (POM); thermoplastic elastomers (TPE). |
Finish and colour | Signal red/ dark grey. |
Size | 296 x 150 x 45 mm.Guidance for specification option: Overall fountain height x holder depth x distance between nozzles. |
Integral accessories | Includes sign for eye shower station, instructions/ service signs and mounting. |
Product Reference | Wall Mounted Emergency Eyewash |
Weight | 0.5 kg. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | Denmark |
Material | Plastic Guidance for specification option: Polyamide (PA); polyoxymethylene (POM); thermoplastic elastomers (TPE). Stainless steel |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
QA Certificate
ISO9001
Certificate of Compliance

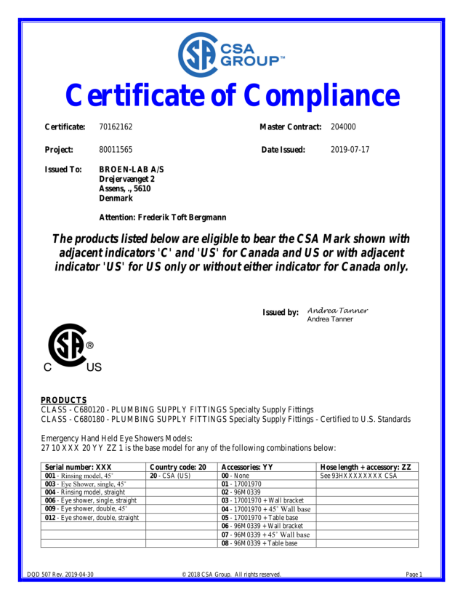

CSA US + C - Hand held eye shower models
Certificate of Compliance

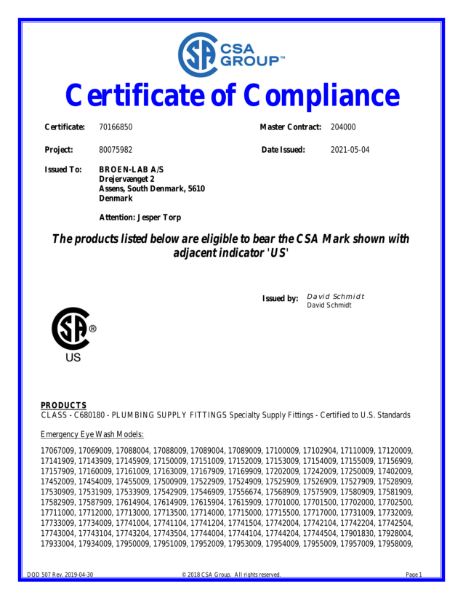

CSA US for Broen-Lab Eye wash models
Certifire Certificate

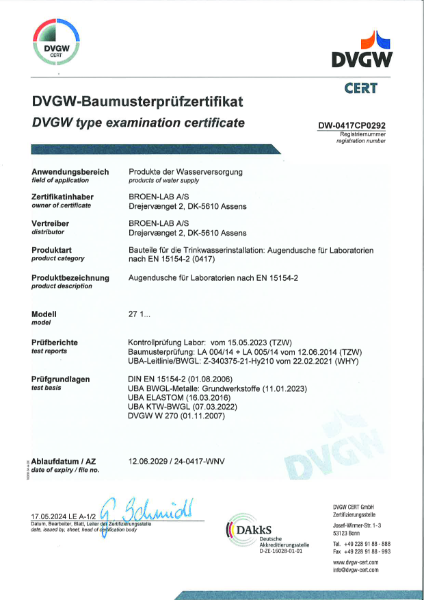

DVGW - Hand-held Eye Showers
