Bench Mounted Emergency Eyewash

Verified by manufacturer 2 months ago

BROEN-LAB Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • Certificate of Compliance

    Certificate type

  • Certifire Certificate

    Certifire Certificate

    Certificate type

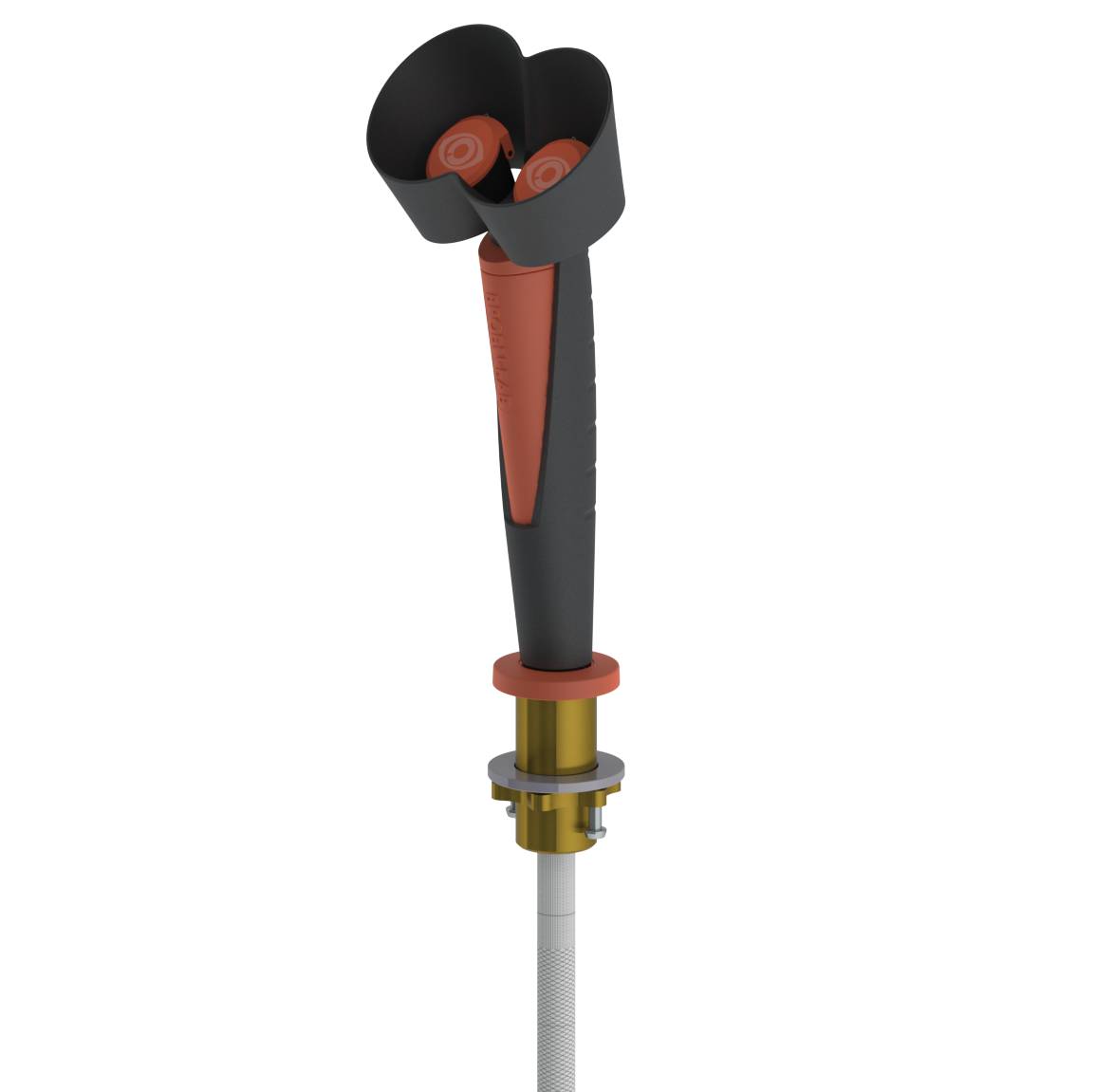

Bench-mounted eye shower designed in accordance with BS EN 15154-2 and provided as a double eye shower in 45° with self-opening protection lids in the signal colour red.

Jump to:
+44 (0)121 522 2225 Website

Application

For use where employees are at risk of harmful substances hitting their face. For use in pharma, industrial and education establishments and hospitals.

Description

Bench-mounted eye shower designed in accordance with BS EN 15154-2 and provided as a double eye shower in 45° with self-opening protection lids in the signal colour red.


Features and benefits:

  • Simple activation and well-balanced construction make it easy to operate the shower in stressful situations.
  • The eye shower is provided with a rubber shower head for easy removal of limescale.
  • 1.5 metre inlet hose.
  • Shower head and protection lid must be protected by a rubber mantle.
  • Built-in check valve and flow reduction unit (FLOWFIX) will provide the correct water flow, maximum 14 L/min.
  • Illuminating 3D sign to be attached on wall, for easy and clear identification of emergency station.
  • Instruction and test sign to be wall mounted.
  • ANSI Z358.1 compliant.
  • Single eye and/or wall-mounted models also available; consult manufacturer for details.


Installation:

If possible and based on local regulations, ensure thermostatic mixing valve in installation, designed for delivering tepid water (20–25°C) with fail-safe on hot side i.e. 17140039.


Certificates


  • DVGW - Hand-Held showers
  • CSA - Hand-Held Eye Showers
  • CSA - Eye Wash models

General information

Color

Red

Finish

Powder-coated

Material

Stainless steel

Plastic

Guidance for specification option:

Polyamide (PA); polyoxymethylene (POM); thermoplastic elastomers (TPE).

Shape

Other

Length

1500 mm

Width

45 mm

Height

237 mm

Warranty description

Two year

Uniclass

Pr_40_20_27_28 Eye-wash fountainsPrimary

Specification data - Eye-wash fountains

Units

-

Form

Bench mounted eye wash fountain

Stations

Single user.

Water supply

Spray taps

Operation

Manual, trigger

Materials

-

Body

AISI 316 Stainless steel and plastics: polyamide (PA); polyoxymethylene (POM); thermoplastic elastomers (TPE)

Finish and colour

Signal red/ dark grey

Size

45 x 305 mm

Guidance for specification option:

Length x height.

Integral accessories

Includes sign for eye shower station, instructions/ service signs and mounting.

Weight

0.5 kg

Product Reference

Bench Mounted Emergency Eyewash

Sustainability data

Country of material origin

Europe

Country of product manufacture

Denmark

Material

Stainless steel

Plastic

Guidance for specification option:

Polyamide (PA); polyoxymethylene (POM); thermoplastic elastomers (TPE).

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO140001

QA Certificate

QA Certificate

ISO9001

Certificate of Compliance

Certificate of Compliance

CSA US + C - Hand held eye shower models

Certifire Certificate

Certifire Certificate

DVGW - Hand-held Eye Showers

Certificate of Compliance

Certificate of Compliance

CSA US for Broen-Lab Eye wash models

Literature

EMERGENCY SHOWER SYSTEMS

EMERGENCY SHOWER SYSTEMS

Case studies

Eye Showers for sinks

Eye Showers for sinks

The responsible company wins

The responsible company wins

Similar products from BROEN-LAB

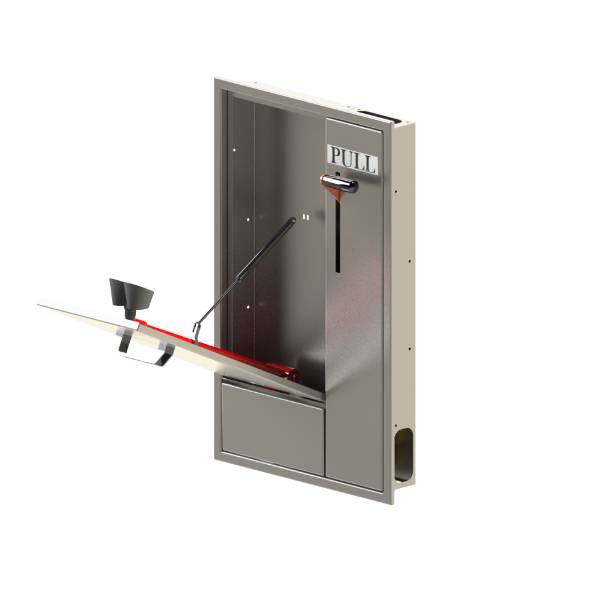

Safety Station Recessed Cabinet for Eye and Body Shower

Safety Station Recessed Cabinet for Eye and Body Shower

Wall Mounted Emergency Eyewash

Wall Mounted Emergency Eyewash

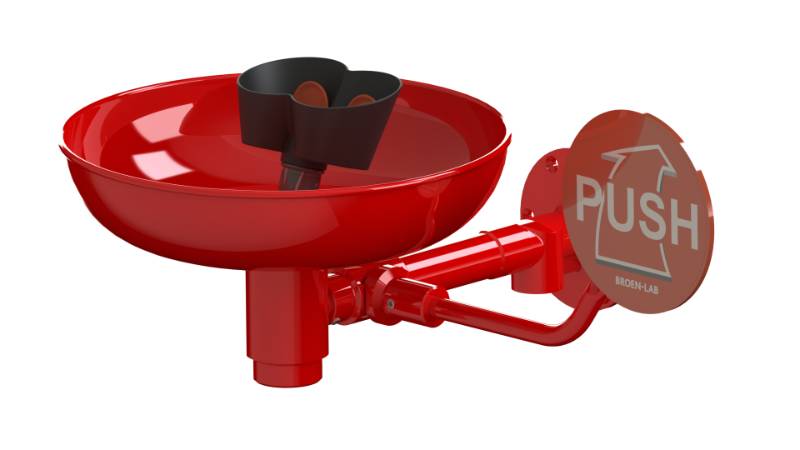

Wall Mounted Emergency Eyewash Exposed Piping
