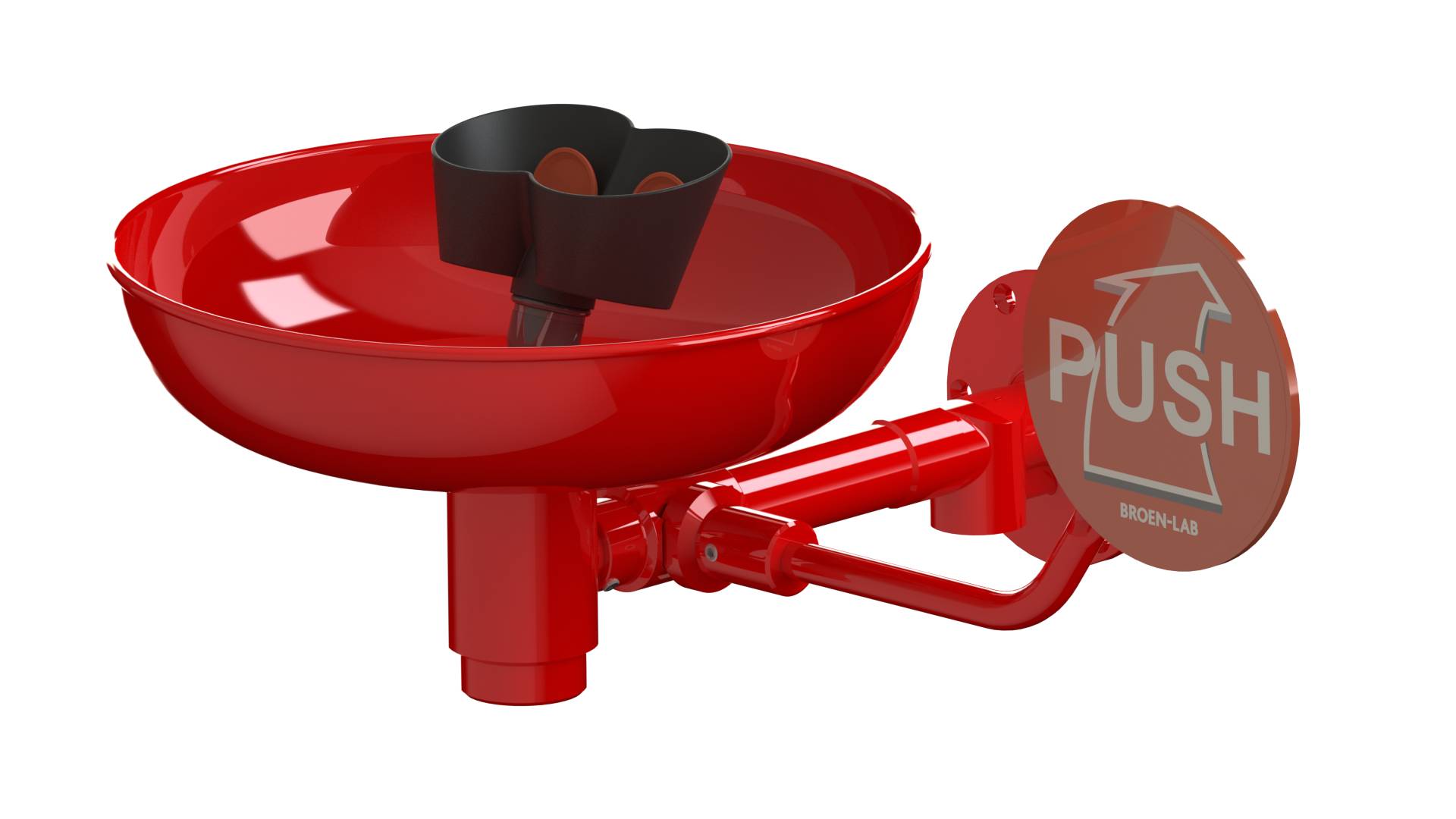

Wall Mounted Emergency Eyewash Exposed Piping
Verified by manufacturer 3 months ago
QA Certificate
Certificate type
Wall-mounted emergency eye shower/eye-wash with G3/4" female inlet, designed in accordance with BS EN 15154-1.
Application
For use where employees are at risk of harmful substances hitting their face. For use in pharma, industrial and education establishments and hospitals.
Description
Wall-mounted emergency eye shower/eye-wash with G ¾" female inlet, designed in accordance with BS EN 15154-1.
Features and benefits:
- Illuminating 3D sign, to be attached on wall, for easy and clear identification of emergency station.
- Wall-mounted instruction and test sign.
- Water flow regulated by built-in FLOWFIX, 14 L/minute.
- Also available with a ½" male inlet, or with an anti-corrosive finish (available with female or male ½" inlets).
Installation:
- If possible and based on local regulations, ensure thermostatic mixing valve for eye shower in installation, designed for delivering tepid water (20–25°C) with fail-safe on hot side i.e. 17140039.
- Safety signs must be included.
General information
Color | Red Green Yellow |
Finish | Powder-coated |
Material | Stainless steel Guidance for specification option: Bowl. Brass Guidance for specification option: Valve/ heads. |
Shape | Other |
Length | 390 mm |
Width | 274 mm |
Warranty description | Two year |
Uniclass |
Specification data - Eye-wash fountains
Units | |
Form | Circular. |
Stations | Single user. |
Water supply | Lever action eye fountains |
Operation | Manual, lever |
Materials | |
Body | Stainless steel (bowl)/ brass (valve) |
Finish and colour | Polyester powder-coated, signal redGuidance for specification option: BROEN-LAB POLYCOAT. |
Size | 390 mmGuidance for specification option: Overall depth; see manufacturer's literature for detailed dimensions. |
Weight | 4.5 kg (approx.) |
Product Reference | Wall Mounted Emergency Eyewash, Exposed Piping |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | Denmark |
Material | Stainless steel Guidance for specification option: Bowl. Brass Guidance for specification option: Valve/ heads. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
QA Certificate
ISO9001
Literature
BROEN-LAB UNIFLEX FITTINGS FOR WATER
Broen-Lab Emergency Shower Systems
