Vieo Warm Wall SFS HRB - Aluminium Sheet - Insulated Standing Seam Wall System
Verified by manufacturer 17 hours ago

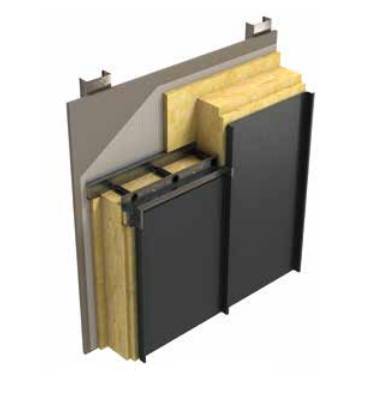

Vieo Warm Wall SFS HRB is a warm wall system designed to be fixed back to an SFS build-up with associated board products by others, with tophats, RocSlab insulation and stainless steel through-fixing.
Application
Designed for use on steel frame structure (SFS) and associated board products.
Suitable for a wide range of building applications, such as residential, commercial and public buildings.
Description
Vieo Warm Wall SFS HRB is a warm wall system designed to be fixed back to an SFS build-up with associated board products by others, with tophats, RocSlab insulation and stainless steel through-fixings.
Features and benefits:
- Vieo systems are available in straight, curved and tapered sheet options, enabling creation of creative architectural forms.
- Vieo sheets are available in variable widths allowing for feature band design.
- Vieo wall sheets can be installed vertically or horizontally as standard.
- Simple, guaranteed alternative to traditional systems.
- Can be applied to roof and walls (roofs specified separately).
- Hidden fixings for a clean, attractive finish.
- Fast construction aided by the pre-punched Euroclad RocBar.
- External sheets can be factory manufactured or produced on-site using specialist mobile equipment.
- Can be used to contribute to Passivhaus standards.
- External sheet available in a range of coatings and colours.
A steel sheet, self-supporting system is also available, specified separately.
General information
Color | Gold Grey Black Blue Red |
Finish | Coated Matt Smooth PVdF |
Material | Aluminium Mineral wool |
Shape | Other Guidance for specification option: Sinusoidal. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: A Vieo system guarantee is available for up to 25 years; consult manufacturer for details. |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal profiled sheet self-supporting cladding/ roof covering |
Specification data - Aluminium sheet fully supported wall-covering systems
Classification data | |
System performance | Guidance for specification option: Insert requirements. Manufacturer guidanceReaction to fire to BS EN 13501-1:2018 (inc. BS EN ISO 11925-2:2020 + BS EN 13823:2020): Classification on component basis only, see individual component guidance or consult manufacturer for details. |
Membrane | Not applicable for this Vieo System. A sacrificial breather membrane may be specified as desired to protect the SFS prior to installation of the Vieo System. Guidance for specification option: In such cases that a breather membrane is required, a suitable product should be specified by the relevant parties for the SFS and associated board products. Insert further details or omit as required. |
Insulation | RocSlab 115 mm with RocSlab25 and RocSlab50. Guidance for specification option: System depth: 219.1 mm. System weight: 31.78 kg/m². U-value from calculation: 0.24 W/m²K. RocSlab 150 mm with RocSlab25 and RocSlab50. Guidance for specification option: System depth: 254.1 mm. System weight: 36.10 kg/m². U-value from calculation: 0.20 W/m²K. RocSlab 170 mm with RocSlab25 and RocSlab50. Guidance for specification option: System depth: 274.1 mm. System weight: 38.54 kg/m². U-value from calculation: 0.18 W/m²K. RocSlab 205 mm with RocSlab25 and RocSlab50. Guidance for specification option: System depth: 309.1 mm. System weight: 42.85 kg/m². U-value from calculation: 0.16 W/m²K. Manufacturer guidanceInsulation lambda claim - thermal: 0.036 W/m·K. RocSlab25 between RocBars. RocSlab50 between tophats. |
Air and vapour control layer | Euroclad B VCL. Guidance for specification option: Sealing: Euroclad VCL Sealing Tape. Euroclad A2 VCL. Guidance for specification option: Sealing: Euroclad A2 VCL Sealing Tape. |
Substrate | Designed to be fixed back to an SFS build-up with associated board products by others. Guidance for specification option: Consult manufacturer for details. |
Cavity barriers | |
Horizontal | Not required for this Vieo System. If desired, specification and detailing principles should be sought from the cavity barrier supplier. Guidance for specification option: Insert further details or omit cavity barrier requirements as applicable. |
Vertical | Not required for this Vieo System. If desired, specification and detailing principles should be sought from the cavity barrier supplier. Guidance for specification option: Insert further details or omit cavity barrier requirements as applicable. |

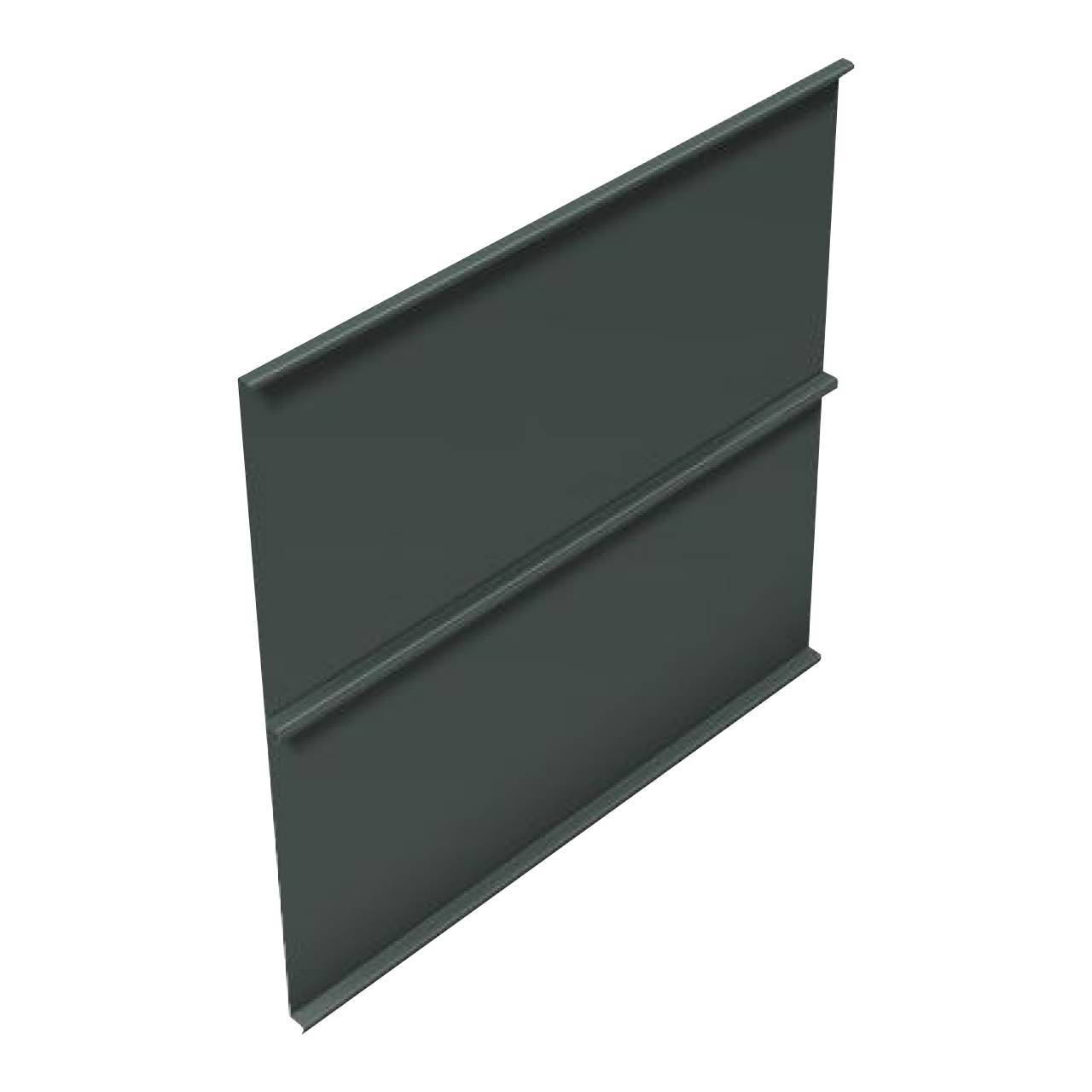

Aluminium sheets | 0.90 mm 3105 aluminium alloy. 0.90 mm 3004 aluminium alloy. |
Vertical joints | |
Form | Manufacturer's standard, |
Fasteners to substrate | Stainless steel fixings (Vieo sliding clips and Vieo clip fixings). Guidance for specification option:
|
Head detail | |
Form | Vieo Closures. Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018. |
Bottom edge detail | |
Form | Vieo Closures. Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018. |
Abutments | |
Form | Vieo Closures. Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018. |
System accessories | Euroclad Separation Tape. None. |
Colour/ Finish | Arconic PVDF. Guidance for specification option:
Arconic Polyester Polyamide (ARS). Guidance for specification option:
Arconic Duragloss 5000. Guidance for specification option:
|
System depth | Manufacturer's standard. Guidance for specification option: Dependent on insulation thickness; see Thermal insulation guidance for details. |
Weight | Manufacturer's standard. Guidance for specification option: Dependent on insulation thickness; see Thermal insulation guidance for details. |
Orientation | Vertical. |
Spacers | Euroclad RocBar. Manufacturer guidanceRocSlab25 insulation between bars; see Thermal insulation. |
Sustainability data
Material | Aluminium Mineral wool |
Literature
Vieo Wall and Roof Brochure
Similar products from Euroclad Group Ltd
Vieo Cold Wall TD - Aluminium Sheet - Standing Seam Wall Covering System

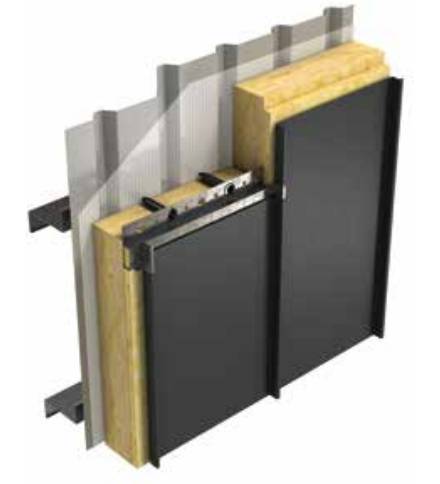

Vieo Warm Wall MW5 - Aluminium Sheet - Insulated Standing Seam Wall System
Vieo Warm Wall MW5 HRB - Aluminium Sheet - Insulated Standing Seam Wall System

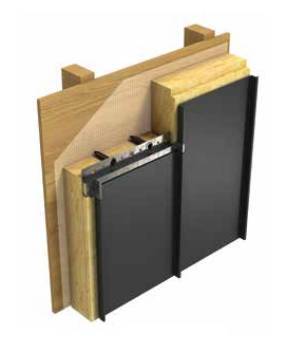

Vieo Warm Wall TD - Aluminium Sheet - Insulated Standing Seam Wall System
