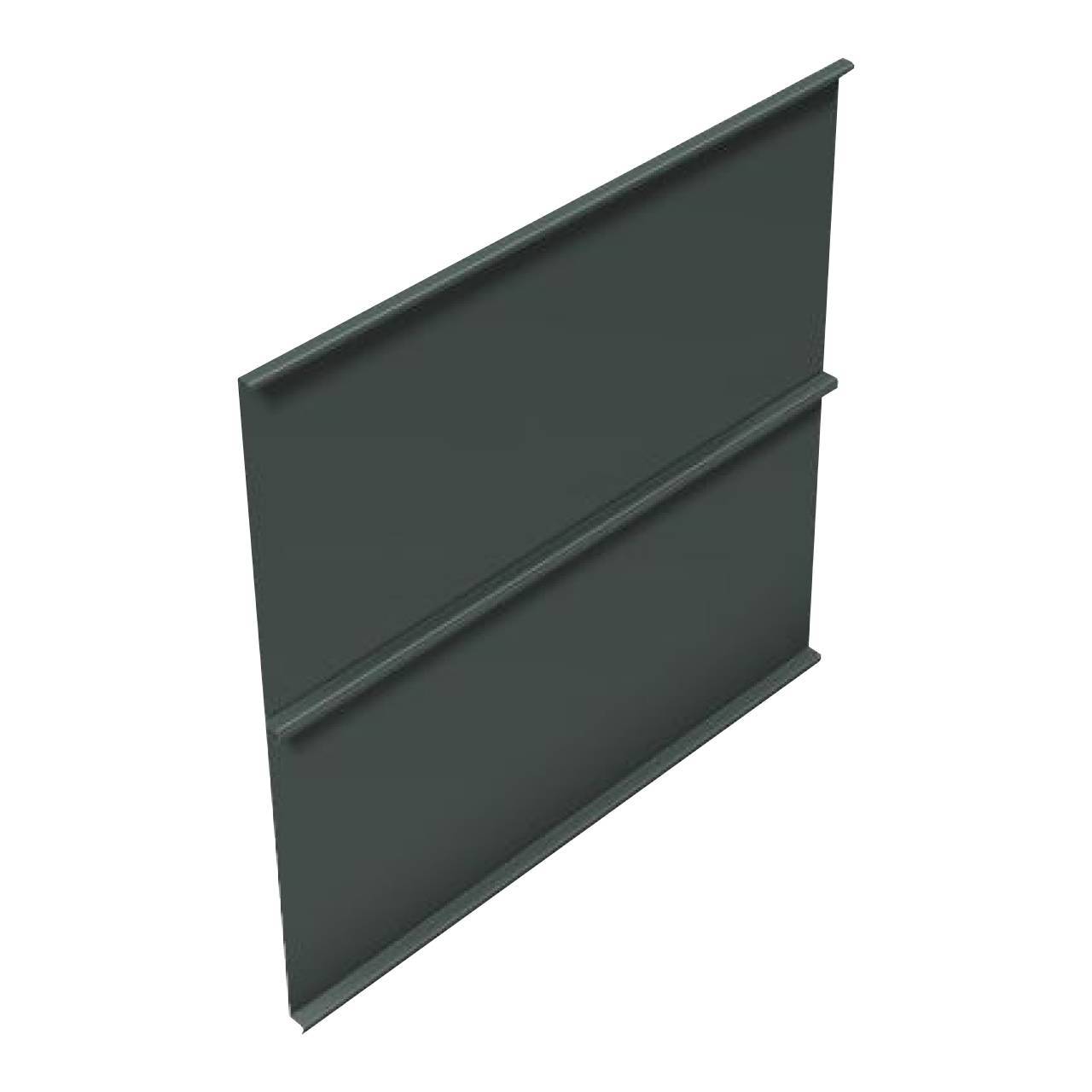

Vieo Cold Wall TD - Aluminium Sheet - Standing Seam Wall Covering System
Verified by manufacturer 22 days ago
Vieo Cold Wall TD is a cold wall system designed for use with a Timber Deck substrate as a support structure.
Application
Vieo Cold Wall TD is a cold wall system designed for use with a Timber Deck substrate as a support structure.

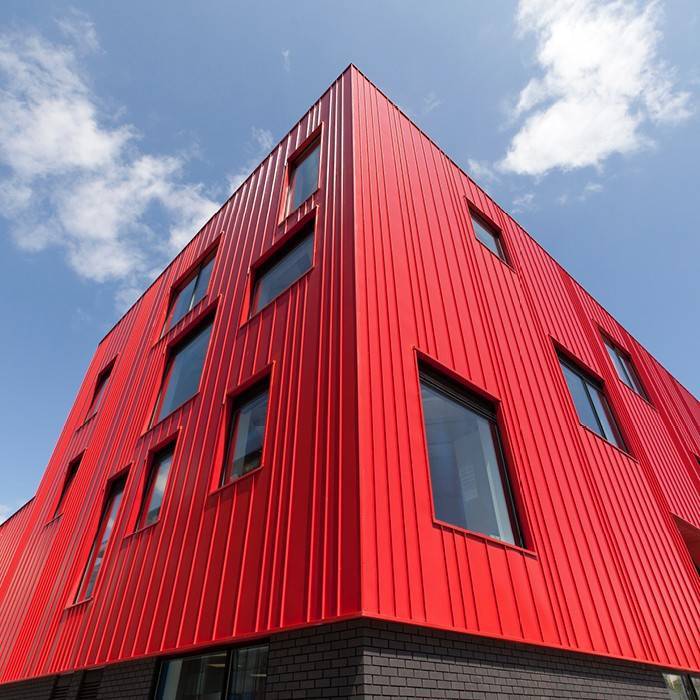

Suitable for a wide range of building applications, such as residential, commercial and public buildings.
Description
Vieo Cold Wall TD is a cold wall system designed for use with a Timber Deck substrate as a support structure.
Features and benefits:
- Vieo systems are available in straight, curved and tapered sheet options, enabling creation of creative architectural forms.
- Vieo sheets are available in variable widths allowing for feature band design.
- Vieo wall sheets can be installed vertically or horizontally as standard.
- Simple, guaranteed alternative to traditional systems.
- Can be applied to roof and walls (roofs specified separately).
- Hidden fixings for a clean, attractive finish.
- Fast construction aided by the pre-punched Euroclad RocBar.
- External sheets can be factory manufactured or produced on-site using specialist mobile equipment.
- External sheet available in a range of coatings and colours.
A steel sheet, self-supporting system is also available, specified separately.
Matching roof systems and warm wall systems and also available, specified separately.
General information
Color | Gold Grey Black Blue Red |
Finish | Coated Matt Smooth PVdF |
Material | Aluminium |
Shape | Other Guidance for specification option: Sinusoidal. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: A Vieo system guarantee is available for up to 25 years; consult manufacturer for details. |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal profiled sheet self-supporting cladding/ roof covering |
Specification data - Aluminium sheet fully supported wall-covering systems
Classification data | |
System performance | Guidance for specification option: Insert requirements. Manufacturer guidanceReaction to fire to BS EN 13501-1:2018 (inc. BS EN ISO 11925-2:2020 + BS EN 13823:2020): Classification on component basis only, see individual component guidance or consult manufacturer for details. |
Membrane | Euroclad B Breather Membrane. Guidance for specification option: Joint sealant: manufacturer's standard. |
Insulation | Not applicable. |
Cavity barriers | |
Horizontal | Not required for this Vieo System. If desired, specification and detailing principles should be sought from the cavity barrier supplier. Guidance for specification option: Insert further details or omit cavity barrier requirements as applicable. |
Vertical | Not required for this Vieo System. If desired, specification and detailing principles should be sought from the cavity barrier supplier. Guidance for specification option: Insert further details or omit cavity barrier requirements as applicable. |
Aluminium sheets | 0.90 mm 3105 aluminium alloy. 0.90 mm 3004 aluminium alloy. |
Vertical joints | |
Fasteners to substrate | Stainless steel fixings (Vieo sliding clips and Vieo clip fixings). Guidance for specification option:
|
Head detail | |
Form | Vieo Closures. Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018. |
Bottom edge detail | |
Form | Vieo Closures. Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018. |
Abutments | |
Form | Vieo Closures. Guidance for specification option: For completion of detailing and ends and edges of Vieo sheets. Aluminium, Class A1 to BS EN 13501-1:2018. |
System accessories | Euroclad Separation Tape. None. |
Colour/ Finish | Arconic PVDF. Guidance for specification option:
Arconic Polyester Polyamide (ARS). Guidance for specification option:
Arconic Duragloss 5000. Guidance for specification option:
|
System depth | 29.06 mm. |
Weight | 3.27 kg/m². |
Orientation | Vertical. Horizontal. |
Sheet width | Cover width: 454 mm. Guidance for specification option: As standard. Can also be supplied in variable widths to give a concertina-style effect (on request). |
Sustainability data
Material | Aluminium |
Literature
Vieo Wall and Roof Brochure
