Vieo Warm Wall MW5 - Aluminium Sheet - Insulated Standing Seam Wall System

Verified by manufacturer 22 days ago

Euroclad Group Ltd

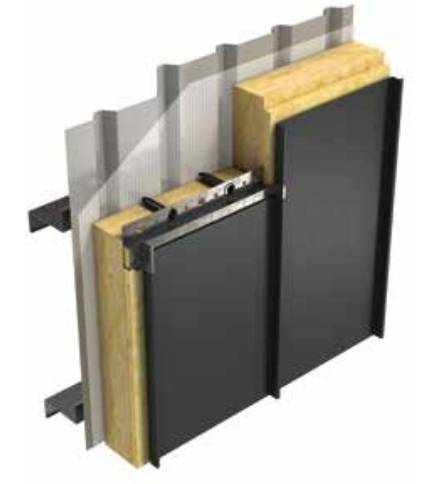

Vieo Warm Wall MW5 is a warm wall system designed to use our MW5 steel liner profile as a substrate, with RocSlab insulation and our RocTubes.

Jump to:
Request BIM
+44 (0)2922 010101 Website

Application

Designed for use on steel framed buildings.

Suitable for a wide range of building applications, such as for use with residential, commercial and public buildings.

Description

Vieo Warm Wall MW5 is a warm wall system designed to use our MW5 steel liner profile as a substrate, with RocSlab insulation and our RocTubes.

Features and benefits:

  • Vieo systems are available in straight, curved and tapered sheet options, enabling creation of creative architectural forms.
  • Vieo sheets are available in variable widths allowing for feature band design.
  • Vieo wall sheets can be installed vertically or horizontally as standard.
  • Simple, guaranteed alternative to traditional systems.
  • Can be applied to roof and walls (roofs specified separately).
  • Hidden fixings for a clean, attractive finish.
  • Fast construction aided by the pre-punched Euroclad RocBar.
  • External sheets can be manufactured in our factory and supplied, or produced on-site using specialist mobile equipment.
  • Can be used to contribute to Passivhaus standards.
  • External 0.9 mm aluminium sheet is available in a range of coatings and colours.

A steel sheet, self-supporting system is also available, specified separately.

Matching roof systems and cold wall systems and also available, specified separately.

General information

Color

Gold

Grey

Black

Blue

Red

Finish

Coated

Matt

Smooth

PVdF

Material

Aluminium

Mineral wool

Shape

Other

Guidance for specification option:

Sinusoidal.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Guidance for specification option:

A Vieo system guarantee is available for up to 25 years; consult manufacturer for details.

Uniclass

Ss_25_20_50_05 Aluminium sheet fully supported wall-covering systemsPrimary

CAWS

H31/10 Metal

H31/120 Metal profiled sheet self-supporting cladding/ roof covering

Specification data - Aluminium sheet fully supported wall-covering systems

Classification data

System performance

Guidance for specification option:

Insert requirements.

Manufacturer guidance

Reaction to fire to BS EN 13501-1:2018 (inc. BS EN ISO 11925-2:2020 + BS EN 13823:2020):

Classification on component basis only, see individual component guidance or consult manufacturer for details.

Insulation

RocSlab 50 mm and RocSlab25.

Guidance for specification option:

System depth: 136.1 mm.

System weight: 24.68 kg/m².

U-value from calculation: NPD.

RocSlab 50 mm + 50 mm and RocSlab25.

Guidance for specification option:

System depth: 186.1 mm.

System weight: 31.75 kg/m².

U-value from calculation: NPD.

RocSlab 115 mm and RocSlab25.

Guidance for specification option:

System depth: 201.1 mm.

System weight: 31.78 kg/m².

U-value from calculation: 0.25 W/m²K.

RocSlab 150 mm and RocSlab25.

Guidance for specification option:

System depth: 236.1 mm.

System weight: 36.10 kg/m².

U-value from calculation: 0.20 W/m²K.

RocSlab 50 mm + 115 mm and RocSlab25.

Guidance for specification option:

System depth: 251.1 mm.

System weight: 38.83 kg/m².

U-value from calculation: 0.20 W/m²K.

RocSlab 170 mm and RocSlab25.

Guidance for specification option:

System depth: 256.1 mm.

System weight: 38.54 kg/m².

U-value from calculation: 0.18 W/m²K.

RocSlab 50 mm + 150 mm and RocSlab25.

Guidance for specification option:

System depth: 286.1 mm.

System weight: 43.15 kg/m².

U-value from calculation: 0.16 W/m²K.

RocSlab 205 mm and RocSlab25.

Guidance for specification option:

System depth: 291.1 mm.

System weight: 42.85 kg/m².

U-value from calculation: 0.16 W/m²K.

RocSlab 50 mm + 170 mm and RocSlab25.

Guidance for specification option:

System depth: 306.1 mm.

System weight: 45.62 kg/m².

U-value from calculation: 0.15 W/m²K.

RocSlab 115 mm + 115 mm and RocSlab25.

Guidance for specification option:

System depth: 316.1 mm.

System weight: 45.93 kg/m².

U-value from calculation: 0.15 W/m²K.

RocSlab 50 mm + 205 mm and RocSlab25.

Guidance for specification option:

System depth: 341.1 mm.

System weight: 49.91 kg/m².

U-value from calculation: 0.13 W/m²K.

RocSlab 115 mm + 150 mm and RocSlab25.

Guidance for specification option:

System depth: 351.1 mm.

System weight: 50.24 kg/m².

U-value from calculation: 0.13 W/m²K.

RocSlab 115 mm + 170 mm and RocSlab25.

Guidance for specification option:

System depth: 337.1 mm.

System weight: 52.72 kg/m².

U-value from calculation: 0.12 W/m²K.

RocSlab 150 mm + 150 mm and RocSlab25.

Guidance for specification option:

System depth: 386.1 mm.

System weight: 54.60 kg/m².

U-value from calculation: 0.12 W/m²K.

RocSlab 150 mm + 170 mm and RocSlab25.

Guidance for specification option:

System depth: 406.1 mm.

System weight: 57.07 kg/m².

U-value from calculation: 0.11 W/m²K.

RocSlab 115 mm + 205 mm and RocSlab25.

Guidance for specification option:

System depth: 406.1 mm.

System weight: 57.07 kg/m².

U-value from calculation: 0.11 W/m²K.

RocSlab 170 mm + 170 mm and RocSlab25.

Guidance for specification option:

System depth: 426.1 mm.

System weight: 59.55 kg/m².

U-value from calculation: 0.11 W/m²K.

RocSlab 150 mm + 205 mm and RocSlab25.

Guidance for specification option:

System depth: 441.1 mm.

System weight: 61.51 kg/m².

U-value from calculation: 0.10 W/m²K.

RocSlab 170 mm + 205 mm and RocSlab25.

Guidance for specification option:

System depth: 461.1 mm.

System weight: 63.98 kg/m².

U-value from calculation: 0.10 W/m²K.

Manufacturer guidance

Insulation lambda claim - thermal: 0.036 W/m·K.

25 mm-thick RocSlab between RocBars.

Air and vapour control layer

Euroclad B VCL.

Guidance for specification option:

Sealing: Euroclad VCL Sealing Tape.

Euroclad A2 VCL.

Guidance for specification option:

Sealing: Euroclad A2 VCL Sealing Tape.

Substrate

Designed to use with Euroclad's MW5 steel liner profile.

Guidance for specification option:

Consult manufacturer for details.

Cavity barriers

-

Horizontal

Not required for this Vieo System.
If desired, specification and detailing principles should be sought from the cavity barrier supplier.

Guidance for specification option:

Insert further details or omit cavity barrier requirements as applicable.

Vertical

Not required for this Vieo System.
If desired, specification and detailing principles should be sought from the cavity barrier supplier.

Guidance for specification option:

Insert further details or omit cavity barrier requirements as applicable.

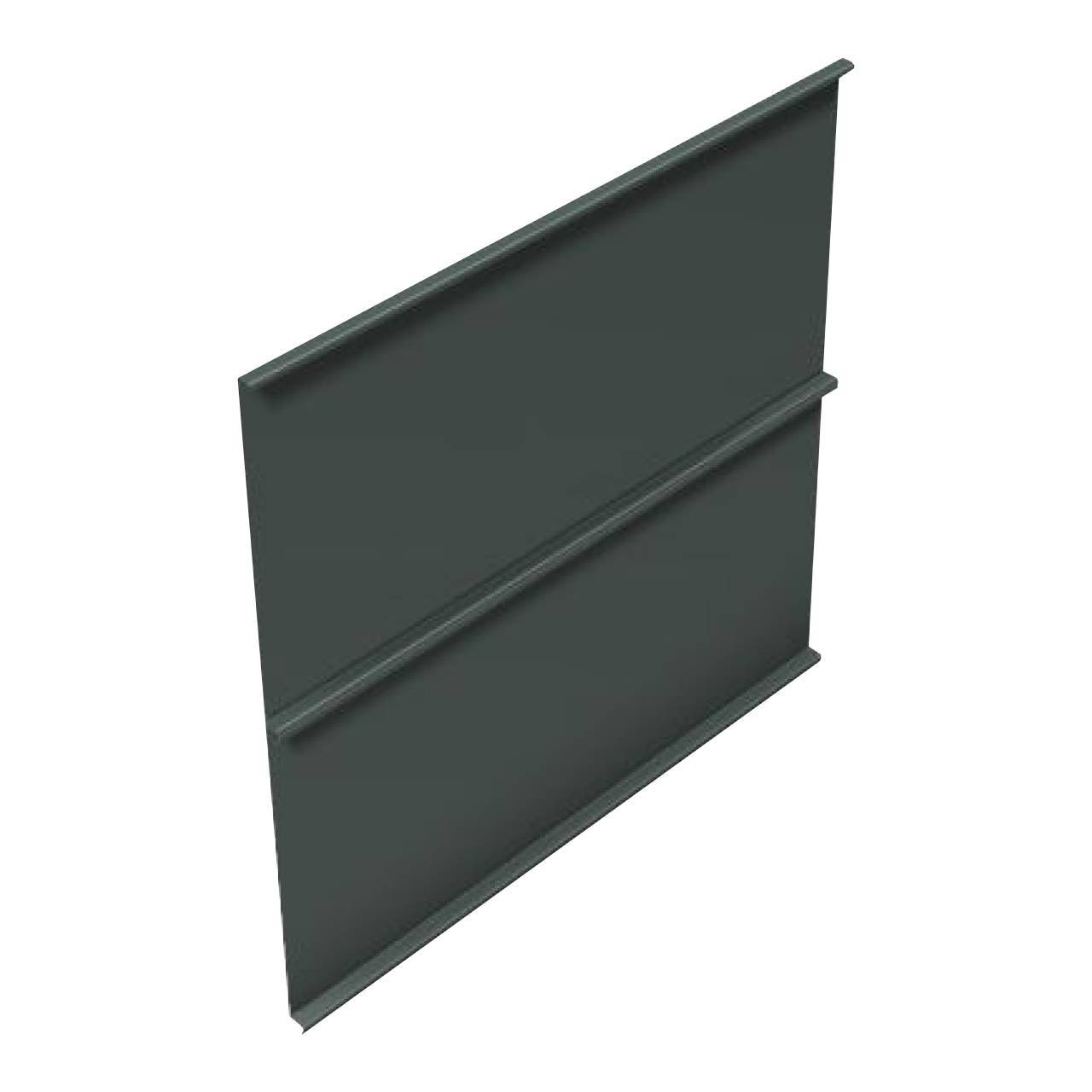

Aluminium sheets

0.90 mm 3105 aluminium alloy.
0.90 mm 3004 aluminium alloy.

Vertical joints

-

Form

Manufacturer's standard.

Fasteners to substrate

Stainless steel fixings (Vieo sliding clips and Vieo clip fixings).

Guidance for specification option:

  • Vieo sliding clips are for attachment of Vieo sheets; Vieo clip fixings are for attachment of Vieo sliding clips to various substrates.
  • Both are Class A1 to BS EN 13501-1:2018.

Head detail

-

Form

Vieo Closures.

Guidance for specification option:

Consult manufacturer for details.

Bottom edge detail

-

Form

Vieo Closures.

Guidance for specification option:

Consult manufacturer for details.

Abutments

-

Form

Vieo Closures.

Guidance for specification option:

Consult manufacturer for details.

System accessories

Euroclad Separation Tape.

Liner sheets

EC 32-200-1000 Liner MW5 Deck Swaged.

Manufacturer guidance

0.70 mm steel as standard.

Primary fasteners/ end and side laps: manufacturer's standard.

Colour/ Finish

Arconic PVDF.

Guidance for specification option:

  • To BS EN 13501-1:2018: A1 (RA22-0049).
  • To BS EN 13501-5:2016: BROOF(T4) (Commission Decision 2000/553/EC).

Arconic Polyester Polyamide (ARS).

Guidance for specification option:

  • To BS EN 13501-1:2018: A1 (RA21-0210).
  • To BS EN 13501-5:2016: BROOF(T4) (Commission Decision 2000/553/EC).

Arconic Duragloss 5000.

Guidance for specification option:

  • To BS EN 13501-1:2018: A1 (RA21-0210).
  • To BS EN 13501-5:2016: BROOF(T4) (Commission Decision 2000/553/EC).

System depth

Manufacturer's standard.

Guidance for specification option:

Dependent on U-value requirement; see Thermal insulation guidance for details.

Weight

Manufacturer's standard.

Guidance for specification option:

Dependent on U-value requirement; see Thermal insulation guidance for details.

Orientation

Horizontal.

Sheet width

Cover width: 454 mm.

Guidance for specification option:

As standard.

Can also be supplied in variable widths to give a concertina-style effect (on request).

Spacers

Euroclad RocBar.

Manufacturer guidance

RocSlab25 insulation between bars; see Thermal insulation.
