Unidrain 1004 Wall Mounted Floor Drain

Application

Suitable for POD manufacturing, traditional builds, residential and commercial applications.

Description

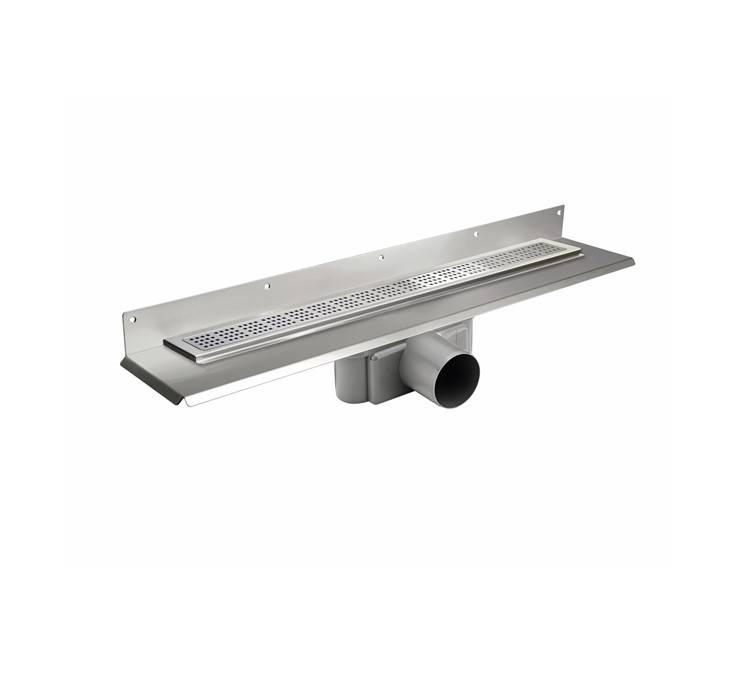

Wall mounted stainless steel linear drain fixed to wall for a secure installation and to allow for a one way fall. Suitable any floor build-up. Shallow installation depth from 64mm. For larger sizes, please contact manufacturer.


Features and benefits:

  • Full range of sizes.
  • Bespoke service.

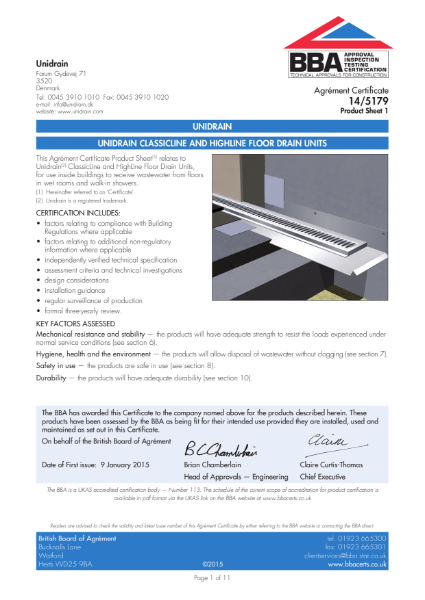

  • BBA Approved, pressed stainlesssteel drain with internal drainage slope built in.
  • Large flanges for secure membrane bond.
  • Polypropene outlets with built in BS compliant traps.
  • Range of outlets to drain from 32–102 L/minute.
  • Low profile from 64 mm and vertical outlets available.
  • Interchangeable stainless steel grates, panels, and tiled covers.
  • PVD coloured panels.

General information

Color

Black

Copper

Silver

Gold

Finish

Tile Insert available

Brushed

PVD

Polished

Material

Stainless steel

Shape

Rectangle

Size

Range of Sizes:


Model no: 300 structural length: 432mm

Model no: 700 structural length: 812mm

Model no: 800 structural length: 912mm

Model no: 900 structural length: 1012mm

Model no: 1000 structural length: 1112mm

Model no: 1200 structural length: 1312mm

Model no: 1400 structural length: 1509mm

Model no: 1600 structural length: 1709mm

Model no: 1800 structural length: 1909mm

-

Length

Bespoke

Width

Bespoke

Height

Bespoke

WarrantyDescription

Ten year

Uniclass

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

N13/377 Wet room showers

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies Enhanced data

Standard

To BS EN 1253-1. To BS EN 1253-2.

Body

-

Configuration

P-trapped.

S-trapped.

Material

Stainless steel.

Cover or grating

-

Cover or grating type

Anniversario grate and frame.

Classic grate and frame.

Column grate and frame.

Inca grate and frame.

Stripe grate and frame.

Highline cassette and frame.

Highline custom.

Highline panel and frame.

Material

Stainless steel.

Finish

Brushed.

PVD.

Polished.

Tiled.

Outlet

Horizontal, low profile.

Horizontal, standard outlet.

Execution

Installing gullies

Dimensions

Available in a range of sizes. Consult manufacturer and insert requirements.

-
