Type USV Universal Soffit Ventilator

Verified by manufacturer 4 months ago

Cavity Trays Ltd

A preformed strip ventilator with integrated insect screen, for use at soffit level.

Jump to:
+44 (0)1935 474769 Website

Application

For use at soffit level in existing and new thatched roof structures.

Description

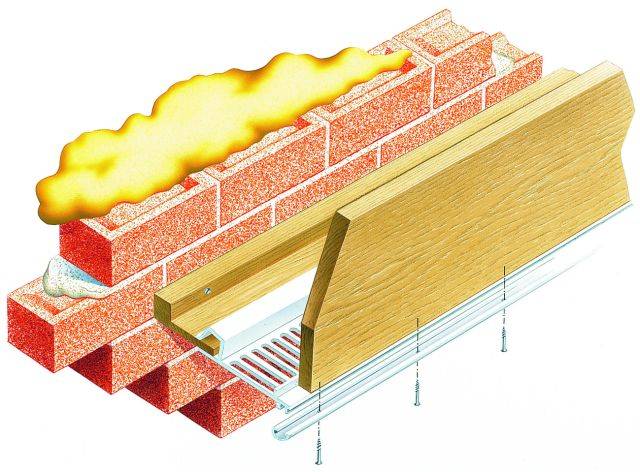

A self-coloured, corrosion proof construction incorporating insect screen, suitable for upgrade of existing structures, using hidden screw fixing with a cover moulding.


Features and benefits:

  • Easy upgrade of existing structures.
  • Available in white, brown or black.
  • 2400 mm lengths, pre-drilled.
  • Airflow rating: 12 500 mm² per metre run.
  • Satisfies BRE guide (GBG 32, July 1999) recommendations for additional soffit ventilation where roofs are re-thatched or internal insulation levels upgraded.

General information

Color

White

Brown

Finish

Acrylic

Material

PVC-U

UV stabilised polymer, unplasticized polyvinyl chloride (PVC-U) compound.

Shape

Rectangle

Length

2400 mm

Width

61 mm

Height

20 mm

Warranty description

20 year

Uniclass

Pr_30_59_94_78 Soffit grillesPrimary

CAWS

G20/900 Eaves soffit ventilators

G20/97 Eaves soffit ventilators

Specification data - Soffit grilles

Style

Continuous strip.

Ventilation opening

12 500 mm².

Colour

White.

Brown.

Black.

Equivalent continuous eaves airway

10 mm.

25 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Yes

Recycled content

100 %
