Type CSV Circular Soffit Ventilator
Verified by manufacturer 8 months ago

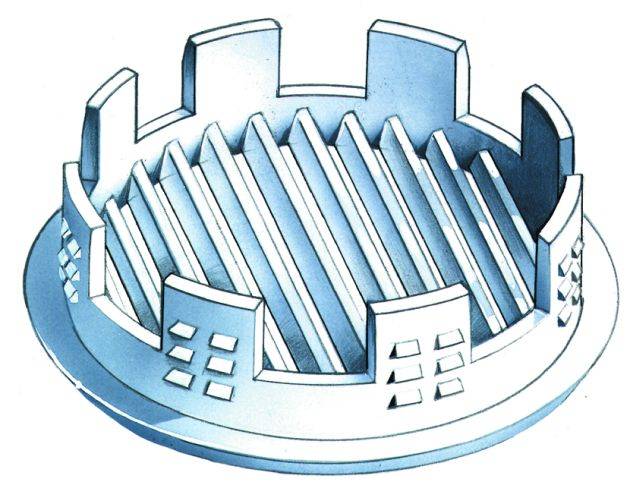

A circular louvered soffit ventilator.
Application
Suitable for new, existing and refurbishment works.
Description
A circular ventilator incorporating bird and insect resistant standard flat grilles. Integral moulded clips secure the ventilator into soffit boards from 4 mm up to 25 mm thickness.
Features and Benefits:
- Circular louvered grille rotates for visual or non-visual appearance.
- Bird and insect resistant grille.
- UV-stabilized polypropylene.
General information
Color | White Brown Black |
Finish | Other |
Material | Polypropylene Guidance for specification option: UV-stabilised. |
Shape | Circle |
Size | Guidance for specification option: Internal diameter 70 mm - requires 70 mm hole. |
Length | 79 mm |
Width | 70 mm |
Height | 15 mm |
Uniclass | |
CAWS | G20/900 Eaves soffit ventilators G20/97 Eaves soffit ventilators |
Specification data - Soffit grilles
Style | Continuous strip. |
Ventilation opening | 2100 mm²/m. |
Colour | White.Brown.Black. |
Equivalent continuous eaves airway | 10 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
