Type RASV - Reversible angled soffit ventilator strip

Verified by manufacturer 4 months ago

Cavity Trays Ltd

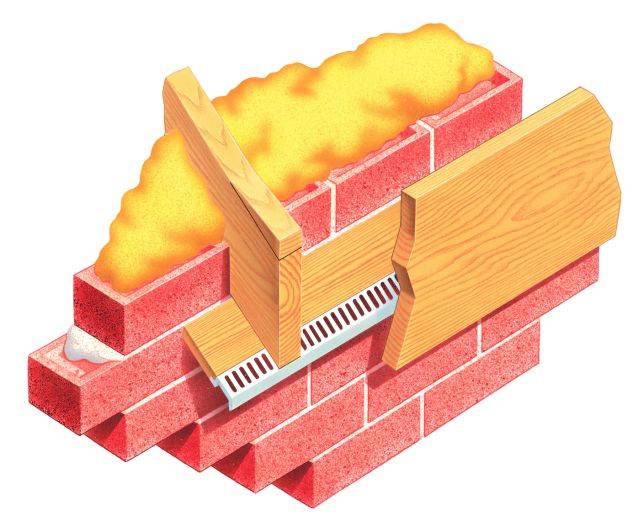

An angled soffit ventilator for use with horizontal and sloping soffits. Integral insect screening.

Jump to:
+44 (0)1935 474769 Website

Application

  • Designed for use with a standard horizontal or sloping soffit boards on roof pitches of 15 degrees or above.
  • For use on new, existing and refurbishment works.

Description

An angled soffit ventilator for use with horizontal and sloping soffits.


Features and benefits:

  • Reversible profile.
  • Self-coloured.
  • Corrosion proof construction incorporating integral insect screen.
  • Free airflow: 10 000 mm² per metre run.

General information

Color

White

Brown

Material

PVC-U

UV stabilised polymer, un-plasticized polyvinyl chloride (PVC-U) compound.

Length

2400 mm

Width

64 mm

Height

10000 mm

Uniclass

Pr_30_59_94_78 Soffit grillesPrimary

CAWS

G20/900 Eaves soffit ventilators

G20/97 Eaves soffit ventilators

Specification data - Soffit grilles

Ventilation opening

10 000 mm².

Free airflow per metre run. (Equivalent to 10 mm continuous gap, when installed along whole length of the soffit).

Colour

White.

Brown.
