Type DIP Vertical Damp Proof Course
Verified by manufacturer 8 months ago
Insulated vertical DPC that interfaces with cavity insulation.
Application
For use when closing cavity walls in the traditional manner.
Description

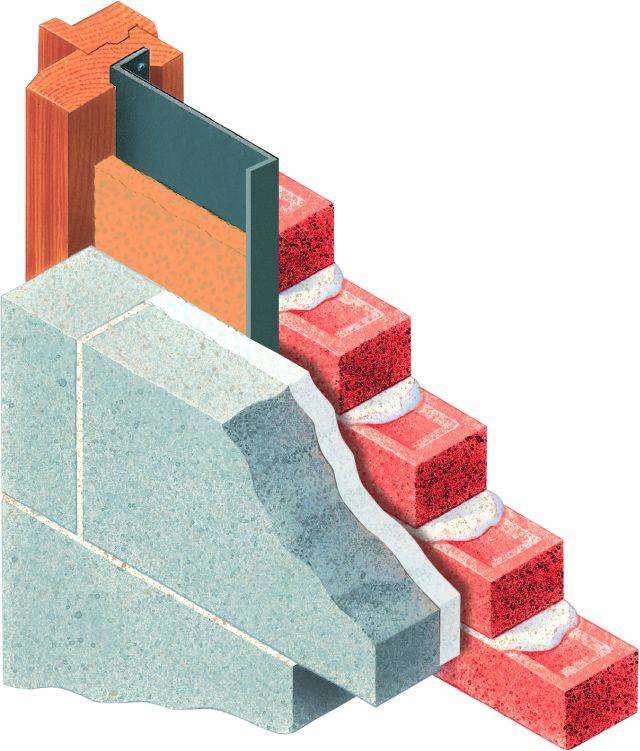

A vertical profiled damp proof course with integral expanded polystyrene insulation, introducing a thermal break within the cavity wall reveal.
Features and benefits:
- Integrated profile laps cavity insulation – overlaying inconsistent cutting/ gaps.
- A moulded angle for accurate positioning.
- Width extends into and overlays cavity insulation, eliminating any thermal spiking.
- Can be attached to rear of built-in frames.
- When not attached to frames the DPC has rigidity and is self-supporting.
- Standard size/ profile: 245 mm wide DPC profiled to produce 20 mm 90° return, 200 mm wide flat and 25 mm splayed end.
- Non-standard, purpose-made profiles are available to order.
General information
Color | Black Guidance for specification option: Polyethylene. White Guidance for specification option: Polystyrene insulation. |
Finish | Textured |
Material | Polyethylene Guidance for specification option: Stabilized DPC polyethylene. Polystyrene Guidance for specification option: Expanded polystyrene insulation to BS 3837. |
Shape | Rectangle |
Size | Guidance for specification option: 2400 mm standard length. |
Length | 2400 mm |
Width | 170 mm |
Height | 25 mm |
Uniclass | |
CAWS | F30/180 Cavity closers |
Specification data - Plastics cavity closers
Accessories | Integral insulation. |
To fit cavity width | Guidance for specification option: Profiles available to suit all cavity dimensions. |
Length (effective) | 2400 mm. |
Execution | Installing vertical dpcs generally. |
Thickness | 1.5 mm. Guidance for specification option: DPC polyethylene. |
Thickness | 25 mm. Guidance for specification option: Standard thickness - Expanded polystyrene insulation to BS 3837. 50 mm. Guidance for specification option: Insulation also available in 50 mm thickness. |
ThermalConductivity | 0.033–0.038 W/m·K. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)
