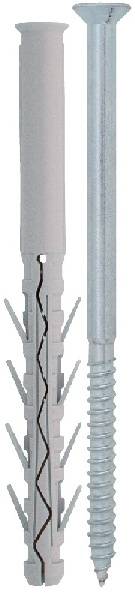

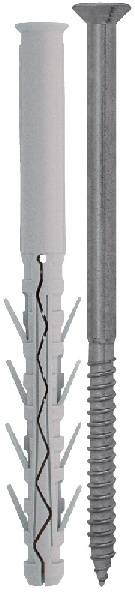

TUP4 Long Nylon High Expansion Plug with Pozi or Torx Screw
Verified by manufacturer 6 months ago
8 mm diameter, Pozidriv head
8 mm diameter, Pozidriv head
Range of countersunk, coated steel screws with Pozidriv or Torx head, with matched long Nylon plugs.
Application
Suitable for connections into:
- Concrete.
- Honeycomb brick/ lightweight honeycomb brick.
- Solid stone.
- Solid brick.
- Aerated concrete.
Partially suitable for connections into:
- Hollow light aggregate block.
- Cell-like clay brick.
- Hollow dense aggregate block.
Description
Range of countersunk, coated steel screws with Pozidriv or Torx head, with matched long Nylon plugs.
Features and benefits:
- Screws are white zinc-plated.
- Range of lengths and diameters.
- Suitable for use in a range of solid or hollow substrates.
- Torx heads screws also available in stainless steel and hex head screws are available (all specified separately).
The use of plastic anchors is not recommended for permanent suspended loading applications above 40°C.
General information
Color | Silver |
Material | Steel Nylon |
Shape | Other |
Length | 80 mm 85 mm 100 mm 115 mm 120 mm |
Width | 8 mm 10 mm |
Uniclass | |
CAWS | Z20/340 Masonry fixings Z20/340 Masonry fixings |
Specification data - Framing fasteners
Screw material | Carbon steel, grade 5.8.Guidance for specification option: White zinc-plated ≥5 µm, to ISO 4042. |
Sleeve material | Nylon Pa6. |
Head arrangement | Countersunk; Pozidriv.Countersunk; Torx. |
Anchor length | 80 mm (64102B0808000).Guidance for specification option: Pack size: 100. 100 mm (64102B0810000).Guidance for specification option: Pack size: 50. 120 mm (64102B0812000).Guidance for specification option: Pack size: 50. |
Thread diameter | 8 mm. |
