FMZ Horizontal W/C Wall Fixing - With Hex Head Screw
Verified by manufacturer 6 months ago
Horizontal fixing for WC base.
Application
For use to attach WC pans to concrete substrates.
Description
Horizontal fixing for WC base.

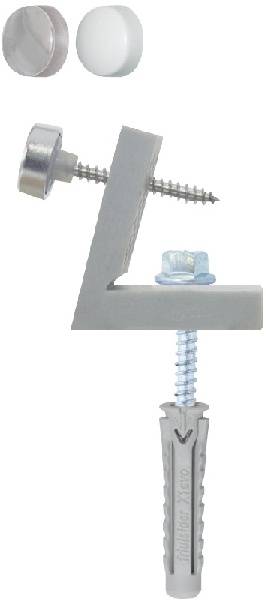

Comprises hex head steel screw with Nylon plug (into substrate) to secure angled Nylon bracket. WC is secured to the bracket via a stainless steel screw (Including Nylon bush), finished with an ABS cap.
General information
Color | Silver Grey White |
Material | Nylon Stainless steel Acrylonitrile butadiene styrene (ABS) Steel |
Shape | Circle Hexagon Other |
Length | 100 mm Guidance for specification option: Minimum hole depth (substrate). Nominal embedment length is 50 mm. |
Width | 10 mm Guidance for specification option: Hole diameter (substrate). Manufacturer guidanceBolt diameter only. |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - Framing fasteners
Screw material | Hex head wood screw (into substrate): Steel, white zinc-plated ≥5 µm to ISO 4042. |
Sleeve material | Nylon, Pa6 (hex head screw only). |
Head arrangement | Hexagon bolt (vertical bolt). |
Anchor length | 60 mm.Guidance for specification option: Both screws. Manufacturer guidancePack size: 50. |
Thread diameter | 6 mm (hex head screw). |
Integral accessories | Nylon (Pa6) bracket. |
Cover cap | ABS, white. ABS, chrome-plated. |
