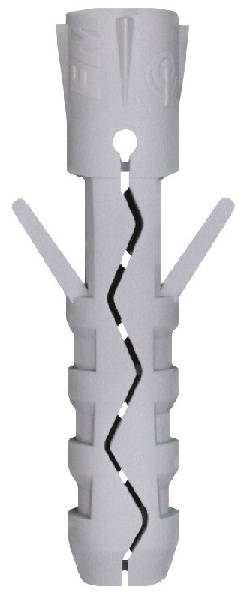

TU Rimless Nylon Plugs - Plug Only
Verified by manufacturer 6 months ago
Nylon plugs for use with 6–8 mm diameter screws.
Application
Suitable for connections into:
- Concrete.
- Solid stone.
- Solid brick.
- Aerated concrete.
Partially suitable for connections into:
- Honeycomb brick/ lightweight honeycomb brick.
- Hollow light aggregate block.
- Hollow dense aggregate block.
- Cell-like clay brick.
- Hollow concrete block.
Description
Nylon plugs for use with 6–8 mm diameter screws.
The use of plastic anchors is not recommended for permanent suspended loading applications above 40°C.
General information
Color | Grey |
Material | Nylon |
Shape | Circle |
Length | 100 mm |
Width | 14 mm |
Uniclass | |
CAWS | Z20/350 Plugs Z20/350 Plugs |
Specification data - Framing fasteners
Sleeve material | Nylon Pa6. |
Anchor length | 50 mm (6007000502500).Guidance for specification option: Pack size: 50. 50 mm (6010101005030).Guidance for specification option: Pack size: 2000. |
Thread diameter | 6–8 mm. |
Diameter | 10 mm. |
