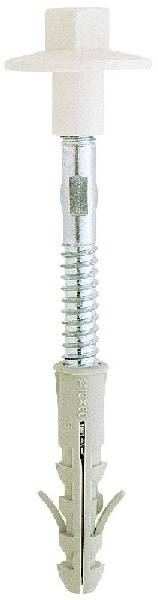

FL Wash Basin & Bidet Wall Fixing

Verified by manufacturer 6 months ago

M8, Nylon bush (FL)

Simpson Strong-Tie Variant:

Range of washbasin/ bidet wall fixings.

Jump to:
01827 255 600 Website

Application

For use as fixings for wall-mounted washbasins and bidets.

Suitable for connections into:

  • Concrete.
  • Honeycomb brick.
  • Aerated concrete.
  • Solid stone.


Partially suitable for connections into:

  • Hollow dense aggregate block.
  • Solid brick.
  • Lightweight honeycomb brick.
  • Hollow light aggregate block.


Description

Range of washbasin/ bidet wall fixings.

Available with Nylon nut or Nylon bush/ steel nut.

General information

Color

White

Guidance for specification option:

Visible nut only.

Finish

Smooth

Guidance for specification option:

Visible Nylon nut only.

Material

Nylon

Steel

Shape

Circle

Hexagon

Length

60 mm

80 mm

100 mm

110 mm

120 mm

Show more

Width

8 mm

Guidance for specification option:

M8.

10 mm

Guidance for specification option:

M10.

12 mm

Guidance for specification option:

M12.

14 mm

Guidance for specification option:

M14.

Manufacturer guidance

Bolt diameter only.

Uniclass

Pr_20_29_03_32 Framing fastenersPrimary

CAWS

N13/335 Washbasins

N13/20 Bidets

N13/30 Washbasins

N13/325 Bidets

Specification data - Framing fasteners

Screw material

Steel, white zinc-plated ≥5 µm to ISO 4042.

Sleeve material

Nylon, Pa6 (white, RAL 9010).

Head arrangement

Nylon nut, Pa6.

Anchor length

110 mm (61400B081100C).

Manufacturer guidance

Two per pack as standard.

Thread diameter

8 mm.
