Thermoguard Timbercoat Intumescent Basecoat

Verified by manufacturer 1 month ago

Thermoguard UK Ltd

Part of a fire protection upgrade system for use as an intumescent basecoat.

Jump to:
01142 768008 Website

Application

For bare and suitable multi-layer painted wood and wood derivatives.

Description

Timbercoat Intumescent 30/60 Basecoat by Thermoguard is a specialized fire-retardant paint designed for achieving fire certification of 30 and 60 minutes on various wooden surfaces including wood, plywood, MDF, and wood derivative boards.


Features and benefits:

  • Available in pack sizes of 5 kg and 20 kg.
  • In the event of a fire it expands, forming a heat-resistant char to insulate the surface overcoated with Thermoguard Safewood or Anti-Microbial SFR Smoke and Flame Retardant.
  • Good adhesion.
  • Permanent protection.
  • Tintable to undercoat shades.


Application:

  • All surfaces must be clean and dry. Remove all possible surface contaminates such as grease, smoke residues, silicates.
  • Brush and roller applied using woven fabric roller sleeves, synthetic bristle brushes or spray applied using a pressure pot and gun conventional unit with small compressor.
  • Abrade hard or smooth surfaces with wetted 120 grit wet-or dry abrasive or dust extracting abrader. Rinse off slurry while still damp. When dry, remove any loose or suspect material back to firm edge.
  • Apply at rate stated on can to protect surfaces and enable project certification.

General information

Color

White

Finish

Smooth

Material

Water-based

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_31_68_29 Flame-retardant coatingsPrimary
Pr_35_31_68_43 Intumescent protective coatings

CAWS

M60/160 Decorative woodstain/ varnish/ preservative

M60/16 Decorative wood stain/ varnish/ preservative

M60/172 Flame-retardant coating system

M60/18 Special coating

M60/195 Special coating

M60/175 Protective coating

M60/19 Flame-retardant coatings

Specification data - Flame-retardant coatings

Reaction to fire rating (indicative)

To BS EN 13501, B-s1,d0.

Solvent

Water-based.

VOC content (maximum)

16 g/L.

Colour

White.

Finish

Smooth.

Application temperature

8–30°C.

Guidance for specification option:

  • Maximum relative Humidity below 75%.
  • Surface should be at least 3°C above the dew point.

Composition

Catalytic powder.

Guidance for specification option:

Expansion agent, char former, char hardeners and fibres Binder: Fire protection adhesive grade rapid reaction acrylic resin. Water-based.

Drying time

Touch dry (one hour); over paintable with Safewood SFR or Dualcoat SFR (four hours).

Density

1.32 g/ml.

Similar products from Thermoguard UK Ltd

Thermocoat S - Solvent-Based Intumescent Paint System

Thermocoat S - Solvent-Based Intumescent Paint System

Thermocoat WI - Water-based Intumescent Paint System

Thermocoat WI - Water-based Intumescent Paint System

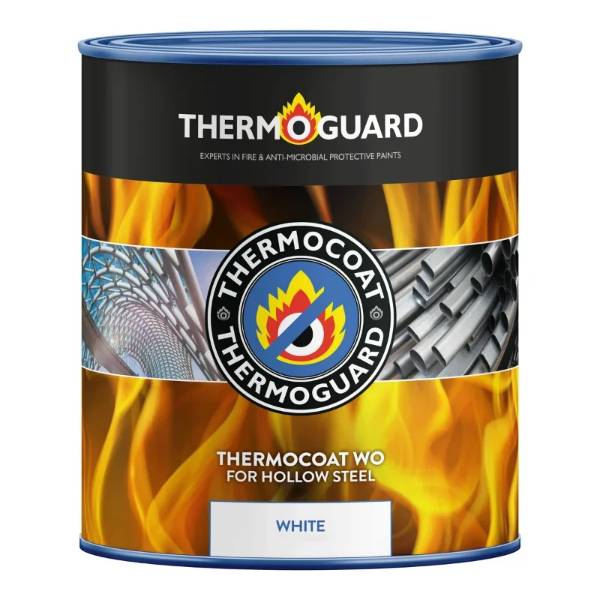

Thermocoat WO - Water-Based Intumescent Paint System
