Sylomer® - High Performance Vibration Isolation Materials

Verified by manufacturer 2 months ago

Sylomer® SR11 - 12

Total Vibration Solutions Limited t/a TVS Group Variant:
Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Vibration Isolation Solution.

Jump to:
+44 (0)1706 260 220 Website

Application

  • Building isolation.
  • Machine foundation isolation.
  • Partition and wall isolation.
  • Floating floors.
  • Bearing pads for machines.

Description

Sylomer® is one of the leading materials in the vibration isolation market. In the case of railway lines, vibrations and noise are reduced, while maintenance costs are also significantly lowered. Sylomer® ensures that rooms affected by vibration are pleasant to use. Ten different types of Sylomer® are available as standard – as well as the special type Sylomer® Fire-retardant. The properties of the material can also be modified in order to meet specific requirements.


Features and benefits:

  • Combination of spring and damping characteristics.
  • Elastic, versatile polyurethane material.
  • Mixed-cell pore structure.
  • High elasticity, long service life.
  • Static range of use of 0.011–1.2 N/mm².
  • Load peaks up to 6.0 N/mm².
  • Very low amplitude dependence.
  • Proven long-term behavior.
  • High fatigue strength.
  • Finely graded range (10 standard types) for optimum system design.
  • Ability to provide customer-specific modifications.

General information

Color

Blue

Brown

Green

Grey

Orange

Show more

Finish

Smooth

Material

Polyurethane

Length

5000 mm

Width

1500 mm

Warranty description

Ten year

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

CAWS

K11/275 Acoustic separating floor system

K11/27 Acoustic separating floor system

K11/145 Battened cement-bonded particleboard floating floor

K11/235 Oriented strand board floating floor

K20/150 Battened timber board floating floor

K11/245 Cement bonded particleboard floating floor

K20/20 Battened timber board floating floor

K21/130 Battened wood floating floor

K11/295 Floating floor system

K11/225 Particleboard floating floor

K11/215 Plywood floating floor

K11/25 Particleboard floating floor

K21/111 Wood floating floor

K11/22 Plywood floating floor

K11/135 Battened oriented strand board floating floor

K11/20 Battened particleboard floating floor

K11/125 Battened particleboard floating floor

K11/15 Battened plywood floating floor

K11/115 Battened plywood floating floor

Product range

Structural Isolation Materials

Specification data - Resilient layer insulation

Material

Closed cellular polyurethane.

Thickness

12.5 mm.

Fire performance

Class B2 to DIN 4102-1.

Sound insulation rating

Dependent on variant.

Colour

Yellow.

Sustainability data

Country of material origin

Austria

Country of product manufacture

Austria

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Guidance for specification option:

Zero recycled content

Third party certifications

CHAS

CHAS

CHAS

Constructionline Gold

Constructionline Gold

Constructionline Gold

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality

Literature

Sylomer Range Overview

Sylomer Range Overview

Sylomer SR11

Sylomer SR11

Sylomer SR110

Sylomer SR110

Sylomer SR1200

Sylomer SR1200

Sylomer SR18

Sylomer SR18

Sylomer SR220

Sylomer SR220

Sylomer SR28

Sylomer SR28

Sylomer SR42

Sylomer SR42

Sylomer SR450

Sylomer SR450

Sylomer SR55

Sylomer SR55

Sylomer SR850

Sylomer SR850

Case studies

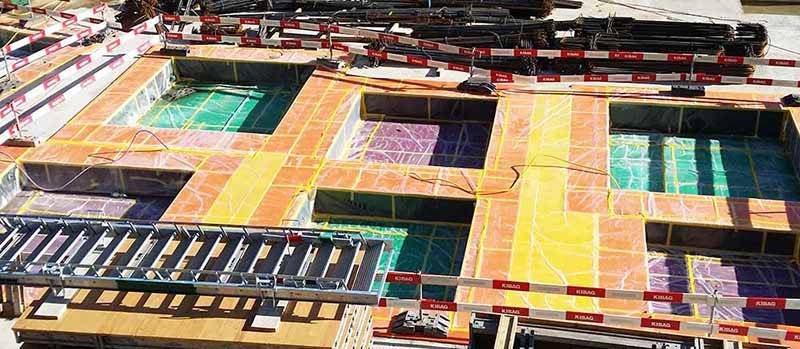

Vibration Isolation of Residential Building over Tube Lines
