TVS ACOUSTICORK U22 Acoustic Under screed Isolation Material
Verified by manufacturer 2 months ago
CHAS
Certificate type
Constructionline Gold
Certificate type
ISO 9001 Quality Management
Certificate type

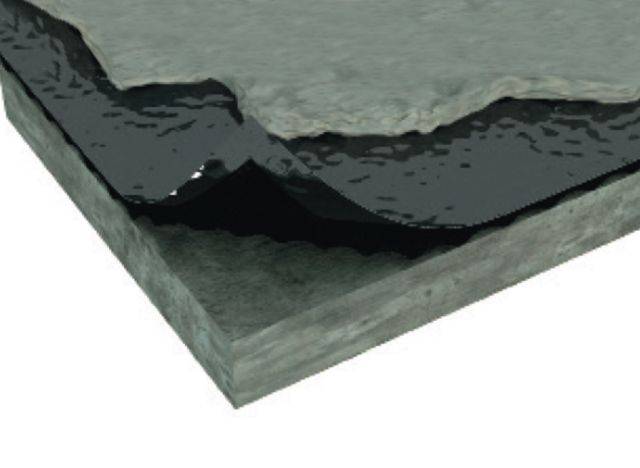

Agglomerated recycled rubber resilient layer for impact noise insulation of floating screed.
Application
A perimeter insulation barrier is highly recommended in order to avoid lateral propagation of impact noise.
Description
Agglomerated recycled rubber resilient layer for impact noise insulation of floating screed.
Technical characteristics:
- Thermal conductivity (to ISO 8301): 0.140 W/m·K.
- Tensile strength: >350 kPa.
- Recovery (after 0.7 MPa): >80%.
- Room temperature: >-5°C.
- Room moisture content: <75%.
- Dynamic stiffness (to ISO 9052-1 and ISO 7626-5): Dependent on variant specified, consult manufacturer for details.
Features and benefits:
- Provides impact noise reduction and thermal insulation properties.
- Easy to handle, and provides long term resilience.
- 100% recycled material.
- Very flexible.
General information
Color | Black |
Material | Rubber |
Length | 15000 mm |
Width | 1000 mm |
Height | 4 mm 8 mm |
Warranty description | One year |
Uniclass | |
CAWS | M10/295 Floating construction (thin sheet impact sound insulation) |
Product range |
Specification data - Resilient layer insulation
Material | Recycled rubber. |
Density | 650–750 kg/m³.Guidance for specification option: Dependent on variant specified; consult manufacturer for details. |
Thickness | 4 mm.Guidance for specification option: 1 x 15 m (w x l). 4/ 2 mm.Guidance for specification option: 1 x 30 m (w x l). 6 mm.Guidance for specification option: 1 x 10 m (w x l). 6/ 3 mm.Guidance for specification option: 1 x 20 m (w x l). 8 mm.Guidance for specification option: 1 x 10 m (w x l). 8/ 4 mm.Guidance for specification option: 1 x 15 m (w x l). 10 mm.Guidance for specification option: 1 x 10 m (w x l). 10/ 15 mm.Guidance for specification option: 1 x 10 m (w x l). |
Fire performance | Manufacturer's standard. |
Sound insulation rating | ΔLw 22–23 dB (to ISO 10140-3 and ISO 717-2). |
Recycled content | 100%. |
Sustainability data
Country of material origin | Portugal |
Country of product manufacture | Portugal |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
CHAS
CHAS
Constructionline Gold
Constructionline Gold
ISO 9001 Quality Management
ISO 9001 Quality
Literature
Acousticork U22 Acoustic Underscreed
Acoustic Floating Floors
