TVS ACOUSTICORK T66 Acoustic Underlay Material
Verified by manufacturer 4 months ago
Agglomerated cork and recycled rubber underlay.
Application
Suitable for floating, hardwood, vinyl, linoleum and ceramic floors.
A perimeter insulation barrier is highly recommended in order to avoid lateral propagation of impact noise.
Description
Agglomerated cork and recycled rubber underlay for impact noise reduction and thermal insulation.
Technical characteristics:
- Tensile strength: >800 kPa.
- Compression (at 0.7 MPa): <15%.
- Recovery (after 0.7 MPa): >75%.
- Room temperature: >10°C.
- Room moisture content: <75%.
- Thermal conductivity: 0.08 W/m·K.
- Thermal resistance: 0.027 m²K/W.
Features and benefits:
- Provides good insulation of footfall and impact noise.
- Good thermal resistance.
- Suitable for all types of final floors including heated floor systems.
- A 100% recycled and sustainable product.
- Durability: Lifetime of the building.
General information
Color | Other |
Material | Cork Rubber |
Shape | Rectangle |
Length | 15000 mm |
Width | 1000 mm |
Height | 3 mm 4.5 mm |
Warranty description | One year |
Uniclass | |
CAWS | M4/328 PVC tiles K1/340 Acoustic insulation for flooring M50/110 Resilient floor tiling M40/5 Tiling M40/110 Tiling M40/115 Natural stone covering M40/120 Mosaic M4/322 Linoleum tiles M40/12 Mosaic M50/150 Sheeting M4/330 Ceramic tiles for floors K21/20 Composite laminated flooring M50/20 Sheeting K21/115 Wood laminate flooring K21/111 Wood floating floor M50/155 PVC sheet flooring in special wet areas M4/320 Linoleum sheet M40/10 Natural stone covering M50/10 Resilient floor tiling K21/10 Wood laminate flooring K21/146 Laminate flooring K21/145 Composite laminate flooring K1/342 Thermal insulation for flooring |
SKU Code | TVS Acousticork T66 |
Product range |
Specification data - Resilient layer insulation
Classification data | |
Material | Cork and recycled rubber. |
Density | 650–700 kg/m³. Guidance for specification option: Dependent on variant specified; consult manufacturer for details. |
Thickness | 3 mm. 4.5 mm. Guidance for specification option: For covering with ceramic/ natural stone. |
Fire performance | Manufacturer's standard. |
Sound insulation rating | 16–19 ΔLw dB, depending on application (to ISO 10140-3 and ISO 717-2). |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100%. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Portugal |
Country of product manufacture | Portugal |
Material | Cork Rubber |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Acousticork T66 General Purpose Acoustic Underlay
Similar products from Total Vibration Solutions Limited t/a TVS Group
Sylodyn® - Water Resistant High Performance Vibration Isolation Materials - Vibration Protection Solution
Sylomer® - High Performance Vibration Isolation Materials

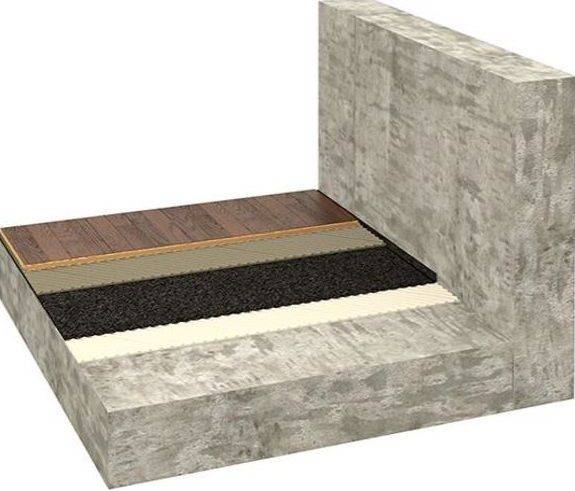

TVS ACOUSTICORK T22 Acoustic Underlay Material

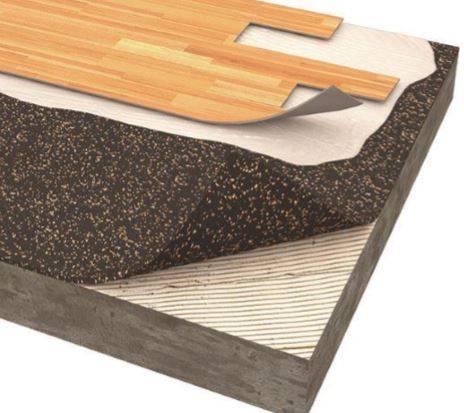

TVS ACOUSTICORK T82 Acoustic Underlay Material
TVS ACOUSTICORK U22 Acoustic Under screed Isolation Material

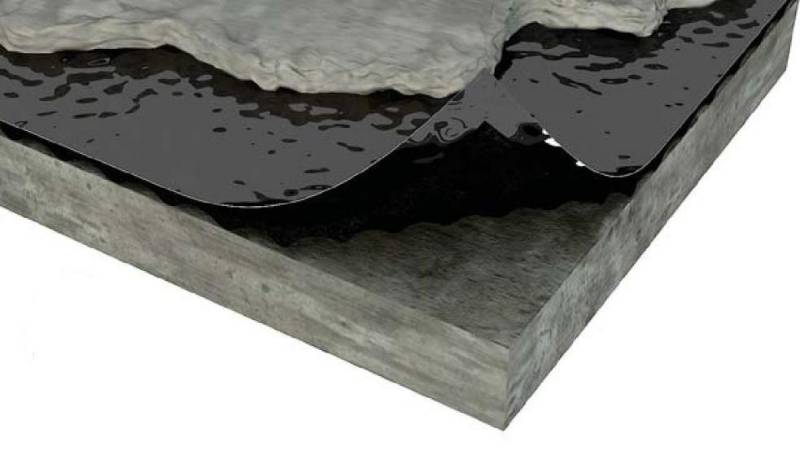

TVS ACOUSTICORK U71 Acoustic Under screed Isolation Material

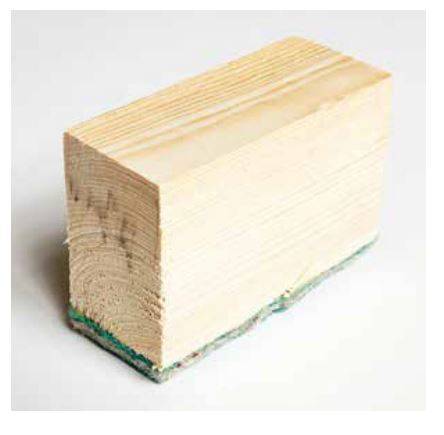

TVS Acoustics - Resilient Batten - TVS Acoustic Resilient Batten
TVS Acoustics - TVS Panel 28 - Impact Reducing Floor Panel

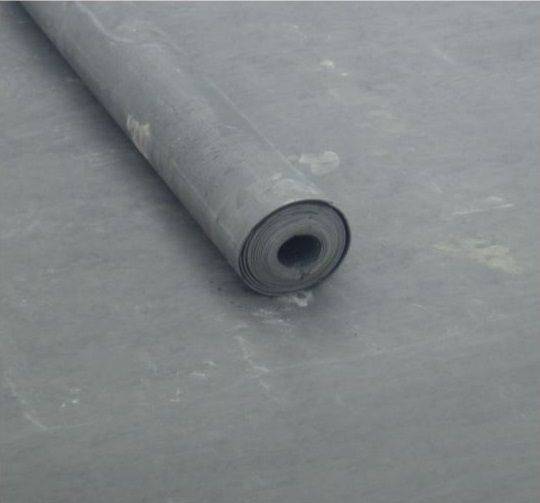

TVS INSu Barrier Mat - Sound Barrier
