Sopralene Optima C3 GMF & Sopratherm T warm roof granule system on concrete
Verified by manufacturer 18 hours ago
EPD
Certificate type
BBA Agrément Certificate
Certificate type
CCPI Product
Certificate type
Warm roof system with torched on SBS reinforced bitumen top layer membrane with granule finish on concrete substrate. Self adhesive VCL, PIR insulation and Liquid detailing.
Application
Suitable for roofing.
Description
Soprema's reinforced bitumen warm roof system on a concrete substrate. The VCL is Self adhesive and a PIR Insulation faced with polypropylene fleece finished bitumen glass working surface is fixed with a polyurethane adhesive. The capsheet is a SBS modified bitumen membrane with composite polyester reinforcement for a multi layer waterproofing system, and finished in granules. Liquid waterproofing is used to finish flashings, upstands etc.
Features and benefits:
- Capsheet offers superior cold bend resistance.
- Can be installed at low temperatures.
- High puncture resistance.
- BROOF(t4) rated.
- 30 years warranty.
General information
Color | Black Brown |
Material | Bitumen Polymer Mineral Guidance for specification option: Granules. Polyester |
Warranty description | 30 year |
Uniclass | |
CAWS | J41/405 Single-layer reinforced bitumen waterproof covering J41/400 Built-up reinforced bitumen waterproof covering J41/135 Single-layer reinforced bitumen membrane cold deck roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering J41/125 Single-layer reinforced bitumen membrane inverted roof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/12 Reinforced bitumen membrane cold deck roof covering J41/115 Single-layer reinforced bitumen membrane warm deck roof covering J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering |
SKU Code | CNB1PBPTBF_001 |
Product range |
Specification data - Reinforced bitumen roofing sheets
Classification data | |
Standard | To EN 13707:2004 and A2:2009. |
Third-party certification | BBA approved. |
Material | |
Carrier material | Composite polyester. |
Bitumen modification | Elastomeric. |
Thickness (minimum) | 5 mm. |
Weight (minimum) | 5.8 kg/m². |
Surface finish | |
Top | Mineral granules. |
Underside | Macro perforated thermofusible film. |
Colour | Black. Flamed brown. |
Sustainability data
Material | Bitumen Polymer Mineral Guidance for specification option: Granules. Polyester |
Product certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Product certifications
Certification type
EPD
Sopralene Optima C3 GMF EPD

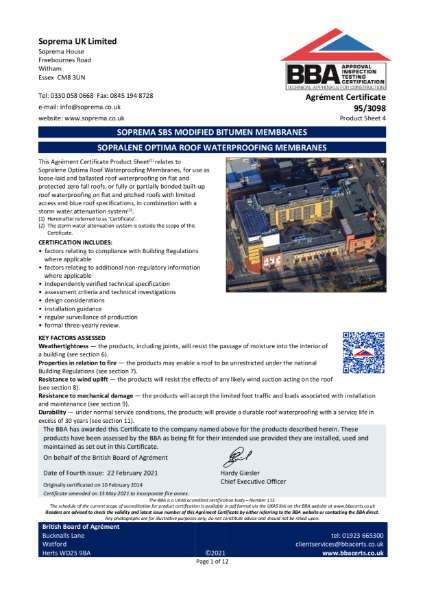

BBA Agrément Certificate
Sopralene Optima Roof Waterproofing Membranes - for use as roof waterproofing on flat, protected zero fall roofs, and pitched roofs with limited access and blue roof specifications, in combination with an attenuation system
CCPI Product
CCPI Bitumen
