Sopralene Flam 250AF - Bituminous warm roof system on a metal deck
Verified by manufacturer 1 month ago

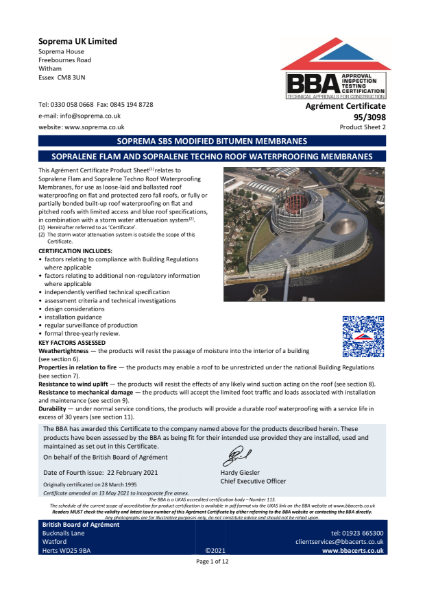

BBA Agrément Certificate
Certificate type
CCPI Product
Certificate type
EPD
Certificate type
Multi layer bituminous flat roof waterproofing system with PIR insulation and self-adhered bituminous AVCL and base layer on a metal deck with liquid detailing.
Application
For exposed roofs with a metal substrate. For other uses and substrates, including use under a green roof, please see other listings or contact Soprema UK.
Description
A warm roof system with a cap sheet composed of elastomer modified bitumen and a non-woven polyester reinforcement. Used as an upper layer within a multi-layer waterproofing system. The upper surface is finished with slates and the overlap is protected by a thermofusible film. The lower surface is protected by a thermofusible film. A self-adhered underlayer with a vapor-pressure and tension dispersion system, composed of elastomer modified bitumen and a composite polyester reinforcement.
PIR insulation faced with a mineral coated glass face and a self adhesive AVCL applied to a primed deck.
Features and benefits:
- High performance.
- Torch-on or hot-air method including the overlaps.
- Flexible until -20°C.
- CE marked to BS EN 13707.
General information
Color | Black White |
Material | Bitumen Polymer Slate Polyester |
Warranty description | 25 year |
Uniclass | |
CAWS | J41/10 Reinforced bitumen membrane warm deck roof covering J41/12 Reinforced bitumen membrane cold deck roof covering J41/405 Single-layer reinforced bitumen waterproof covering J41/135 Single-layer reinforced bitumen membrane cold deck roof covering J41/115 Single-layer reinforced bitumen membrane warm deck roof covering J41/400 Built-up reinforced bitumen waterproof covering J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering H62/3 Roof slating H62/105 Roof slating J41/125 Single-layer reinforced bitumen membrane inverted roof covering |
SKU Code | SNB1PGPSBK_002 |
Specification data - Reinforced bitumen roofing sheets
Standard | To EN 13970:2004 and A1:2009. |
Material | |
Carrier material | Non woven polyester. |
Bitumen modification | Elastomeric. |
Thickness (minimum) | 4.5 mm. |
Weight (minimum) | 5.7 kg/m². |
Surface finish | |
Top | Slate. |
Underside | Thermofusible film. |
Colour | Natural black. White. |
Third-party certification | BBA approved. |
Sustainability data
Country of product manufacture | Belgium |
Material | Bitumen Polymer Slate Polyester |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | |
Declared unit | 3.73e+00 kg CO₂ eq/unit Certified |
Expected Life | 60 year |
Product certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Product certifications
Literature
Sopralene Bituminous Waterproofing systems
Sopralene Flam Bituminous Waterproofing Systems
Similar products from Soprema UK
DUO HT 4 NOI/F C180 AERO FC - Waterproofing Roof Membrane
DuO HT 4 NOI/F C180 FC - Waterproofing Roof Membrane

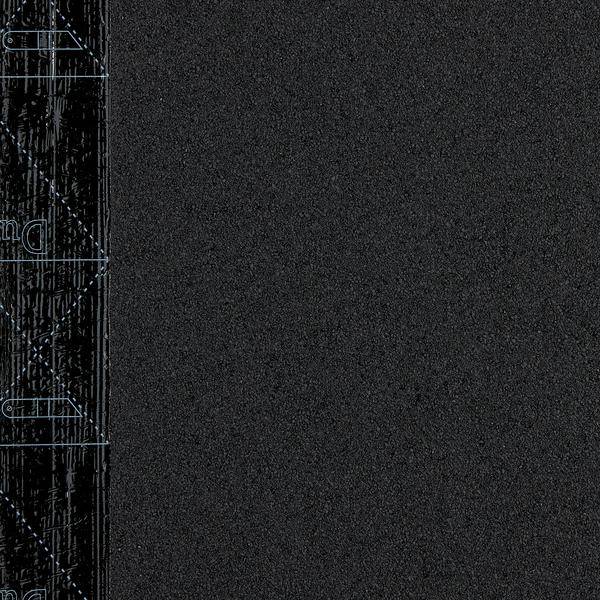

DUO HT 4 NOI/F C180 FC MECANO - Waterproofing Roof Membrane

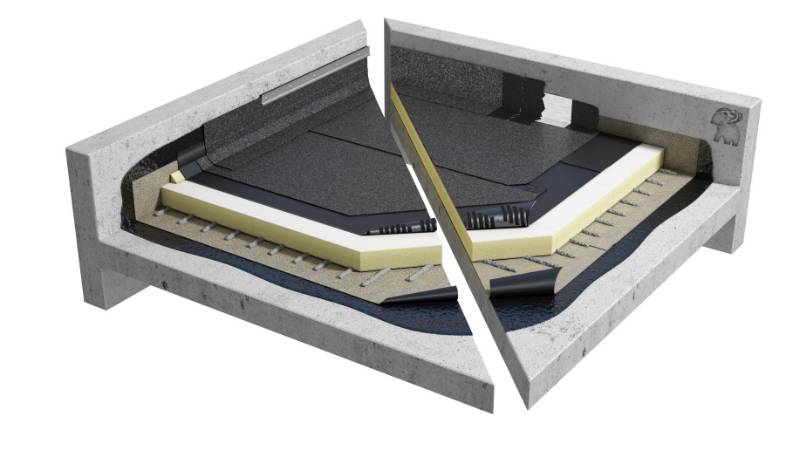

Sopralene Flam 180 AF - Bituminous Warm Flat Roof system (Concrete)
Sopralene Flam 180 AF - Bituminous Warm Flat Roof system (Metal)

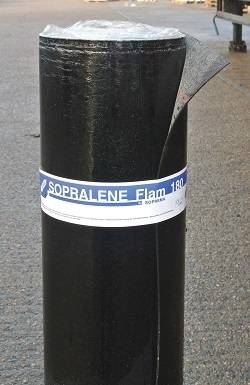

Sopralene Flam 180 TF

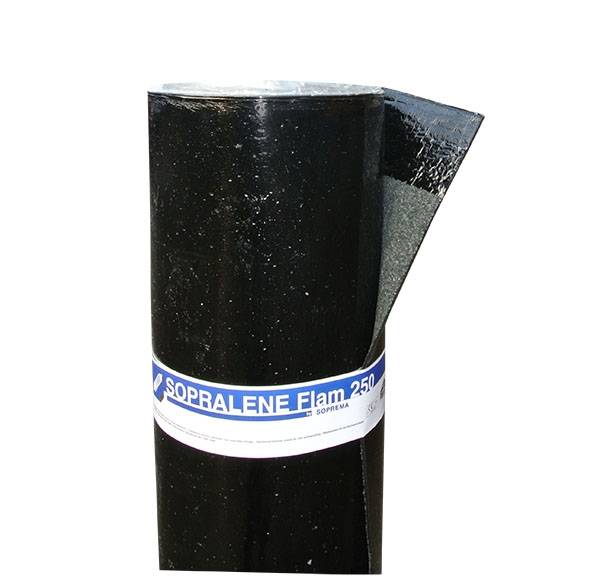

Sopralene Flam 250 TF

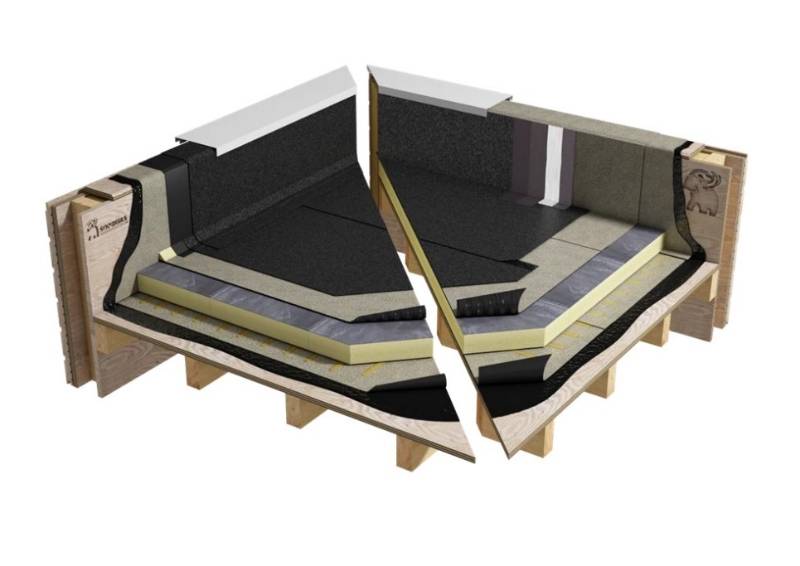

Sopralene Flam 250AF - Bituminous warm roof system on a timber deck

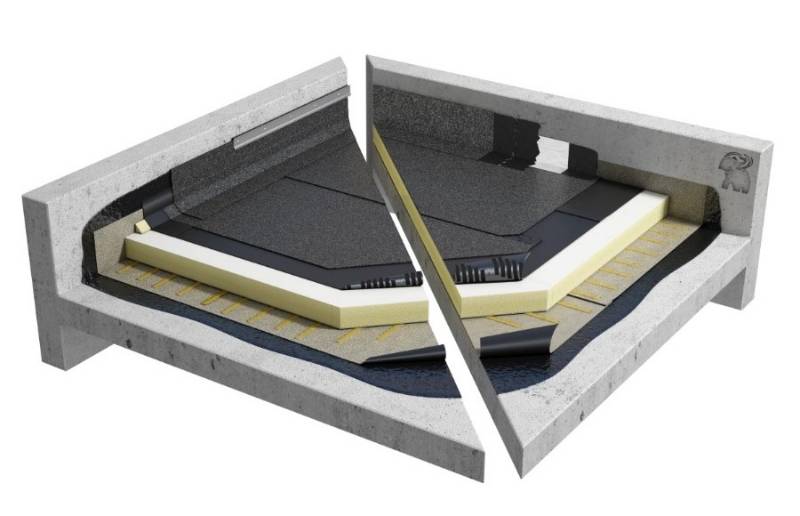

Sopralene Flam 250AF - Torch applied bituminous warm roof system (Concrete deck)
