DuO HT 4 NOI/F C180 FC - Waterproofing Roof Membrane

Name: DuO HT 4 NOI/F C180 FC - Waterproofing Roof Membrane
Brand: Soprema UK
SKU: cNpoZvUfUz6XtFKeFQpkS9

Verified by manufacturer 19 hours ago

Soprema UK

Product certifications:

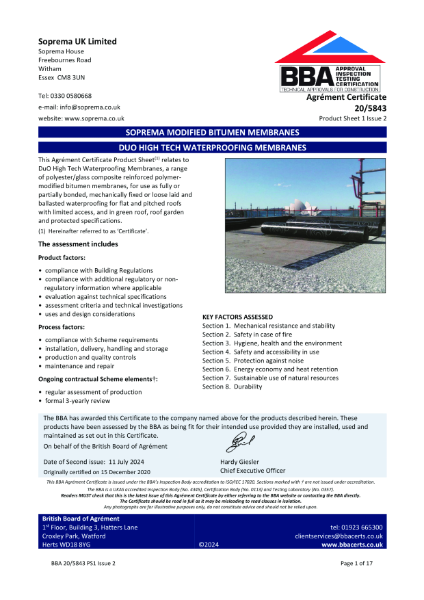

BBA Agrément Certificate
Certificate type
CCPI Product
Certificate type

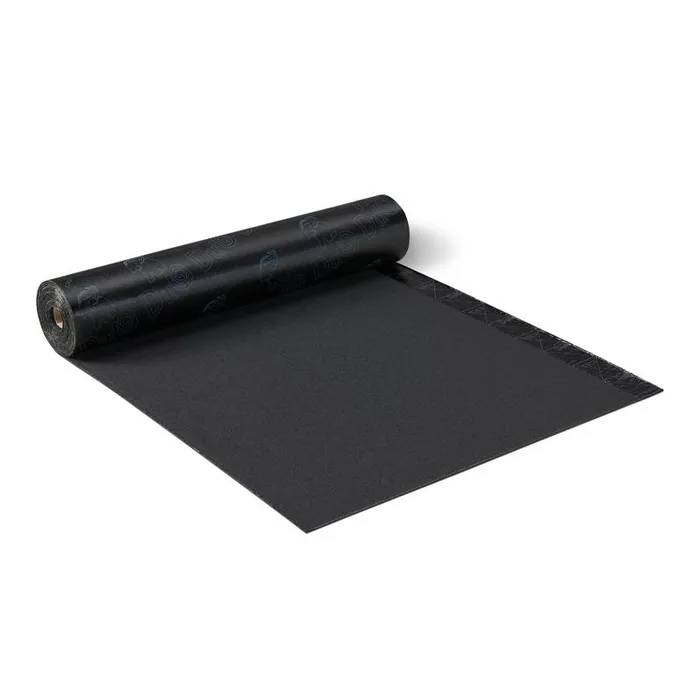

Reinforced bitumen roofing membrane.

Jump to:

Request BIM

+44 (0)330 058 0668 Website

Application

Suitable for use on roofing as a waterproofing layer on in a roof system.

Description

Membrane with a vapour-pressure and tension dispersion system, composed of a double bitumen coating with fire-retardant additives and a composite polyester reinforcement.

Features and benefits:

4 mm thick.
High mechanical resistance.
UV-resistant.
Good adhesion.

General information

Color	Black
Finish	Grained
Material	Bitumen Polyester
Shape	Rectangle
Length	8000 mm
Width	1000 mm
Height	4 mm

Uniclass	Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary
CAWS	J41/135 Single-layer reinforced bitumen membrane cold deck roof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/125 Single-layer reinforced bitumen membrane inverted roof covering J41/115 Single-layer reinforced bitumen membrane warm deck roof covering

SKU Code	DuO HT 4 NOI/F C180 FC

Product range	Reinforced bitumen membranes

Specification data - Reinforced bitumen roofing sheets

Classification data
Standard	To BS EN 13707.
Third-party certification	British Board of Agrément (BBA) certificate.
Performance characteristics	Fire performance to EN 13501-5, Broof(t1).
Material	-
Carrier material	Polyester.
Bitumen modification	Polymeric.
Thickness (minimum)	4 mm.
Weight (minimum)	5.4 kg/m².
Surface finish	-

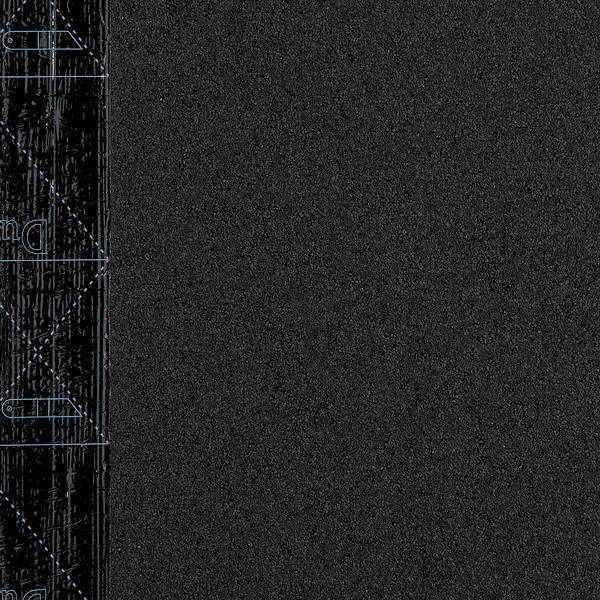

Top	Mineral granules.
Underside	Thermofusible film.
Colour	Black.
Tensile force	To EN 12311, 880/ 880 N/50 mm. Guidance for specification option: Longitudinal/ transverse direction.
Elongation	To EN 12311, 50%. Guidance for specification option: At maximum tensile force.
Static load resistance	To EN 12730, ≥25 kg.
Resistance to impact	To EN 12691, ≥1000 mm.
Nail shank	To EN 12310-1, 335 N.
Peel resistance	To EN 12316-1, 235 N/50 mm.
ShearStrength	To EN 12317-1, 670 N/50 mm. Manufacturer guidance Shear resistance.
Watertightness	To EN 1928, ≥10 kPa.
Reaction to fire	To EN 13501-1, Class E.
