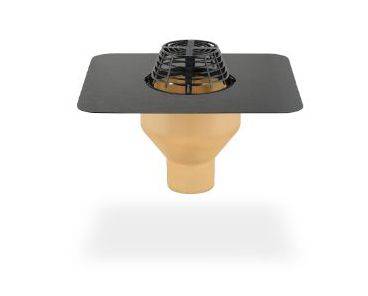

SitaStandard Rainwater Outlet - Thermally Insulated Roof Outlet

Name: SitaStandard Rainwater Outlet - Thermally Insulated Roof Outlet
Brand: Sita Bauelemente GmbH
SKU: ipDhqwpuxtwjPojWJqmCWN

Verified by manufacturer 2 months ago

Vertical

Sita Bauelemente GmbH

Third party certifications:

BRE Certificate
Certificate type
ISO 9001 Quality Management
Certificate type
TUV - Safety and Quality Report
Certificate type
EPD
Certificate type

Range of thermally insulated roof outlets with bodies made of rigid polyurethane integral foam.

Jump to:

BOS

07402239777 Website

Application

For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 for large used and unused flat roofs.

Description

Range of Thermally Insulated Roof Outlets featuring bodies made of rigid polyurethane, designed for both main and emergency drainage applications.

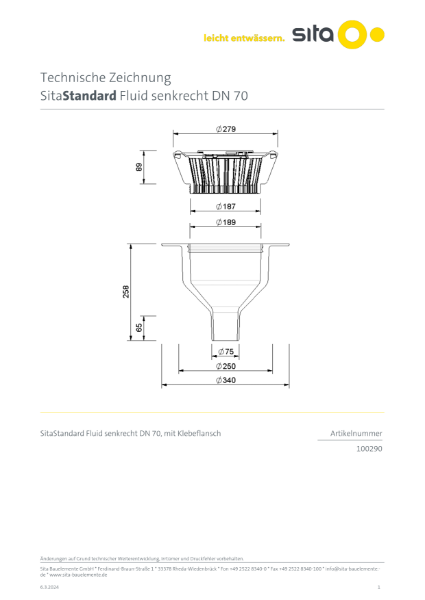

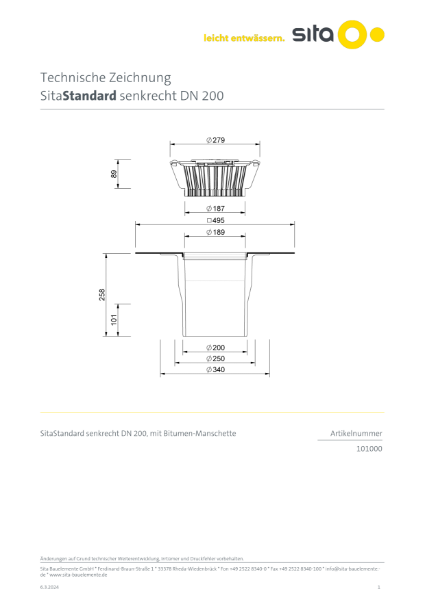

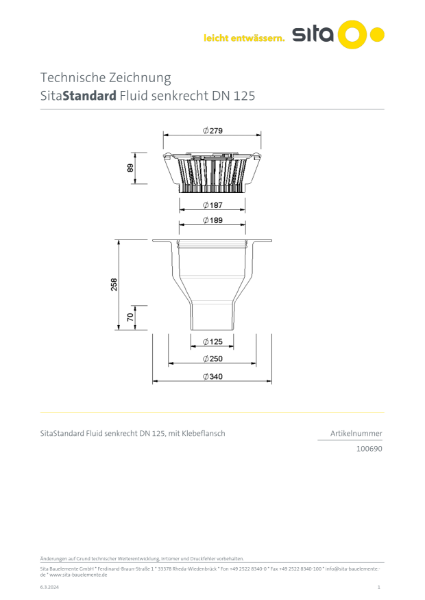

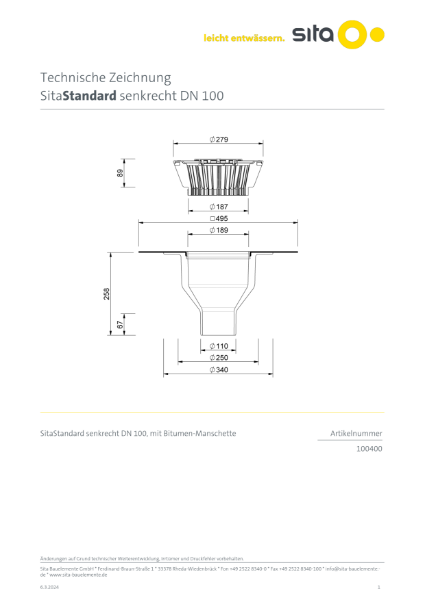

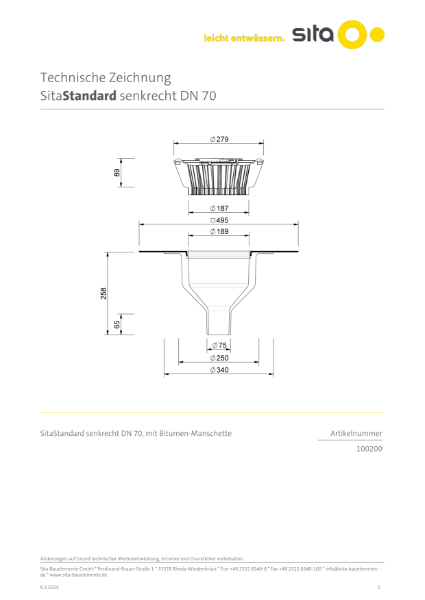

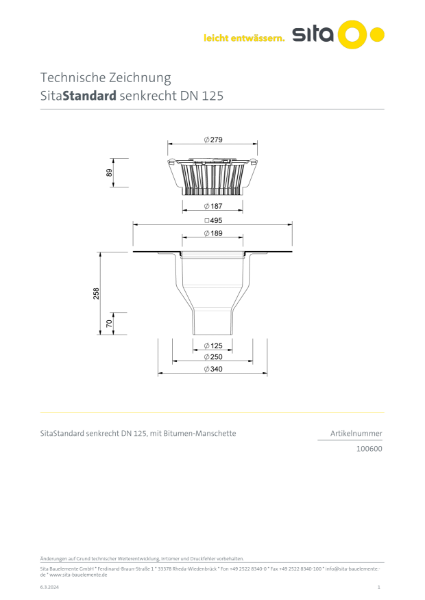

The SitaStandard Vertical outlet is constructed from thermally insulated polyurethane and complies with DIN EN 1253-2 standards. Available in nominal widths of DN 70, DN 100, DN 125, DN 150, and DN 200, it offers a direct connection to pipes with push-fit sockets for gravity drainage. It includes a large integrated connection sleeve (495 mm x 495 mm) suitable for roof waterproofing membranes and liquid applied systems, and a fixing ring to secure the connection sleeve and support the included gravel trap.

Features and benefits:

Not sensitive to the weather (UV/ IR radiation, rain/ snow, temperature, ozone, etc.).
Impact and shock resistant.
Durable.
Heated option for most models.
Features a large inlet pot resulting in a high discharge rate.
Maximum discharge volume.
Up to size DN 200.
Robust construction.
Homogeneous roofing membrane connection.

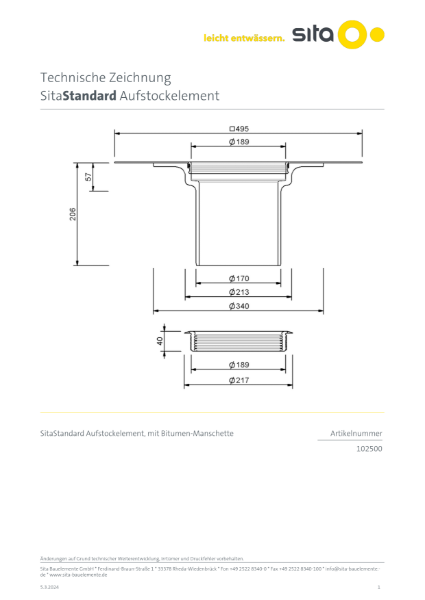

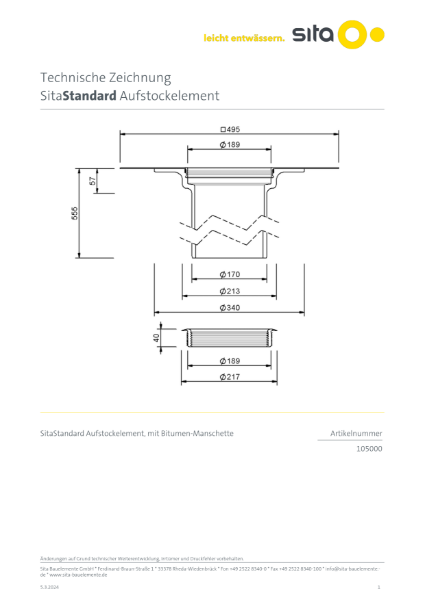

Suitable for bridging all insulation thicknesses from 60 to 520 mm.

General information

Color	Black Beige
Material	Polyurethane (PUR)
Shape	Circle Square
Length	Bespoke
Width	70 mm 100 mm 125 mm 150 mm 200 mm Bespoke Show more Manufacturer guidance Pipe DN.
Height	Bespoke
Warranty description	Six year

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS	R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets

Specification data - Gravity rainwater outlets

Roof construction	-
Form	Guidance for specification option: Insert details.
Roof insulation thickness	Guidance for specification option: Insert details. Outlet is suitable for bridging all insulation thicknesses from 60 to 520 mm.
Material	Body: Rigid polyurethane integral foam.
Grating	Domed.

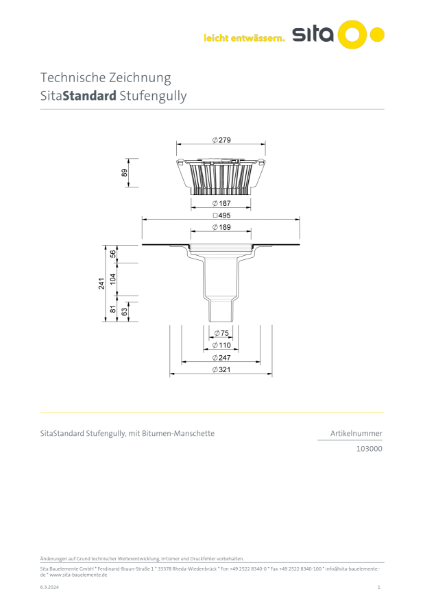

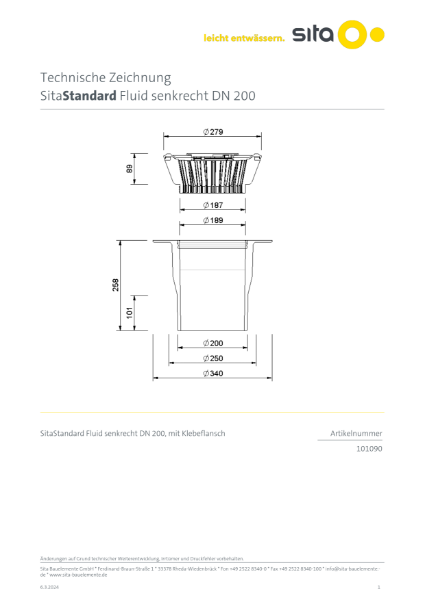

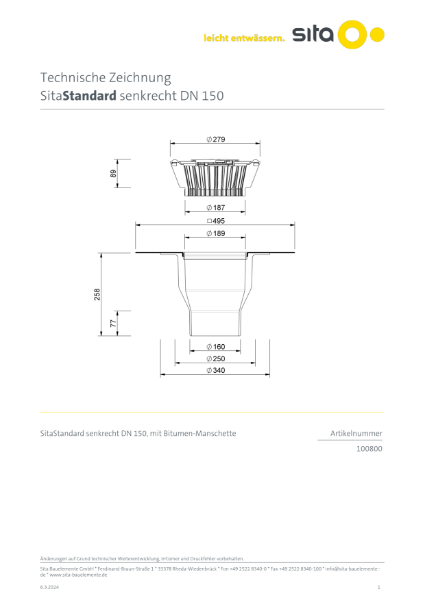

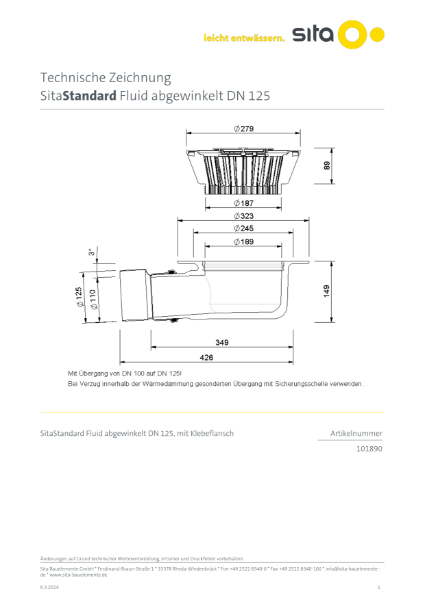

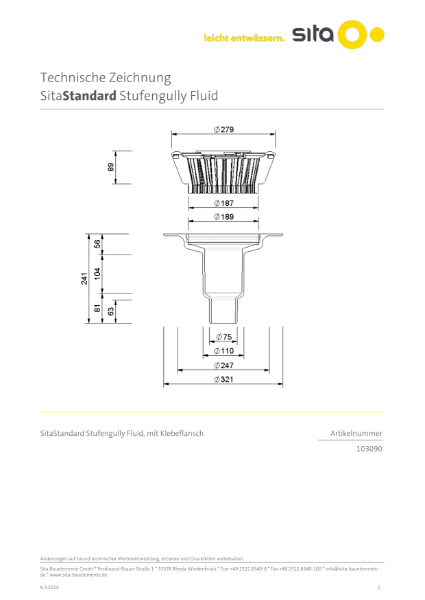

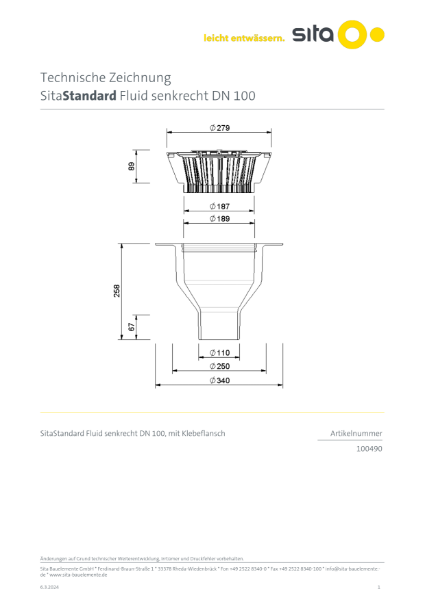

Spigots	DN70, outer diameter 75 mm. Guidance for specification option: Pipe connection length: 65 mm. DN100,outer diameter 110 mm. Guidance for specification option: Pipe connection length: 67 mm. DN125,outer diameter 125 mm. DN150,outer diameter 160 mm. Guidance for specification option: Pipe connection length: 77 mm. DN200,outer diameter 200 mm. Guidance for specification option: Pipe connection length: 101 mm. Manufacturer guidance Opening/ core borehole: 250 mm. Consult manufacturer's literature for full details.
Integral accessories	Bitumen sleeve 495 x 495 mm.

Orientation	Vertical.
Standard	For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 for large used and unused flat roofs.
Accessories	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Reaction to fire	Euroclass E/ B2 normal flammability.

Sustainability data

Country of material origin	Germany
Country of product manufacture	Germany
Material	Polyurethane (PUR)
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	13.4 kg CO₂ eq/unit
