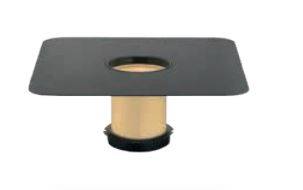

SitaTrendy Extension Unit

Name: SitaTrendy Extension Unit
Brand: Sita Bauelemente GmbH
SKU: mjvCVFnWs6aEAgiWot2SZD

Verified by manufacturer 2 months ago

Sita Bauelemente GmbH

Third party certifications:

BRE Certificate
Certificate type
ISO 9001 Quality Management
Certificate type
TUV - Safety and Quality Report
Certificate type
EPD
Certificate type

Range of thermally insulated roof outlets with bodies made of rigid polyurethane for bridging insulation depths of 60–320 mm.

Jump to:

07402239777 Website

Description

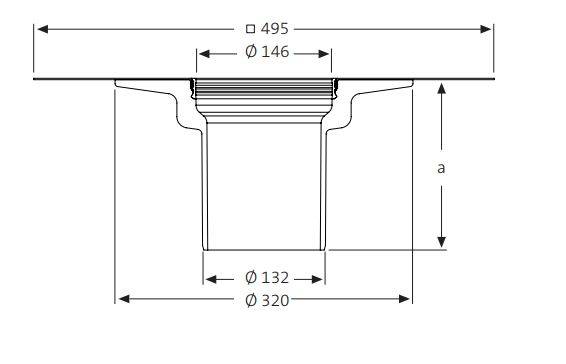

The SitaTrendy Extension Unit, crafted from high-quality polyurethane, complies with DIN EN 1253-2 standards and meets the elevated RAL quality mark GZ-694. It is designed for insulation thicknesses ranging from 60–320 mm. The unit features an integrated, precision-fit connection sleeve (495 x 495 mm) that is compatible with both roofing membranes and liquid-applied waterproofing systems. It also includes a securing ring for additional fastening of the sleeve and support for the provided dome grate. The package comes complete with a multi-lip angle sealing ring to prevent backflow, ensuring reliable performance and professional installation.

General information

Color	Yellow Black
Material	Polyurethane (PUR)
Shape	Circle Square
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Six year

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary
CAWS	R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets

Specification data - Gravity rainwater outlets

Material	Polyurethane (PUR).
Grating	Flat.
Spigots	Type and direction to suit pipelines with suitable adaptors and connections.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Material	Polyurethane (PUR)
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	13.4 kg CO₂ eq/unit
Expected Life	Lifetime
