Summary
Range of thermally insulated roof outlets with bodies made of rigid polyurethane integral foam.
-
-
Application
For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 for large used and unused flat roofs.
-
-
Description
Range of Thermally Insulated Roof Outlets featuring bodies made of rigid polyurethane, designed for both main and emergency drainage applications.

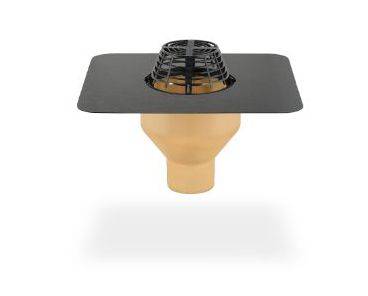

The SitaStandard Vertical outlet is constructed from thermally insulated polyurethane and complies with DIN EN 1253-2 standards. Available in nominal widths of DN 70, DN 100, DN 125, DN 150, and DN 200, it offers a direct connection to pipes with push-fit sockets for gravity drainage. It includes a large integrated connection sleeve (495 mm x 495 mm) suitable for roof waterproofing membranes and liquid applied systems, and a fixing ring to secure the connection sleeve and support the included gravel trap.
Features and benefits:
- Not sensitive to the weather (UV/ IR radiation, rain/ snow, temperature, ozone, etc.).
- Impact and shock resistant.
- Durable.
- Heated option for most models.
- Features a large inlet pot resulting in a high discharge rate.
- Maximum discharge volume.
- Up to size DN 200.
- Robust construction.
- Homogeneous roofing membrane connection.
- Suitable for bridging all insulation thicknesses from 60 to 520 mm.
-
-
Product certifications
- TUV - Safety and Quality Report LGA Certification - EN 1253-2:2015
-
-
Digital objects
-
-
Color
Black, Beige
-
-
Material
Polyurethane (PUR)
-
-
Shape
Circle, Square
-
-
Length
Bespoke
-
-
Width
70 mm, 100 mm, 125 mm, 150 mm, 200 mm, Bespoke
-
-
Height
Bespoke
-
-
Warranty description
Six year
-
-
SKU Code
100200, 100400, 100600, 100800, 101000, 100300, 100500, 100700, 100900, 101100, 101400, 101600, 101800, 101500, 101700, 101900, 103000, 100290, 100490, 100690, 100890, 101090, 100390, 100590, 100790, 100990, 101190, 101490, 101690, 101890, 101590, 101790, 101990, 103090
-
-
Specification
Roof construction
-
-
-
Form
-
-
-
Roof insulation thickness
-
-
-
Material
Body: Rigid polyurethane integral foam.
-
-
Grating
Domed.
-
-
Spigots
DN70, outer diameter 75 mm., DN100,outer diameter 110 mm., DN125,outer diameter 125 mm., DN150,outer diameter 160 mm., DN200,outer diameter 200 mm.
-
-
Integral accessories
Bitumen sleeve 495 x 495 mm.
-
-
Additional properties
Orientation
Vertical.
-
-
Standard
For main and emergency drainage to DIN EN 12056-3 and DIN 1986-100 for large used and unused flat roofs.
-
-
Accessories
-
-
-
Reaction to fire
Euroclass E/ B2 normal flammability.
-
-
Sustainability data
Country of material origin
Germany
-
-
Country of product manufacture
Germany
-
-
Material
Polyurethane (PUR)
-
-
A1–A3 ('Production stage')
Embodied carbon as defined in BS EN 15804
Lower emissions
Normalized unit
-
-
-
Declared unit
13.4 kg CO₂ eq/unit
Certified
-
-
