SitaRetention Blue Roof Flow Restrictor - Controlled Rainwater Drainage Retainers
Verified by manufacturer 2 months ago
SitaRetention Fix
SitaRetention Fix
ISO 9001 Quality Management
Certificate type
TUV - Safety and Quality Report
Certificate type
EPD
Certificate type
Range of flow restrictors for controlled rainwater drainage on blue roofs by the targeted reduction of water intake.
Application
For delayed rainwater drainage with a retention roof.
Description
Range of retainers for controlled rainwater drainage by the targeted reduction of water intake.
Features and benefits:
- For use in conventional drainage outlets for targeted reduction of water intake.
- Optionally with or without dome grate depending on application.
- Simple insertion in the outlet pot without extra tools.
- With scaled adjusting slide or predefined opening.
- For controlled rainwater drainage.
- Emergency drainage elements are a noticeable yellow.
- Compatible with a range of Sita products: SitaStandard*; SitaIndra**; SitaMulti**; SitaTrendy*; SitaSani®*.
*Specified separately.
**Consult manufacturer for details.
General information
Color | Silver Beige Black Yellow |
Material | Polyurethane (PUR) Aluminium Rubber Polyamide High density polyethylene (HDPE) |
Shape | Square Circle |
Length | 151 mm 153 mm 194 mm 196 mm 310 mm |
Width | 151 mm 153 mm 194 mm 196 mm 310 mm |
Height | 120 mm Guidance for specification option: Maximum for extensive roof shaft. 207 mm 253 mm 307 mm 432 mm |
Warranty description | Six year |
Uniclass | |
CAWS | Q37/130 Extensive green roof Q37/110 Intensive green roof Q37/120 Simple intensive green roof R10/365 Proprietary rainwater outlets R10/26 Proprietary rainwater outlets |
Specification data - Gravity rainwater outlets

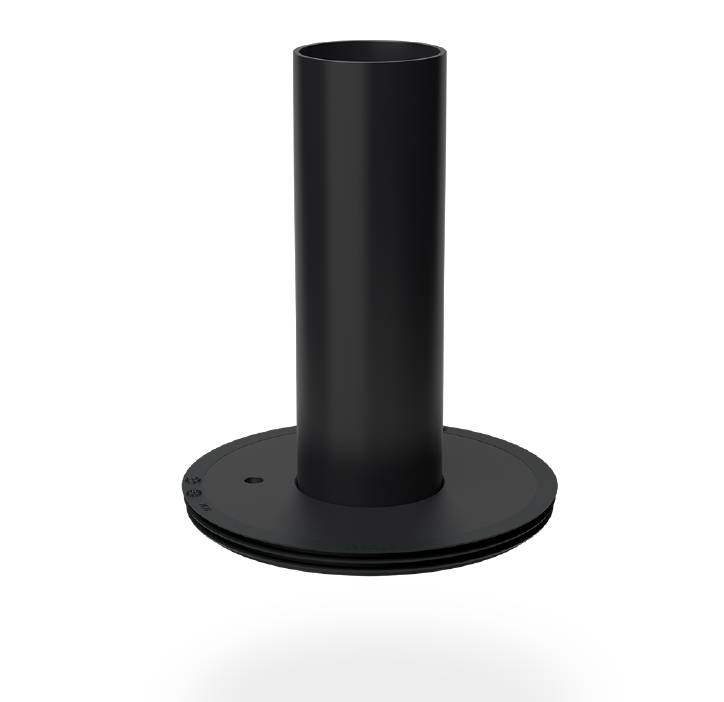

Material | Polyamide base plate; HDPE ventilation pipe. |
Grating | Not applicable. |

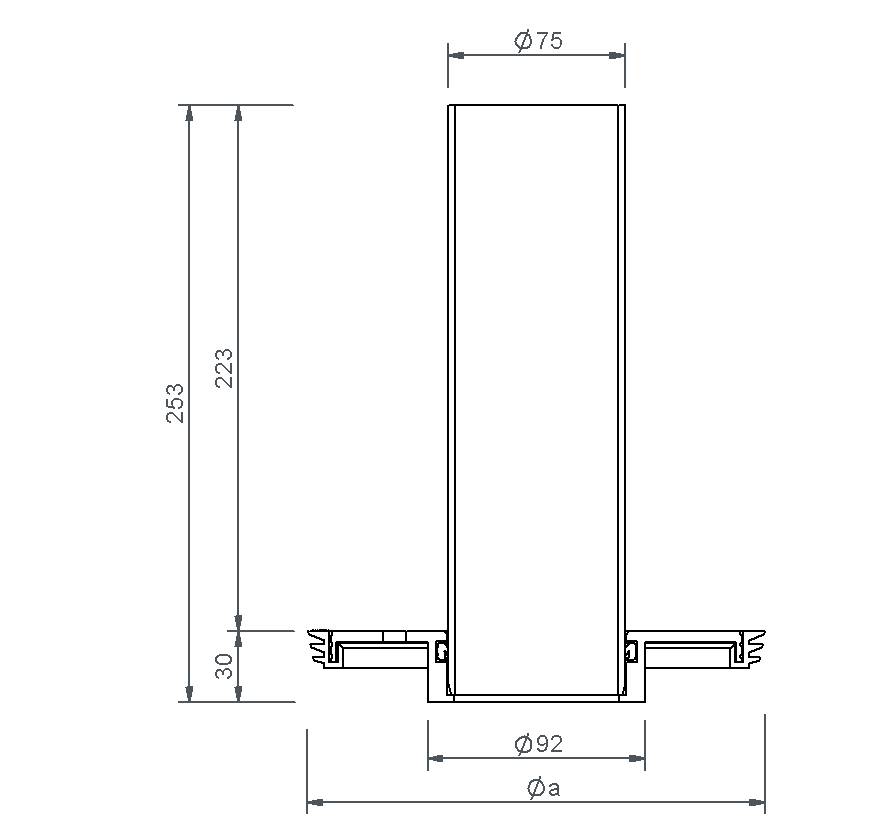

Spigots | 194 mm; 75 mm pipe outer diameter.Guidance for specification option: Overall diameter. Compatible with:
151 mm; 75 mm pipe outer diameter.Guidance for specification option: Overall diameter. Compatible with:
|
Integral accessories | EPDM sealing rings. |
Dimensions | 253 mm. Guidance for specification option: Overall height: 253 mm as standard; ventilation pipe can be shortened on site as required. Overall diameter is dependent on model compatibility required: see Spigots guidance for details. Manufacturer guidanceConsult manufacturer's literature for full details. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Polyurethane (PUR) Aluminium Rubber Polyamide High density polyethylene (HDPE) |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 13.4 kg CO₂ eq/unit |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
TUV - Safety and Quality Report
LGA Certification - EN 1253-2:2015
EPD
Sita Flat-Roof Outlets – EPD
Literature
SitaRetention Refurbishment Outlets - Installation Instructions
