Sink Bowl LD34 - Double Stainless Steel Bowls
Verified by manufacturer 16 days ago
Double stainless steel sink bowls.
Application
Suitable for varied applications including public, commercial, industrial, domestic and anti-vandal environments.
Description
Double stainless steel sink bowls for incorporating in a stainless steel worktop.
Features and benefits:
- Easy to maintain.

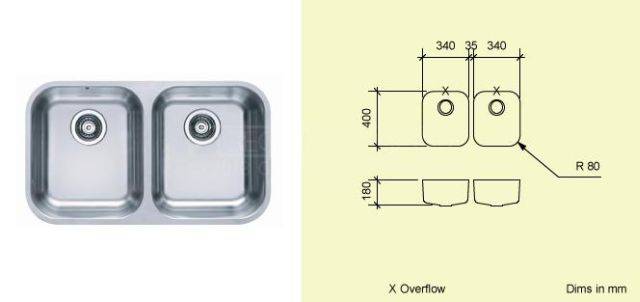

- Internal bowl size x 2 (L x W x D): 400 x 340 x 180 mm.
- Features a 80 mm corner radius.
- EN 1.4301 brushed satin stainless steel.
- 89 mm diameter hole with basket strainer waste, with option for 38 mm diameter waste, plug and chain.
- No tap or chainstay.
- Overflow as standard, with option for no overflow.
General information
Color | Silver |
Finish | Brushed Satin |
Material | Stainless steel Guidance for specification option: Stainless steel to EN 1.4301. Steel Plastic |
Shape | Rectangle |
Length | 400 mm |
Width | 715 mm |
Height | 180 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/331 Sinks N13/25 Sinks |
Product range |
Specification data - Sinks
Standard | To BS EN 274-1, BS EN 274-2 and BS EN 274-3. |
Form | Inset.Guidance for specification option: Flat flange required. Under-mounted.Guidance for specification option: Flat flange required. |
Bowls | Two. |
Drainers | None. |
Materials | |
Body | Stainless steel type 1.4301 (304) to BS EN 10088-1. |
Finish and colour | Brushed satin. |
Size | 400 x 1035 x 200 mm.Guidance for specification option: L x W x D. Manufacturer guidanceNon-standard sizes available to order, insert requirement. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Overflow hole.Guidance for specification option: As standard. No overflow hole.Guidance for specification option: Optional with plug-waste. |
Waste | Centre, 89 mm Ø with BSW, plastic and stainless steel.Guidance for specification option: As standard. Centre, 38 mm Ø with plug-waste, plastic.Guidance for specification option: Optional. Manufacturer guidanceBSW: Basket strainer waste. |
Flanges | Not required. 20 mm flat flange. |
Sustainability data
Contains Red List materials | No |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
