Sink Bowl A40 - Single Stainless Steel Kitchen Sink
Verified by manufacturer 19 days ago
Single stainless steel sink bowl.
Application
For incorporating into a stainless steel worktop.
Suitable for:
Worktops
Kitchens
Commercial Projects
Sinktops
Combination Bowl
Sink With Drainer
Description
Single stainless steel sink bowl for incorporating into a stainless steel worktop.
Features and benefits:
- Easy to maintain.
- Available with a 20 mm flat flange for under-mount, over-mount or flush-mount fixing.

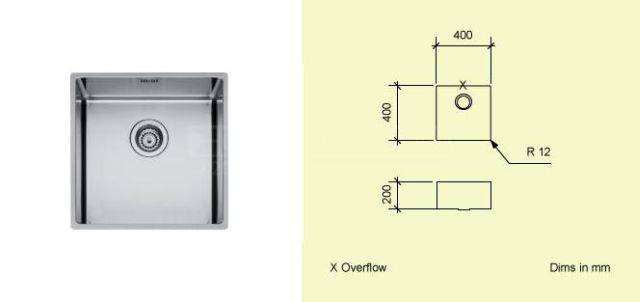

- Internal bowl size (L x W x D): 400 x 400 x 200 mm.
- Features a 12 mm corner radius.
- EN 1.4301 brushed satin stainless steel.
- 89 mm diameter hole with basket strainer waste and overflow.
General information
Color | Silver |
Finish | Brushed Satin |
Material | Stainless steel Guidance for specification option: BS EN 1.4301 brushed satin stainless steel. Steel Plastic |
Shape | Rectangle |
Length | 400 mm |
Width | 400 mm |
Height | 200 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/331 Sinks N13/25 Sinks |
Product range |
Specification data - Sinks
Standard | To BS EN 274-1, BS EN 274-2 and BS EN 274-3. |
Form | Inset.Guidance for specification option: Flange not required. Sit-on.Guidance for specification option: Flange required. Under-mounted.Guidance for specification option: Flange required. Flush fit.Guidance for specification option: Flange required. |
Bowls | One. |
Drainers | None. |
Materials | |
Body | Stainless steel type 1.4301 (304) to BS EN 10088-1. |
Finish and colour | Brushed satin. |
Size | 400 x 400 x 200 mm.Guidance for specification option: L x W x D. Manufacturer guidanceNon-standard sizes available to order, insert requirement. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Overflow hole.Guidance for specification option: As standard. Combined chainstay and overflow hole.Guidance for specification option: Optional with plug-waste. |
Waste | Centre, 89 mm Ø with BSW, plastic and stainless steel.Guidance for specification option: As standard. Centre, 38 mm Ø with plug-waste, plastic.Guidance for specification option: Optional. Manufacturer guidanceBSW: Basket strainer waste. |
Flange | Not required. 20 mm flat flange. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
GEC Anderson Combined Product Literature- The Complete Range Overview with Detailed Specification Data, Examples, Applications, History & Insight into GEC Anderson Stainless Steel
GEC Anderson Data Sheet - Series A sink: A40
