Series A Double - Sinks - Stainless Steel Sink Bowl Combination
Verified by manufacturer 2 months ago
Stainless steel sink bowl combination.
Application
Can be integrated with stainless steel worktops.
Suitable for:
Worktops
Kitchens
Commercial Projects
Sinktops
Combination Bowl
Sink With Drainer
Description
Double stainless steel sink bowl.
Features and benefits:
- For incorporating in a stainless steel worktop.
- Suitable for inset, under and flush-mount installation.
- Features a 15 mm corner radius.
- 20 mm flat flange (10 mm corner radius).
- Custom sizes available.
General information
Color | Silver Grey |
Finish | Satin Brushed |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | 440 mm |
Width | 745 mm |
Height | 200 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/331 Sinks N13/25 Sinks |
Product range |
Specification data - Sinks
Standard | To BS EN 1.4301, BS EN 274-1 and BS EN 274-2. |
Form | Inset.Under-mounted.Flush fit. |
Bowls | Two. |
Drainers | None. |
Materials | |
Body | Stainless steel type 1.4301 (304) to BS EN 10088-1. |
Finish and colour | Brushed satin. |

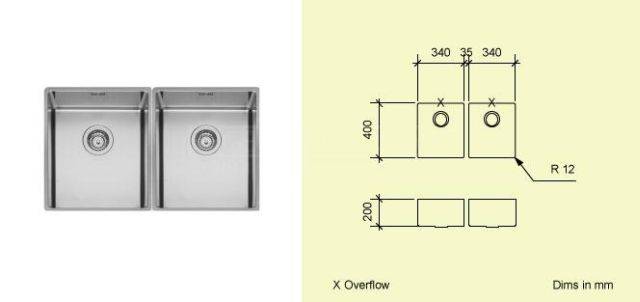

Size | 440 x 745 x 200 mm.Guidance for specification option: L x W x H. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Chainstay hole. |
Waste | Centre. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
 IFC | - | 1 |
Literature
GEC Anderson Combined Product Literature- The Complete Range Overview with Detailed Specification Data, Examples, Applications, History & Insight into GEC Anderson Stainless Steel
GEC Anderson Data Sheet - Series A sink: A1831
GEC Anderson Data Sheet - Series A sink: A1831T
GEC Anderson Data Sheet - Series A sink: A1834

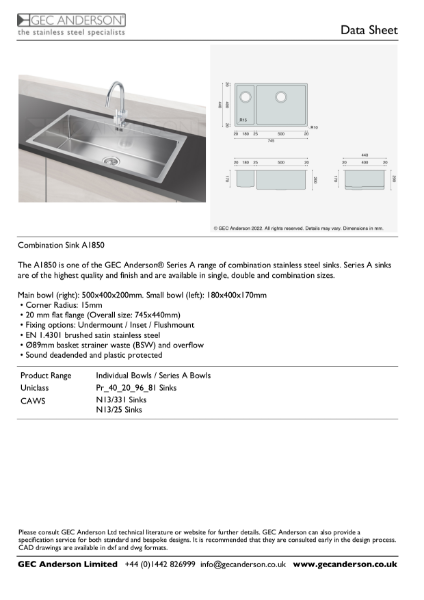

GEC Anderson Data Sheet - Series A sink: A1850
GEC Anderson Data Sheet - Series A sink: A2350

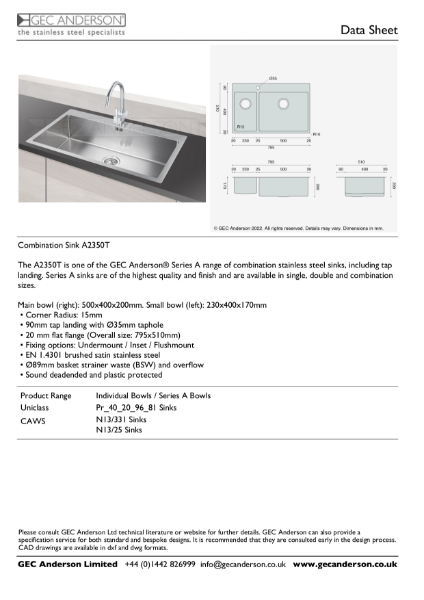

GEC Anderson Data Sheet - Series A sink: A2350T
GEC Anderson Data Sheet - Series A sink: A3118
GEC Anderson Data Sheet - Series A sink: A3118T

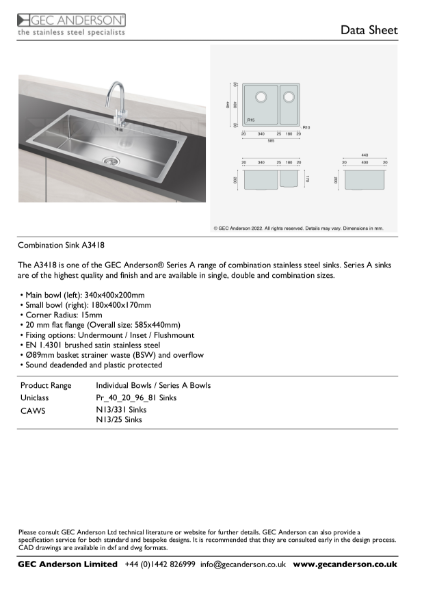

GEC Anderson Data Sheet - Series A sink: A3418
GEC Anderson Data Sheet - Series A sink: A5018

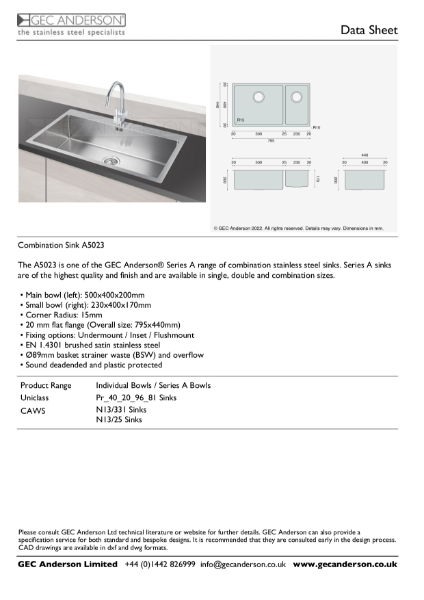

GEC Anderson Data Sheet - Series A sink: A5023
