Sink Bowl A45 - Single Stainless Steel

Verified by manufacturer 2 months ago

Anderson, GEC Ltd

Single stainless steel sink bowl.

Jump to:
+44 (0)1442 826999 Website

Application

Suitable for incorporating into a stainless steel worktop.


Suitable for:

Worktops

Kitchens

Commercial Projects

Sinktops

Combination Bowl

Sink With Drainer

Description

Single stainless steel sink bowl for incorporating in a stainless steel worktop.


Features and benefits:

  • Easy to maintain.
  • Available with a 20 mm flat flange for under-mount, over-mount or flush-mount fixing.

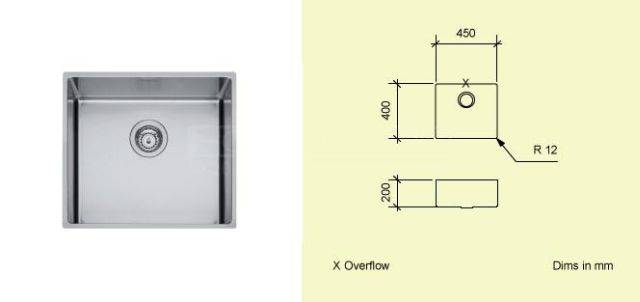

  • Internal bowl size (L x W x D): 400 x 450 x 200 mm.
  • Features a 12 mm corner radius.
  • EN 1.4301 brushed satin stainless steel.
  • 89 mm diameter hole with basket strainer waste and overflow.

General information

Color

Silver

Finish

Brushed

Satin

Material

Stainless steel

Guidance for specification option:

BS EN 1.4301 brushed satin stainless steel.

Steel

Plastic

Shape

Rectangle

Length

400 mm

Width

450 mm

Height

200 mm

Warranty description

Five year

Uniclass

Pr_40_20_96_81 SinksPrimary

CAWS

N13/331 Sinks

N13/25 Sinks

Product range

Made to Measure / Bowls

Specification data - Sinks

Standard

To BS EN 274-1, BS EN 274-2 and BS EN 274-3.

Form

Inset.

Guidance for specification option:

Flange not required.

Sit-on.

Guidance for specification option:

Flange required.

Under-mounted.

Guidance for specification option:

Flange required.

Flush fit.

Guidance for specification option:

Flange required.

Bowls

One.

Drainers

None.

Materials

-

Body

Stainless steel type 1.4301 (304) to BS EN 10088-1.

Finish and colour

Brushed satin.

Size

400 x 450 x 200 mm

Guidance for specification option:

L x W x D.

Manufacturer guidance

Non-standard sizes available to order, insert requirement.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Overflow

Overflow hole.

Guidance for specification option:

As standard.

Combined chainstay and overflow hole.

Guidance for specification option:

Optional with plug-waste.

Waste

Centre, 89 mm Ø with BSW, plastic and stainless steel.

Guidance for specification option:

As standard.

Centre, 38 mm Ø with plug-waste, plastic.

Guidance for specification option:

Optional.

Manufacturer guidance

BSW: Basket strainer waste.

Flange

Not required.

20 mm flat flange.

Sustainability data

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
