Select Access® Z Plate Guardrail
Description

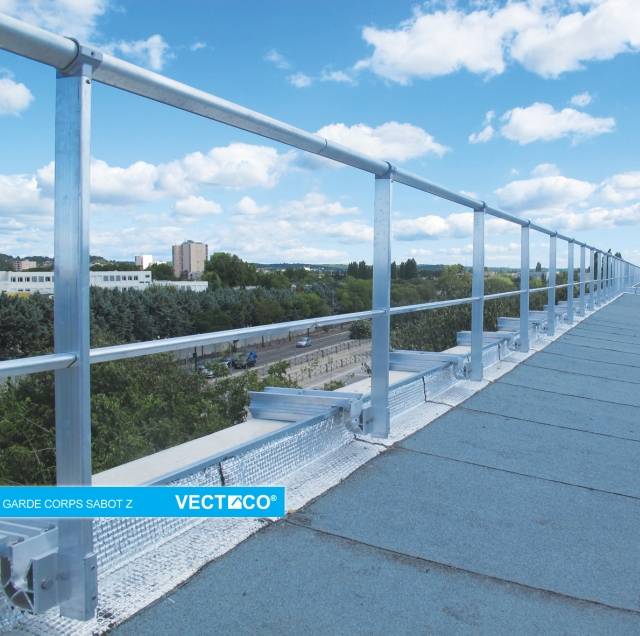

Top fixed guardrail system protecting against fall from height, available in straight, curved, inclined and foldable versions. It is the best solution for fixing to the top of the parapet and is used to retain the waterproofing system of the roof.

It has been designed for a quick and simple set-up, notably thanks to the swage handrails and middle rail. Compliant with BS EN ISO 14122-3.

General information

Material

Aluminium

Uniclass 2015

Ss_25_15_60_53 Metal pedestrian parapet systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

L35/170 Guarding system

Specification data - Metal pedestrian parapet systems

Product Reference

VZ-C1

Curved.

VZ-C2

Curved, includes middle rail.

VZ-D1

Straight.

VZ-D2

Straight, includes middle rail.

VZ-i1

Inclined.

VZ-i2

Inclined, includes middle rail.

VZ-R1

Foldable.

VZ-R2

Foldable, includes middle rail.

Arrangement

As drawing

Insert drawing reference.

Finish/ Colour

Anodized

Mill

Powder coated

Insert RAL colour requirement.

Standard product features

Height:

1000–1100 mm.

Length:

Available in 3 m lengths.

Material:

Aluminium.

Middle rail spacing (maximum):

500 mm.

Fixing:

Z-shaped base anchor-fixed to top of parapet.

Upright spacing (maximum):

1500 mm (500 mm from an edge/ corner).
