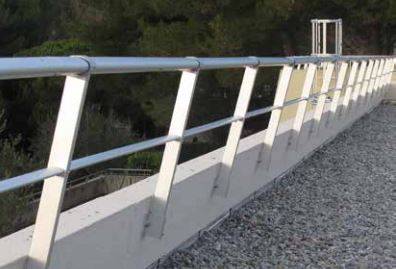

Parapet Guardrail
Verified by manufacturer over a year ago

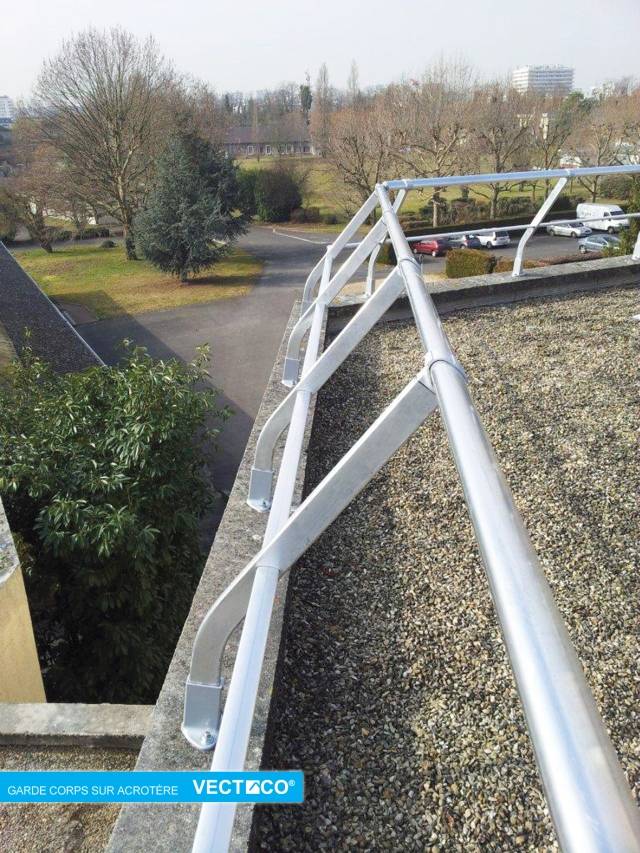

The wall fixture guardrail VECTACO® is a collective protective system against falls from height
Description
Parapet fixed guardrail system protecting against fall from height, available in straight, curved and inclined versions. It has been designed for a quick and simple set-up, notably thanks to the swage handrails and middle rail. The guardrail can be fixed inside or outside the parapet. Compliant with BS EN ISO 14122-3.
General information
Material | Aluminium |
Uniclass | |
CAWS | L30/55 Proprietary balustrades L30/560 Proprietary balustrades L35/170 Guarding system |
SKU Code | unknown |
Specification data - Metal pedestrian parapet systems
Product Reference | VA-C1 Guidance for specification option: Curved. VA-C2 Guidance for specification option: Curved, includes middle rail. VA-C3 Guidance for specification option: Curved, includes middle rail and toeboard (20 x 100 mm). VA-D1 Guidance for specification option: Straight. VA-D2 Guidance for specification option: Straight, includes middle rail. VA-D3 Guidance for specification option: Straight, includes middle rail and toeboard (20 x 100 mm). VA-i1 Guidance for specification option: Inclined. VA-i2 Guidance for specification option: Inclined, includes middle rail. VA-i3 Guidance for specification option: Inclined, includes middle rail and toeboard (20 x 100 mm). |
Arrangement | As drawing Guidance for specification option: Insert drawing reference. |
Finish/ Colour | Anodized Mill Powder coated Guidance for specification option: Insert RAL colour requirement. |
Standard product features | Height: 1000–1100 mm. Length: Available in 3 m lengths. Material: Aluminium. Middle rail spacing (maximum): 500 mm. Fixing: Base anchor-fixed to side of parapet. Upright spacing (maximum): 1500 mm (500 mm from an edge/ corner). |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
