Description

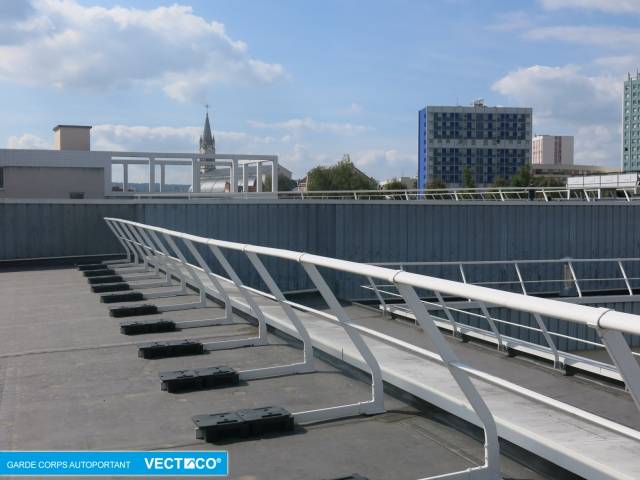

Freestanding 30° inclined guardrail system protecting against fall from height. It is the best solution to secure roof areas when it is technically not possible to fix the guardrail to either a parapet wall or concrete slab.

The system overcomes the problem of having to drill the roof membrane and has been designed for a quick and simple installation, notably thanks to the swage handrails and middle rails.

The plastic 12.5 kg counterweights and clipped pads ensure a complete protection of the waterproofing. The guardrail can be also used to secure skylights or to demark working or evacuation areas. Compliant with BS EN ISO 14122-3.

General information

Material

Aluminium

Uniclass

Ss_25_15_60_53 Metal pedestrian parapet systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

L35/170 Guarding system

Specification data - Metal pedestrian parapet systems

Product Reference

VAP-i2

VAP-i3

Guidance for specification option:

Includes toeboard, 20 x 100 mm.

Arrangement

As drawing

Guidance for specification option:

Insert drawing reference.

Finish/ Colour

Anodized

Mill

Powder coated

Guidance for specification option:

Insert RAL colour requirement.

Safety gate

Not required

Required

Guidance for specification option:

500 mm high.

Standard product features

Height:

1000–1100 mm.

Length:

Available in 3 m lengths.

Material:

Aluminium.

Middle rail spacing (maximum):

500 mm.

Upright/ counterweight spacing (maximum):

1500 mm (750 mm from an edge/ corner).
