Folding Guardrail

Verified by manufacturer over a year ago

Select Access Premier Solutions

The VECTACO® foldable guardrail system can be installed on the entire range of collective protection solutions.

Jump to:
BIM object icon
+353 (0)1 485 3945 Website

Description

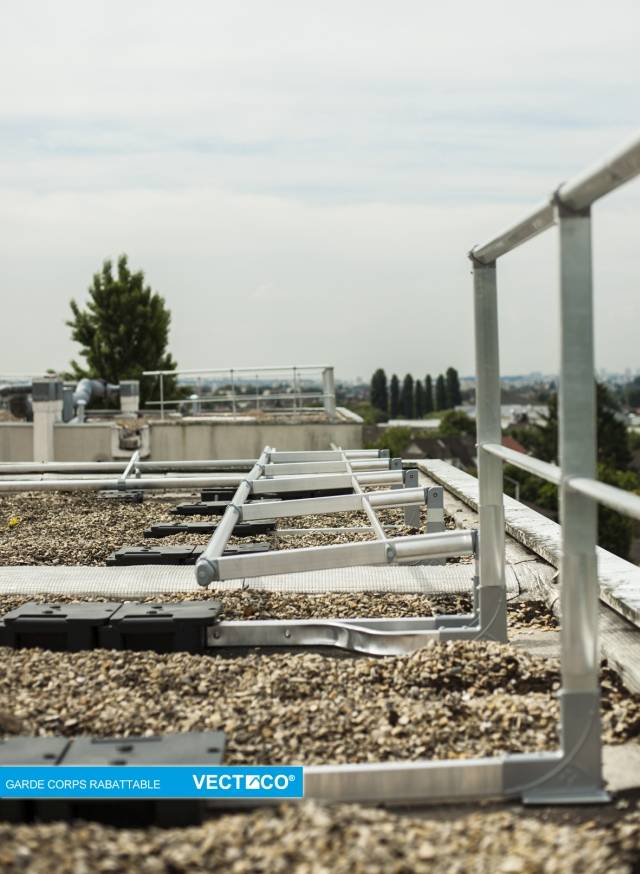

Freestanding folding guardrail system protecting against fall from height. It is the best solution to secure terraces when it is technically not possible to fix the guardrail to either a parapet wall or concrete slab.

The system overcomes the problem of having to drill the roof membrane and has been designed for a quick and simple installation, notably thanks to the swage handrails and middle rails.

The plastic 12.5 kg counterweights and clipped pads ensure a complete protection of the waterproofing. The guardrail can be also used to secure skylights or to demark working or evacuation areas. Compliant with BS EN ISO 14122-3.

General information

Material

Aluminium

Uniclass

Ss_25_15_60_53 Metal pedestrian parapet systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

L35/170 Guarding system

Specification data - Metal pedestrian parapet systems

Product Reference

VAP-R2

VAP-R3

Guidance for specification option:

Includes toeboard, 20 x 100 mm.

Arrangement

As drawing

Guidance for specification option:

Insert drawing reference.

Finish/ Colour

Anodized

Mill

Powder coated

Guidance for specification option:

Insert RAL colour requirement.

Safety gate

Not required

Required

Guidance for specification option:

500 mm high.

Standard product features

Height:

1000–1100 mm.

Length:

Available in 3 m lengths.

Material:

Aluminium.

Middle rail spacing (maximum):

500 mm.

Upright/ counterweight spacing (maximum):

1500 mm (750 mm from an edge/ corner).

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
