Select Access® Metal Deck Guardrail
Description

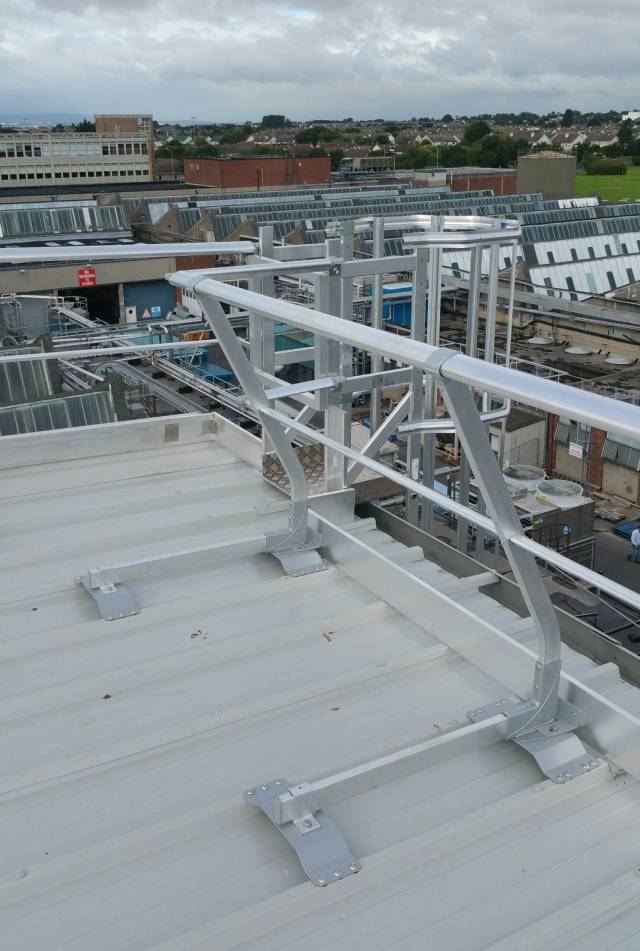

Metal deck roof fixed guardrail system protecting against fall from height, available in straight, curved, inclined and foldable versions. The guardrail is designed to be used on metal roof decks with centre spans of 250–333 mm.

It has been designed for a quick and simple set-up, notably thanks to the swage handrails and middle rail. Compliant with BS EN ISO 14122-3.

General information

Material

Aluminium

Uniclass 2015

Ss_25_15_60_53 Metal pedestrian parapet systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

L35/170 Guarding system

Specification data - Metal pedestrian parapet systems

Product Reference

VBA-C2

Curved, includes middle rail.

VBA-C3

Curved, includes middle rail and toeboard.

VBA-D2

Straight, includes middle rail.

VBA-D3

Straight, includes middle rail and toeboard.

VBA-i2

Inclined, includes middle rail.

VBA-i3

Inclined, includes middle rail and toeboard.

VBA-R2

Foldable, includes middle rail.

VBA-R3

Foldable, includes middle rail and toeboard.

Arrangement

As drawing

Insert drawing reference.

Finish/ Colour

Anodized

Mill

Powder coated

Insert RAL colour requirement.

Standard product features

Height:

1000–1100 mm.

Length:

Available in 3 m lengths.

Material:

Aluminium.

Middle rail spacing (maximum):

500 mm.

Fixing:

Assembly fixed to roof deck with stainless steel self-drilling screws.

Upright spacing (maximum):

1500 mm (500 mm from an edge/ corner).
