Select Access® Top Fixed Guardrail

Name: Select Access® Top Fixed Guardrail
Brand: 26tWdoye63NJQFYQET933
SKU: f4chVXQ9UpJugPV8UXuz8s

Select Access Premier Solutions

Parapet fixed guardrail.

Jump to:

+353 (0)1 4642534 www.selectaccess.ie

Description

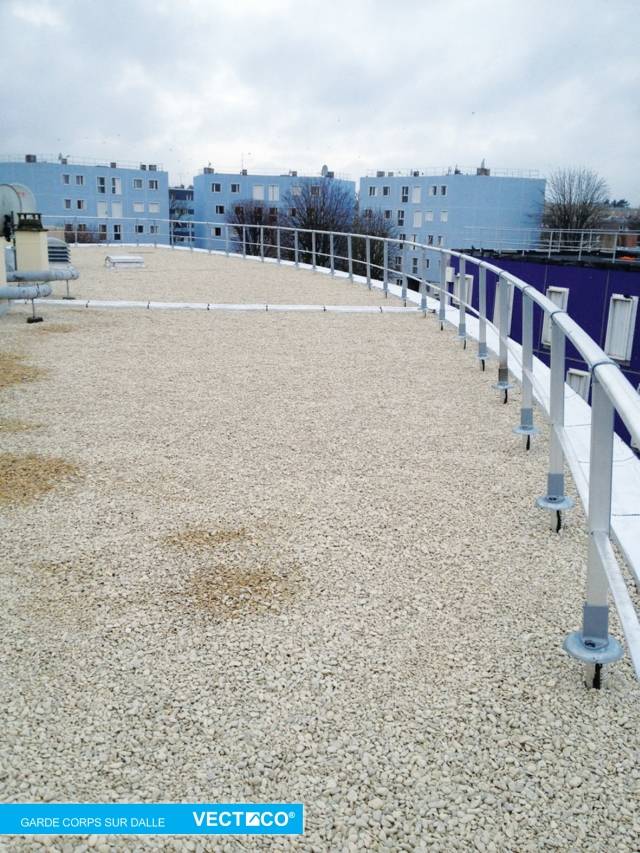

Top fixed guardrail system protecting against fall from height, available in straight, curved and inclined versions. It is the best solution to provide safety to terraces and has been designed for a simple and fast installation thanks to the rail and middle rail connectors. Compliant with BS EN ISO 14122-3.

General information

Material	Aluminium
Uniclass 2015	Ss_25_15_60_53 Metal pedestrian parapet systemsPrimary
CAWS	L30/55 Proprietary balustrades L30/560 Proprietary balustrades L35/170 Guarding system

Specification data - Metal pedestrian parapet systems

Product Reference

VS-C1

Curved.

VS-C2

Curved, includes middle rail.

VS-C3

Curved, includes middle rail and toeboard (20 x 100 mm).

VS-D1

Straight.

VS-D2

Straight, includes middle rail.

VS-D3

Straight, includes middle rail and toeboard (20 x 100 mm).

VS-i1

Inclined.

VS-i2

Inclined, includes middle rail.

VS-i3

Inclined, includes middle rail and toeboard (20 x 100 mm).

Arrangement

As drawing

Insert drawing reference.

Finish/ Colour

Anodized

Mill

Powder coated

Insert RAL colour requirement.

Standard product features	Height: 1000–1100 mm. Length: Available in 3 m lengths. Material: Aluminium. Middle rail spacing (maximum): 500 mm. Fixing: Base anchor-fixed to top of parapet. Upright spacing (maximum): 1500 mm (500 mm from an edge/ corner).
