Revolution 54 SG Partition, Offset - Panel Partitions

Name: Revolution 54 SG Partition, Offset - Panel Partitions
Brand: Optima
SKU: 5S3z7p1cEyVLVG6MdRyEa2

Verified by manufacturer 5 months ago

Optima

Third party certifications:

BM Trada
Certificate type

Single-glazed partition system with high acoustic performance and aesthetic appeal.

Jump to:

+44 (0)1494 492725 Website

Application

Suitable for office buildings and workplace environments.

Description

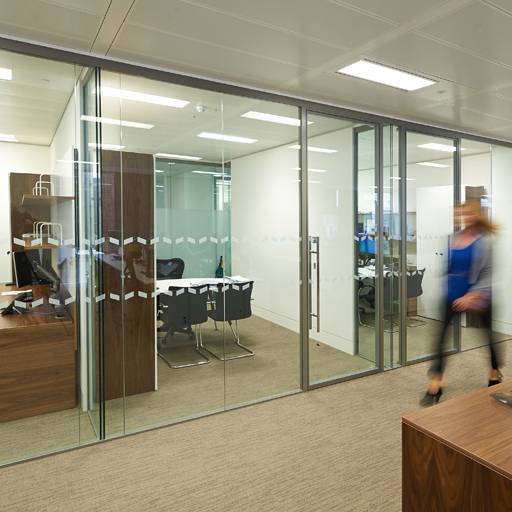

The acoustic performance, aesthetic appeal and adaptability of Revolution 54 Plus make it one of the most popular Optima systems. It can be single or double glazed and in its single glazed form the glazing can be offset or centred, to suit the desired aesthetic.

Features and benefits:

Integrates with generic drywall via an aluminium tapeable glazing bar, making it a suitable solution for glazed fins or clerestory glazing, where acoustic performance and design aesthetics cannot be compromised.
Available in two distinct designs, distinguished by the height of the frame; either 54 mm (w) x 25 mm (h) or 54 mm (w) x 50 mm (h) extrusions. Both inner and outer deflection heads are available, to suit your design intent, and each style can accommodate up to +/-25 mm or up to +/-40 mm deflection.
The aluminium base channel can either be 25 mm or 50 mm deep, depending upon your desired aesthetic.
Can accommodate glass panels up to 1500 mm wide, subject to height, configuration, and site logistics.
The use of dry-glaze gaskets in the Revolution 54 Plus single glazed system makes it quick and easy to install, without compromising on durability, aesthetics or acoustic performance.
A number of discreet glass to glass dry joints are available, including clear PETG, flush aluminium, taped, or the virtually invisible patented Nebula™ joint.
Laboratory tested for acoustic performance in a UKAS accredited laboratory and full test reports are available upon request.
Revolution 54 Plus single glazing can achieve 33 dB (Rw) with 12 mm toughened glass and 38 dB (Rw) with 12.8 mm thick acoustic laminated glass.
Can integrate with any Optima pivoting glass doors, along with 44 mm thick timber doors and 54 mm thick rebated timber doors.

Consult with manufacturer for further information.

General information

Color	Silver White Other
Finish	Anodized Glazed Grained Polished Powder-coated
Material	Glass Aluminium
Warranty description	Ten year Guidance for specification option: See Warranty Policy literature for more information.

Uniclass	Pr_25_71_57_60 Partition panelsPrimary
CAWS	K30/10 Relocatable partition system K30/130 Relocatable partition system

Product range	Partitions

Specification data - Partition panels

Third party accreditation	BM Trada certified.
Unit size	-
Thickness	50 mm face and leaf set.
Partition height (nominal)	Guidance for specification option: Insert floor to ceiling requirement, available up to 3000 mm.
Deflection allowance (maximum)	-
Head	054002-02 – 90 mm deep offset glazed (±25 mm deflection – internal). 054002-03 – 90 mm deep central glazed (±25 mm deflection – internal). 054002-04 – Door head. 054003-02 – 94 mm deep offset glazed (±25 mm deflection - external). 054003-03 – 94 mm deep central glazed (±25 mm deflection - external). 054003-04 – Door head. 054004-02 – 137 mm deep offset glazed (±40 mm deflection - internal). 054004-03 – 137 mm deep central glazed (±40 mm deflection - internal). 054004-04 – Door head. 054005-02 – 140 mm deep offset glazed (±40 mm deflection - external). 054005-03 – 140 mm deep central glazed (±40 mm deflection - external). 054005-04 – Door head. 054006-02 – 25 mm deep offset glazed (no deflection). 054006-03 – 25 mm deep central glazed (no deflection). 054006-04 – Door head. 054007-02 – 50 mm deep offset glazed (no deflection). 054007-03 – 50 mm deep central glazed (no deflection). 054007-04 – Door head.
Floor	054008-02. Guidance for specification option: 25 mm deep offset glazed. 054008-03. Guidance for specification option: 25 mm deep central glazed. 054009-05. Guidance for specification option: 50 mm deep offset glazed. 054009-06. Guidance for specification option: 50 mm deep central glazed.
Verticals	054010-02 – 25 mm deep offset glazed. 054010-03 – 25 mm deep central glazed. 054011-02 – 25 mm deep offset glazed with clip-on beads. 054011-03 – 25 mm deep central glazed with clip-on beads. 054012-02 – 50 mm deep offset glazed. 054012-03 – 50 mm deep central glazed. 054013-02 – 50 mm deep offset glazed with clip-on beads. 054013-03 – 50 mm deep central glazed with clip-on beads. 054013-04 – Door frame spacer for D450 frame. 054014-02 – ±25 mm horizontal deflection offset glazed. 054014-03 – ±25 mm horizontal deflection central glazed. 054032-01 – Tapeable glazing bar to 122 mm generic drywall, central glazed. 054033-02 – Tapeable glazing bar to 122 mm generic drywall, offset glazed. 054034-02 – Tapeable glazing bar to 100 mm generic drywall, offset glazed. 054035-01 – Tapeable glazing bar to 100 mm generic drywall, central glazed.
Panel partition type	Single glazed glass. Guidance for specification option: Select option under 'Glazing panels' below.
Framing, junctions, corners	054037-01. Guidance for specification option: Nebula™ in-line joint. 054037-02. Guidance for specification option: SA aluminium in-line joint. 054037-03. Guidance for specification option: Ghost in-line joint. 054037-04. Guidance for specification option: Taped in-line joint. 054037-05. Guidance for specification option: Mitred and taped 90° corner joint. 054037-06. Guidance for specification option: SA aluminium 90° corner joint. 054037-07. Guidance for specification option: Ghost 90° corner joint. 054037-08. Guidance for specification option: Taped 90° corner joint. 054038-01. Guidance for specification option: Taped three-way joint. 054038-02. Guidance for specification option: Nebula™ three-way joint. 054038-03. Guidance for specification option: Taped three-way to aluminium in-line joint. 054038-04. Guidance for specification option: SA aluminium three-way joint. 054038-05. Guidance for specification option: Ghost three-way joint.
Joint treatment	-
Type	Aluminium extruded track sections. Manufacturer guidance (Framing):
Finish and colour	Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal).
Glazed panels	-
Type	10 mm toughened glass. Guidance for specification option: 32 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 10.8 mm acoustic laminate glass. Guidance for specification option: 37 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 10.8 mm laminate glass. Guidance for specification option: 35 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 12 mm toughened glass. Guidance for specification option: 33 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 12.8 mm acoustic laminate glass. Guidance for specification option: 38 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 12.8 mm laminate glass. Guidance for specification option: 36 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1.
Door arrangement	-
Type	Frame and door leaf system.
Door frames	Aluminium. Guidance for specification option: Integral Microflush D450 aluminium door frame.
Door leafs	-
Type	AXILE Clarity frameless single-glazed leaf on lift-off hinges. Guidance for specification option: 32 dB (Rw). AXILE Clarity frameless single-glazed leaf on offset quad pivots. Guidance for specification option: 32 dB (Rw). EDGE Affinity double-glazed leaf on offset pivots/ hinges. Guidance for specification option: 42 dB (Rw). EDGE Affinity single-glazed leaf on offset pivots/ hinges. Guidance for specification option: 39 dB (Rw). EDGE Flush double-glazed leaf on offset pivots. Guidance for specification option: 37 dB (Rw). EDGE Symmetry double-glazed leaf on offset pivots/ hinges. Guidance for specification option: 41 dB (Rw). EDGE Symmetry single-glazed leaf on offset pivots/ hinges. Guidance for specification option: 35 dB (Rw). Timber 44 mm leaf on offset pivots/ hinges. Guidance for specification option: 31 dB (Rw). Timber 54 mm rebated leaf on offset pivots/ hinges. Guidance for specification option: 33 dB (Rw).
Hardware	Guidance for specification option: Insert requirements; contact manufacturer for more information.
Cable management and outlets	054025-01. Guidance for specification option: 100 mm metal faced with hinged access door (colour to match rest of system). 054025-02. Guidance for specification option: 100 mm timber with hinged access door (insert veneer surface finish). 054025-03. Guidance for specification option: 100 mm back-painted glass with hinged access door (insert back-paint colour). 054028-01. Guidance for specification option: 54 mm metal faced with hinged access door (colour to match rest of system). 054028-02. Guidance for specification option: 54 mm timber with hinged access door (insert veneer surface finish). 054028-03. Guidance for specification option: 54 mm back-painted glass with hinged access door (insert back-paint colour). 054301-01. Guidance for specification option: 100 mm back-painted glass with mullion interface to screen (insert back-paint colour). 054031-02. Guidance for specification option: 100 mm back-painted glass with Nebula™ interface to screen (insert back-paint colour).

Manifestation	Guidance for specification option: Insert requirements; contact manufacturer for more information.
Configuration	As schedule. As drawing. Guidance for specification option: Insert drawing reference number.
StrengthGrade	Congested office space – 0.74 kN/m line load. Public access space – 0.74 kN/m line load. Public access space – 1.50 kN/m line load. Uncongested office space – 0.36 kN/m line load. Manufacturer guidance Duty rating (to BS 5234-2):
Locking	Not required. Magnetic latch. Secure near-field electronic latch.
Accessories	Guidance for specification option: Insert requirements; contact manufacturer for more information.
Sustainability requirements	Not required. BREEAM 'A' rating. SKA Good Practice Measure M09 compliant.

Sustainability data

Contains Red List materials	Yes
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	46.7 kg CO₂ eq/m² Self declared Guidance for specification option: See Environmental Product Declaration for detailed LCA data.

BIM objects

Platform	Compatible	Version
Revit	Revit 2017	1

Third party certifications

BM Trada

009109 (3) - ISO 14001 - Optima Products Limited

BM Trada

000016 (4) - ISO 9001 - Optima Products Limited

Literature

Optima Revolution 54 Plus Product Summary

000005 (3) - Warranty - Company Policy
