Revolution 54 Plus - Relocatable Partition System

Verified by manufacturer 4 months ago

Revolution 54 Plus - 10 mm toughened glass

Optima Variant:
Third party certifications:
  • UKAS

    UKAS

    Certificate type

  • LEED (Canada)

    LEED (Canada)

    Certificate type

  • BREEAM - Certification

    Certificate type

  • BM Trada

    BM Trada

    Certificate type

  • SKA Rating

    SKA Rating

    Certificate type

  • WELL Building Standard

    WELL Building Standard

    Certificate type

Single or double glazed, relocatable partition system.

Jump to:
+44 (0)1494 492725 Website

Application

For use in a range of application areas including offices.

Description

Single or double glazed relocatable partition system.


Features and benefits:

  • Slimline mullion-free double glazed system.
  • Dry jointed and fully demountable.
  • Aluminium framework.
  • Fully integrates with Revolution 54 Plus single glazing and Optima 117 plus single glazing.
  • Numerous door options.
  • Maximum tested acoustic rating of Rw 46 dB using 2 layers of 12.8 mm acoustic laminated glass in multi-module screen.
  • Can accommodate up to ±40 mm deflection.

General information

Color

Black

White

Silver

Other

Finish

Powder-coated

Anodized

Grained

Polished

Material

Glass

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

-

Manufacturer guidance

See manufacturer's warranty document.

Uniclass

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/130 Relocatable partition system

K30/10 Relocatable partition system

Product range

Revolution 54 Plus

Specification data - Partition panels

Third-party certification

System to conform to the requirements of BREEAM.

Guidance for specification option:

Satisfies a rating of A+ against Green Guide Ratings 2008 – Ref. Sustainability Statement 054303/ 054301.

System to conform to the requirements of SKA.

Guidance for specification option:

Compliant with Good Practice Measure M09 – Ref. Sustainability Statement 054300.

Unit size

-

Thickness

-

Manufacturer guidance

Insert requirement or refer to Optima for details.

Partition height (nominal)

-

Manufacturer guidance

Insert floor to ceiling height. Maximum standard height 3000 mm.

Width (nominal)

-

Manufacturer guidance

Insert requirement or refer to Optima for details.

Deflection allowance (maximum)

-

Head

25 mm deep x 54 mm wide Offset glazed (no deflection).

25 mm deep x 54 mm wide Central glazed (no deflection).

50 mm deep x 54 mm wide Offset glazed (no deflection).

50 mm deep x 54 mm wide Central glazed (no deflection).

94 mm deep Offset glazed (±25 mm deflection – external).

94 mm deep Central glazed (±25 mm deflection – external).

140 mm deep Offset glazed (±40 mm deflection – external).

140 mm deep Central glazed (±40 mm deflection – external).

125 mm deep (±25 mm deflection – drywall).

140 mm deep (±40 mm deflection – drywall).

Floor

25 mm deep x 54 mm wide, Offset glazed.

25 mm deep x 54 mm wide, Central glazed.

50 mm deep x 54 mm wide, Offset glazed.

50 mm deep x 54 mm wide, Central glazed.

Verticals

25mm deep x 54 mm wide Offset glazed.

25mm deep x 54 mm wide Central glazed.

25mm deep x 54 mm wide Offset glazed with clip-on beads.

25mm deep x 54 mm wide Central glazed with clip-on beads.

50mm deep x 54 mm wide Offset glazed.

50mm deep x 54 mm wide Central glazed.

50mm deep x 54 mm wide Offset glazed with clip-on beads.

50mm deep x 54 mm wide Central glazed with clip-on beads.

Door Frame Spacer for D450 Frame.

±25mm horizontal deflection Offset Glazed.

Guidance for specification option:

94 mm deep x 58 mm wide.

±25mm horizontal deflection Central Glazed.

Guidance for specification option:

94 mm deep x 58 mm wide.

Panel partition type

Relocatable.

Framing, fixing points and joints

Aluminium extruded track sections.

Glazed panels

-

Type

Single-glazed, 10 mm toughened glass

Additional features

Not required.

Tapeable glazing bar to 100 mm generic drywall Offset glazed.

Tapeable glazing bar to 100 mm generic drywall Central glazed.

Tapeable glazing bar to 122 mm generic drywall Offset glazed.

Tapeable glazing bar to 122 mm generic drywall Central glazed.

Door arrangement

-

Type

AXILE Clarity frameless single glazed leaf on offset Quad pivots.

Guidance for specification option:

Lab Tested to 32 dB (Rw) with suitable threshold seal - See Performance Certificate 900185.

AXILE Clarity frameless single glazed leaf on lift-off hinges.

Guidance for specification option:

Lab Tested to 32dB (Rw) with drop seal – See Performance Certificate 900253.

EDGE Symmetry single glazed leaf on offset pivots/hinges.

Guidance for specification option:

Lab Tested to 35dB (Rw) – See Performance Certificate 900254.

If door leaf needs to incorporate Shoreditch Edition® features to complement partition, insert requirements.

EDGE Symmetry double glazed leaf on offset pivots/hinges.

Guidance for specification option:

Lab Tested to 41dB (Rw) – See Performance Certificate 900256.

If door leaf needs to incorporate Shoreditch Edition® features to complement partition, insert requirements.

EDGE Affinity single glazed leaf on offset pivots/hinges.

Guidance for specification option:

Lab Tested to 39dB (Rw) – See Performance Certificate 900257.

EDGE Affinity double glazed leaf on offset pivots/hinges.

Guidance for specification option:

Lab Tested to 42dB (Rw) – See Performance Certificate 900258.

Timber 44 mm leaf on offset pivots/hinges.

Guidance for specification option:

Lab Tested up to 31dB (Rw) – See Performance Certificate 900187.

Timber 54 mm rebated leaf on offset pivots/hinges.

Guidance for specification option:

Lab Tested up to 33dB (Rw) – See Performance Certificates 900188 & 900195.

Door frames

Integral Microflush D450 aluminium door frame with 50 mm face.

Trims

Not required.

Shoreditch Edition® as detailed in the Optima Shoreditch Edition® Designer’s Guide.

Guidance for specification option:

Insert requirements.

Hardware

-

Manufacturer guidance

To architect’s choice, from Optima standard ironmongery suite, insert requirements.

Cable management and outlets

Tech Panel: 100 mm (3D) Metal faced with hinged access door (colour to match rest of system).

Tech Panel: 100 mm (3D) Timber with hinged access door.

Guidance for specification option:

Insert veneer surface finish.

Tech Panel: 100 mm (3D) Back-painted glass with hinged access door.

Guidance for specification option:

Insert back-paint colour.

Tech Panel: Back-painted glass with mullion interface to screen.

Guidance for specification option:

Insert back-paint colour.

Tech Panel: Back-painted glass with Nebula interface to screen.

Guidance for specification option:

Insert back-paint colour.

Tech Panel: 54 mm (Flush) Metal faced with hinged access door (colour to match rest of system).

Tech Panel: 54 mm (Flush) Timber with hinged access door.

Guidance for specification option:

Insert veneer surface finish.

Tech Panel: 54 mm (Flush) Back-painted glass with hinged access door.

Guidance for specification option:

Insert back-paint colour.

Access door locking: Not applicable.

Access door locking: Magnetic latch.

Access door locking: Secure near-field electronic latch.

Sound insulation

32 dB (Rw).

Manifestation

-

Manufacturer guidance

Insert requirements. To architects’ choice and in accordance with the requirements of Approved Document K.

Junctions/ Corners

SA Aluminium in-line joint.

SA Aluminium 3-way joint.

SA Aluminium 90° corner joint.

NebulaTM in-line joint.

NebulaTM 3-way joint.

Show more

Manufacturer guidance

Glass-to-glass joints.

Strength grade

Uncongested Office Space – 0.36 kN/m line load.

Congested Office Space – 0.74 kN/m line load.

Public Access Space – 0.74 kN/m line load.

Public Access Space – 1.50 kN/m line load.

Framing colour

Anodized, 25 microns.

Guidance for specification option:

Refer to manufacturer for advice.

Grained, Brightened and Protective Anodized.

Guidance for specification option:

Refer to manufacturer for advice.

Polished, Brightened and Protective Anodized.

Guidance for specification option:

Refer to manufacturer for advice.

Powder-coated, RAL 9005 Black.

Guidance for specification option:

50 microns (nominal), 30% gloss.

Powder-coated, RAL 9006 Silver.

Guidance for specification option:

50 microns (nominal), 30% gloss.

Show more

Accessories/ Other requirements

-

Manufacturer guidance

Refer to manufacturer for advice and insert special requirements.

Sustainability data

Contains Red List materials

Yes

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

89.7 kg CO₂ eq/m²

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

UKAS

UKAS

054168 (0) - Acoustic - Rw33dB - 12mm Tx

UKAS

UKAS

054169 (0) - Acoustic - Rw38dB - 12.8mm ALam

UKAS

UKAS

054203 (0) - Acoustic - Rw41dB - 10.8mm ALam + 10mm Tx

UKAS

UKAS

054202 (0) - Acoustic - Rw39dB - 12mm Tx + 12mm Tx

UKAS

UKAS

054201 (0) - Acoustic - Rw39dB - 12mm Tx + 10mm Tx

UKAS

UKAS

054200 (0) - Acoustic - Rw38dB - 10mm Tx + 10mm Tx

UKAS

UKAS

054204 (0) - Acoustic - Rw42dB - 12.8mm ALam + 10mm Tx

UKAS

UKAS

054205 (0) - Acoustic - Rw42dB - 10.8mm ALam + 12mm Tx

UKAS

UKAS

054206 (0) - Acoustic - Rw43dB - 12.8mm ALam + 12mm Tx

UKAS

UKAS

054207 (0) - Acoustic - Rw43dB - 12.8mm ALam + 10.8mm ALam

UKAS

UKAS

054208 (0) - Acoustic - Rw44dB - 10.8mm ALam + 10.8mm ALam

UKAS

UKAS

054209 (0) - Acoustic - Rw46dB - 12.8mm ALam + 12.8mm Alam

UKAS

UKAS

054210 (0) - Acoustic - Rw48dB - 12.8mm ALam + 12.8mm ALam (Shoreditch)

LEED (Canada)

LEED (Canada)

054302 (5) - LEED v3 - Revolution 54

BREEAM - Certification

BREEAM - Certification

054311 (7) - BREEAM - Revolution 54 Plus

LEED (Canada)

LEED (Canada)

054312 (2) - LEED v4 - Revolution 54

UKAS

UKAS

000030 (1) - Acoustic - Rw42dB - Tech Panel (Empty)

UKAS

UKAS

000031 (1) - Acoustic - Rw42dB - Tech Panel (Insulated)

BM Trada

BM Trada

009109 (3) - ISO 14001 - Optima Products Limited

LEED (Canada)

LEED (Canada)

392-2021-00470901-HA-EN - Optima Products Ltd - LEED Attestation

LEED (Canada)

LEED (Canada)

392-2021-00470902 - WA EN Optima Products Ltd - LEED Attestation

BM Trada

BM Trada

000016 (4) - ISO 9001 - Optima Products Limited

SKA Rating

SKA Rating

054300 (5) - Ska - Revolution 54

WELL Building Standard

WELL Building Standard

054303 (1) - WELL v1 - Revolution 54

WELL Building Standard

WELL Building Standard

054313 (2) - WELL v2 - Revolution 54

Literature

000005 (3) - Warranty - Company Policy

000005 (3) - Warranty - Company Policy

Revolution 54 Plus Designers Guide

Revolution 54 Plus Designers Guide

009819 (0) - EPD - Revolution 54 Plus Double Glazed

009819 (0) - EPD - Revolution 54 Plus Double Glazed

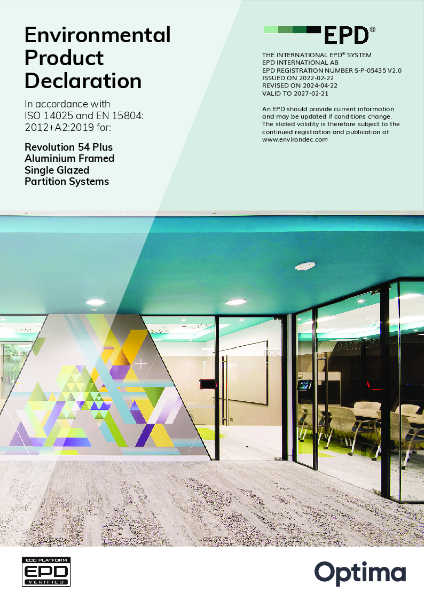

009820 (0) - EPD - Revolution 54 Plus Single Glazed

009820 (0) - EPD - Revolution 54 Plus Single Glazed

Optima Revolution 54 Plus Product Summary

Optima Revolution 54 Plus Product Summary

000018 (1) - Brochure - Clear Thinking

000018 (1) - Brochure - Clear Thinking

Optima Shoreditch Edition Product Summary

Optima Shoreditch Edition Product Summary

Shoreditch Edition Designer Guide

Shoreditch Edition Designer Guide

009823 (0) - EPD - Tech Panels

009823 (0) - EPD - Tech Panels

Similar products from Optima

Kinetic - Relocatable Partition System

Kinetic - Relocatable Partition System

Optima 117 Plus - Relocatable Partition System

Optima 117 Plus - Relocatable Partition System

Optima 117 Plus, 100 mm Tech Panel - Media Walls

Optima 117 Plus, 100 mm Tech Panel - Media Walls

Revolution 100 - Relocatable Partition System

Revolution 100 - Relocatable Partition System

Revolution 100, 100 mm Tech Panel - Media Walls

Revolution 100, 100 mm Tech Panel - Media Walls

Revolution 54 DG Partition - Panel Partitions

Revolution 54 DG Partition - Panel Partitions

Revolution 54 SG Partition, Centrally Glazed - Panel Partitions

Revolution 54 SG Partition, Centrally Glazed - Panel Partitions

Revolution 54 SG Partition, Offset - Panel Partitions

Revolution 54 SG Partition, Offset - Panel Partitions

Revolution 54 Shoreditch Double Glazed Partition

Revolution 54 Shoreditch Double Glazed Partition

Revolution 54, 100 mm Tech Panel - Media Walls

Revolution 54, 100 mm Tech Panel - Media Walls
