Optima 117 Plus - Relocatable Partition System

Verified by manufacturer 4 months ago

Optima 117 Plus - 10 mm toughened glass

Optima Variant:
Third party certifications:
  • UKAS

    UKAS

    Certificate type

  • BREEAM - Certification

    Certificate type

  • LEED (Canada)

    LEED (Canada)

    Certificate type

  • BM Trada

    BM Trada

    Certificate type

  • WELL Building Standard

    WELL Building Standard

    Certificate type

  • SKA Rating

    SKA Rating

    Certificate type

Single glazed, relocatable partition system.

Jump to:
+44 (0)1494 492725 Website

Application

For use in a range of application areas including offices.

Description

Single glazed, relocatable partition system.


Features and benefits:

  • Minimal design.
  • Dry jointed and fully demountable.
  • Aluminium framework.
  • Fully integrates with Revolution 54 and Revolution 100 systems.
  • Numerous door options are available.
  • High acoustic performance ranging from Rw 33-40 dB.
  • Can accommodate up to ±40 mm deflection.

General information

Color

Black

White

Silver

Other

Finish

Powder-coated

Anodized

Grained

Polished

Material

Glass

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

-

Manufacturer guidance

See manufacturer's warranty document.

000005 (3) - Warranty - Company Policy.

Uniclass

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/130 Relocatable partition system

K30/10 Relocatable partition system

Product range

Optima 117 Plus

Specification data - Partition panels

Third-party certification

System to conform to the requirements of BREEAM.

Guidance for specification option:

Satisfies a rating of A+ against Green Guide Ratings 2008 – Ref. Sustainability Statement 117301.

System to conform to the requirements of SKA.

Guidance for specification option:

Compliant with Good Practice Measure M09 – Ref. Sustainability Statement 117300.

Unit size

-

Thickness

-

Manufacturer guidance

Insert requirement or refer to Optima for details.

Partition height (nominal)

-

Manufacturer guidance

Insert floor to ceiling height. Maximum standard height 3000 mm.

Width (nominal)

-

Manufacturer guidance

Insert requirement or refer to Optima for details. Maximum standard width 1500 mm.

Deflection allowance (maximum)

-

Head

25 mm deep x 25 mm wide (no deflection).

25 mm deep x 36 mm wide (no deflection).

25 mm deep x 40 mm wide (no deflection).

50 mm deep x 25 mm wide (no deflection).

50 mm deep x 36 mm wide (no deflection).

50 mm deep x 40 mm wide (no deflection).

90 mm deep (±25 mm deflection – internal).

Guidance for specification option:

To suit 16.8 mm glass.

90 mm deep (±25 mm deflection – internal).

94 mm deep (±25 mm deflection – external).

125mm deep (±25 mm deflection – drywall).

135 mm deep (±40 mm deflection – internal).

Guidance for specification option:

To suit 16.8 mm glass.

135 mm deep (±40 mm deflection – internal).

140 mm deep (±40 mm deflection – external).

140 mm deep (±40mm deflection – drywall).

Floor

12 mm deep back-to-back angles with silicone seal.

25 mm deep x 25 mm wide with clip-on bead.

25 mm deep x 36 mm wide with clip-on bead.

25 mm deep x 40 mm wide with clip-on bead.

50 mm deep x 25 mm wide with clip-on bead.

50 mm deep x 36 mm wide with clip-on bead.

50 mm deep x 40 mm wide with clip-on bead.

Verticals

25 mm deep x 25 mm wide.

25 mm deep x 25 mm wide with clip-on bead.

25 mm deep x 36 mm wide.

25 mm deep x 36 mm wide with clip-on bead.

25 mm deep x 40 mm wide.

25 mm deep x 40 mm wide with clip-on bead.

50 mm deep x 25 mm wide.

50 mm deep x 25 mm wide with clip-on bead.

50 mm deep x 36 mm wide.

50 mm deep x 36 mm wide with clip-on bead.

50 mm deep x 40 mm wide.

50 mm deep x 40 mm wide with clip-on bead.

Panel partition type

Relocatable.

Framing, fixing points and joints

Aluminium extruded track sections.

Glazed panels

-

Type

Single-glazed, 10 mm toughened glass.

Manufacturer guidance

Full height, dry jointed and dry glazed.

Additional features

Not required.

Tapeable glazing bar to 100 mm generic drywall.

Tapeable glazing bar to 122 mm generic drywall.

Door arrangement

-

Type

AXILE Clarity frameless single glazed leaf on lift-off hinges.

Guidance for specification option:

Lab Tested to 32 dB (Rw) with drop seal – See Performance Certificate 900253.

AXILE Clarity frameless single glazed leaf on offset Quad pivots.

Guidance for specification option:

Lab Tested to 32 dB (Rw) with suitable threshold seal - See Performance Certificate 900185.

AXILE Pulse frameless door on in-line pivots.

Guidance for specification option:

Lab tested to 14 dB (Rw) – See Performance Certificate 900271.

EDGE Affinity double glazed leaf on offset pivots/ hinges.

Guidance for specification option:

Lab Tested to 42 dB (Rw) – See Performance Certificate 900258.

EDGE Affinity single glazed leaf on offset pivots/ hinges.

Guidance for specification option:

Lab Tested to 39 dB (Rw) – See Performance Certificate 900257.

EDGE Symmetry double glazed leaf on offset pivots/ hinges.

Guidance for specification option:

Lab Tested to 41 dB (Rw) – See Performance Certificate 900256.

EDGE Symmetry single glazed leaf on offset pivots/ hinges.

Guidance for specification option:

Lab Tested to 35 dB (Rw) – See Performance Certificate 900254.

Timber 44mm leaf on offset pivots/ hinges.

Guidance for specification option:

Lab Tested up to 31 dB (Rw) – See performance Certificate 900187.

Timber 54mm rebated leaf on offset pivots/ hinges.

Guidance for specification option:

Lab Tested up to 33 dB (Rw) – See Performance Certificates 900188 & 900195.

Door frames

Integral Microflush D250.

Integral Microflush D350.

Manufacturer guidance

Aluminium, with 50 mm face.

Trims

Not required.

Shoreditch Edition®.

Guidance for specification option:

Refer to Optima for details.

Hardware

-

Manufacturer guidance

Insert requirement from Optima standard ironmongery suite.

Cable management and outlets

Not required.

Tech panel - metal faced, 100 mm.

Guidance for specification option:

With hinged access door. Colour to match rest of system. Access door locking can be magnetic latch or secure near-field electronic latch.

Tech panel - timber, 100 mm.

Guidance for specification option:

With hinged access door. Insert veneer surface finish. Access door locking can be magnetic latch or secure near-field electronic latch.

Tech panel - back-painted glass, 100 mm.

Guidance for specification option:

With hinged access door. Insert back-paint colour. Access door locking can be magnetic latch or secure near-field electronic latch.

Sound insulation

32 dB (Rw).

Manifestation

-

Manufacturer guidance

Insert requirements. To architects’ choice and in accordance with the requirements of Approved Document K.

Junctions/ corners

90° mitred taped dry corner joint.

90° taped dry corner joint.

Ghost 3-way joint.

Ghost dry butt-joint.

Ghost dry corner joint.

Show more

StrengthGrade

Uncongested Office Space – 0.36 kN/m line load.

Congested Office Space – 0.74 kN/m line load.

Public Access Space – 0.74 kN/m line load.

Public Access Space – 1.50 kN/m line load.

Manufacturer guidance

Duty Rating to BS 5234-2 not applicable to Frameless Glazed Partitioning.

Framing colour

Anodized, 25 microns.

Guidance for specification option:

Refer to Optima for details.

Grained, Brightened and Protective Anodized.

Guidance for specification option:

Refer to Optima for details.

Polished, Brightened and Protective Anodized.

Guidance for specification option:

Refer to Optima for details.

Powder-coated, RAL 9005 Black.

Guidance for specification option:

50 microns, 30% gloss.

Powder-coated, RAL 9006 Silver.

Guidance for specification option:

50 microns, 30% gloss.

Show more

Accessories/ Other requirements

Not required.

Door Frame Spacer for D350 Frame.

Door Frame Spacer for D250 Frame.

Sustainability data

Contains Red List materials

Yes

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

55.9 kg CO₂ eq/m²

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

UKAS

UKAS

117155 (1) - Acoustic - Rw40dB - 16.8mm ALam

UKAS

UKAS

117136 (3) - Acoustic - Rw38dB - 12.8mm ALam

UKAS

UKAS

117135 (3) - Acoustic - Rw37dB - 10.8mm ALam

UKAS

UKAS

117134 (3) - Acoustic - Rw35dB - 10.4mm ALam

UKAS

UKAS

117133 (3) - Acoustic - Rw33dB - 12mm Tx

BREEAM - Certification

BREEAM - Certification

117301 (7) - BREEAM - Optima 117 Plus

LEED (Canada)

LEED (Canada)

117302 (5) - LEED v3 - Optima 117 Plus

LEED (Canada)

LEED (Canada)

117312 (2) - LEED v4 - Optima 117 Plus

UKAS

UKAS

000030 (1) - Acoustic - Rw42dB - Tech Panel (Empty)

UKAS

UKAS

000031 (1) - Acoustic - Rw42dB - Tech Panel (Insulated)

LEED (Canada)

LEED (Canada)

392-2021-00470901-HA-EN - Optima Products Ltd - LEED Attestation

LEED (Canada)

LEED (Canada)

392-2021-00470902 - WA EN Optima Products Ltd - LEED Attestation

BM Trada

BM Trada

009109 (3) - ISO 14001 - Optima Products Limited

BM Trada

BM Trada

000016 (4) - ISO 9001 - Optima Products Limited

WELL Building Standard

WELL Building Standard

117303 (1) - WELL v1 - Optima 117 Plus

WELL Building Standard

WELL Building Standard

117313 (2) - WELL v2 - Optima 117 Plus

SKA Rating

SKA Rating

117300 (5) - Ska - Optima 117 Plus

Literature

Optima 117 Plus Product Summary

Optima 117 Plus Product Summary

Optima 117 Plus Designers Guide

Optima 117 Plus Designers Guide

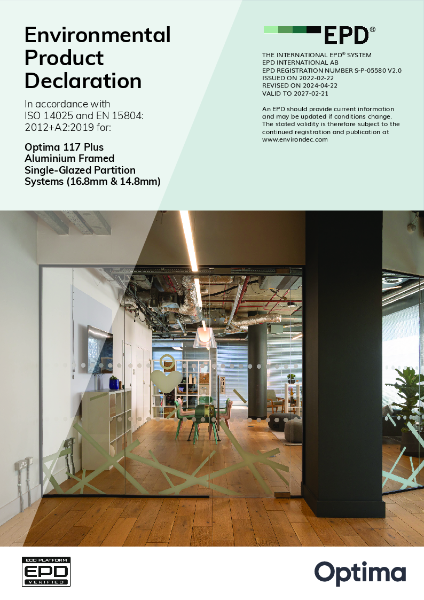

009818 (0) - EPD - Optima 117 Plus - 16.8mm ALam

009818 (0) - EPD - Optima 117 Plus - 16.8mm ALam

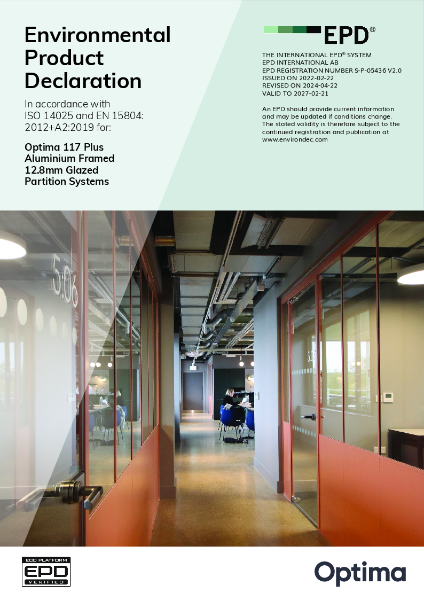

009817 (0) - EPD - Optima 117 Plus -12.8mm ALam

009817 (0) - EPD - Optima 117 Plus -12.8mm ALam

000005 (3) - Warranty - Company Policy

000005 (3) - Warranty - Company Policy

000018 (1) - Brochure - Clear Thinking

000018 (1) - Brochure - Clear Thinking

Shoreditch Edition Designer Guide

Shoreditch Edition Designer Guide

Optima Shoreditch Edition Product Summary

Optima Shoreditch Edition Product Summary

009823 (0) - EPD - Tech Panels

009823 (0) - EPD - Tech Panels
