Optima 117 Plus, 100 mm Tech Panel - Media Walls

Name: Optima 117 Plus, 100 mm Tech Panel - Media Walls
Brand: Optima
SKU: wBXGv9JKTw3KPp8HGsn8nN

Verified by manufacturer 5 months ago

Optima

Third party certifications:

BM Trada
Certificate type

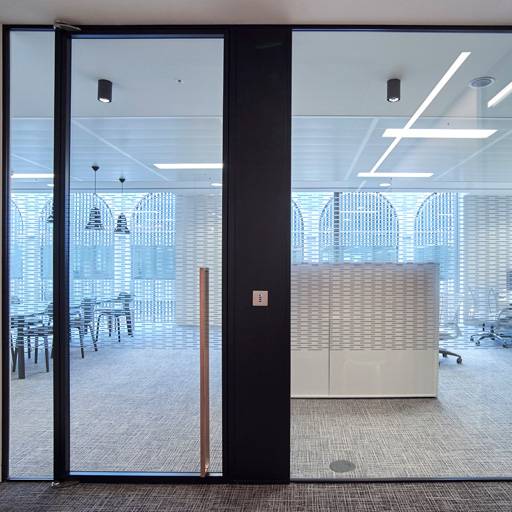

Single-glazed bespoke partition system with tech panels.

Jump to:

+44 (0)1494 492725 Website

Application

For public access space and office workplace environments.

Designed to fully integrate with glazing systems allowing the use of room booking systems, lighting and temperature control within a meeting room.

Description

Single-glazed bespoke partition system with tech panels.

Features and benefits:

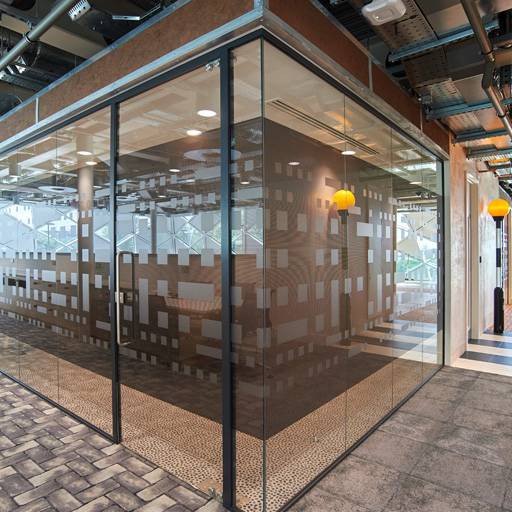

Minimal head and base channels and discreet glass-to-glass dry joints create the illusion of vast areas of unsupported glass.
Wide range of sizes depending on product option.

General information

Color	Silver White Other
Finish	Anodized Glazed Grained Polished Powder-coated
Material	Glass Aluminium
Warranty description	Ten year Guidance for specification option: See Warranty Policy literature for more information.

Uniclass	Pr_25_71_57_60 Partition panelsPrimary
CAWS	K30/10 Relocatable partition system K30/130 Relocatable partition system

Product range	Partitions

Specification data - Partition panels

Third party accreditation	Duty rating to BS 5234-2, glazing to BS EN ISO 10140-2 and ISO 717-1.
Unit size	-
Thickness	10 mm. 10.8 mm. 12 mm. 12.8 mm. 16.8 mm.
Partition height (nominal)	Guidance for specification option: Insert floor to ceiling requirement, available up to 3000 mm.
Width (nominal)	25 mm. 36 mm. 40 mm. Manufacturer guidance (width of floor detail):
Deflection allowance (maximum)	-
Head	117102-01 – 90 mm deep (±25 mm deflection – internal). 117102-02 – Door head. 117102-03 – 94 mm deep (±25 mm deflection – external). 117102-04 – Door head. 117103-01 – 135 mm deep (±40 mm deflection – internal). 117103-02 – Door head. 117103-03 – 140 mm deep (±40 mm deflection – external). 117103-04 – Door head. 117104-01 – 90 mm deep (±25 mm deflection – internal) to suit 16.8 mm glass. 117104-02 – Door head. 117104-03 – 135 mm deep (±40 mm deflection – internal) to suit 16.8 mm glass. 117104-04 – Door head. 117105-01 – 50 x 25 mm (d x w) (no deflection). 117105-02 – 25x 25 mm (d x w) (no deflection). 117105-03 – Door head. 117106-01 – 50 x 36 mm (d x w) (no deflection). 117106-02 – 25 x 36 mm (d x w) (no deflection). 117106-03 – Door head. 117107-01 – 50 x 40 mm (d x w) (no deflection). 117107-02 – 25 x 40 mm (d x w) (no deflection). 117107-03 – Door head.
Floor	117108-01. Guidance for specification option: 50 x 25 mm (d x w) with clip-on bead. 117108-02. Guidance for specification option: 25 x 25 mm (d x w) with clip-on bead. 117108-03. Guidance for specification option: 12 mm deep back-to-back angles with silicone seal. 117109-01. Guidance for specification option: 50 x 36 mm (d x w) with clip-on bead. 117109-02. Guidance for specification option: 25 x 36 mm (d x w) with clip-on bead. 117110-01. Guidance for specification option: 50 x 40 mm (d x w) with clip-on bead. 117110-02. Guidance for specification option: 25 x 40 mm (d x w) with clip-on bead. 117110-03. Guidance for specification option: 12 mm deep back-to-back angles with silicone seal.
Verticals	117111-01 – 50 x 25 mm (d x w). 117111-02 – 25 x 25 mm (d x w). 117112-01 – 50 x 25 mm (d x w) with clip-on bead. 117112-02 – 25 x 25 mm (d x w) with clip-on bead. 117113-01 – 50 x 36 mm (d x w). 117113-02 – 25 x 36 mm (d x w). 117113-03 – ±25 mm horizontal deflection. 117114-01 – 50 x 36 mm (d x w) with clip-on bead. 117114-02 – 25 x 36 mm (d x w) with clip-on bead. 117115-01 – 50 x 40 mm (d x w). 117115-02 – 25 x 40 mm (d x w). 117115-03 – ±25 mm horizontal deflection. 117116-01 – 50 x 40 mm (d x w) with clip-on bead. 117116-02 – 25 x 40 mm (d x w) with clip-on bead. 117117-01 – Door frame spacer for D350 frame. 117117-02 – Door frame spacer for D250 frame. 117117-03 – Fair end. 117125-01 – Tapeable glazing bar to 100 mm generic drywall. 117125-02 – Tapeable glazing bar to 122 mm generic drywall. 117126-01 - Tapeable glazing bar to 100 mm generic drywall. 117126-02 - Tapeable glazing bar to 122 mm generic drywall.
Panel partition type	Single-glazed partition system.
Framing, junctions, corners	Nebula dry butt-joint. SA aluminium dry butt-joint. Ghost dry butt-joint. Taped dry butt-joint. 90° mitred taped dry corner joint. SA aluminium dry corner joint. Ghost dry corner joint. 90° taped dry corner joint. Taped three-way to plain glass. Taped three-way to Nebula™ joint. Taped three-way to SA Aluminium joint. SA Aluminium three-way joint. Ghost three-way joint. Manufacturer guidance Framing: Not applicable for AXILE pulse. Junctions/corners (only):
Solid panels	-
Type	Metal-faced with hinged access door. Timber with hinged access door. Back-painted glass with hinged access door. Back-painted glass with Nebula™ interface to screen.
Finish and colour	Veneer surface finish. Back-paint colour. Choice of colour to match rest of system.
Joint treatment	-
Type	Aluminium extruded track sections.
Finish and colour	Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal).
Glazed panels	-
Type	10 mm toughened glass. Guidance for specification option: 32 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 10.8 mm acoustic laminate glass. Guidance for specification option: 37 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 10.8 mm laminate glass. Guidance for specification option: 35 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 12 mm toughened glass. Guidance for specification option: 33 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 12.8 mm acoustic laminate glass. Guidance for specification option: 38 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 12.8 mm laminate glass. Guidance for specification option: 36 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. 16.8 mm acoustic laminate glass. Guidance for specification option: 40 dB (Rw) to BS EN ISO 10140-2 and ISO 717-1. Manufacturer guidance Double glazed. Glazing is full height, dry jointed and dry glazed.
Door arrangement	-
Door frames	Not required. Integral Microflush D250 aluminium door frame with 50 mm face and leaf set. Integral Microflush D350 aluminium door frame with 50 mm face and leaf.
Door leafs	-
Type	AXILE Clarity frameless single-glazed leaf on lift-off hinges (32 dB (Rw)). AXILE Clarity frameless single-glazed leaf on offset quad pivots (32 dB (Rw)). AXILE Pulse frameless door on in-line pivots (14 dB (Rw)). EDGE Affinity double-glazed leaf on offset pivots/ hinges(42 dB (Rw).). EDGE Affinity single-glazed leaf on offset pivots/ hinges (39 dB (Rw)). EDGE Flush double-glazed leaf on offset pivots (37 dB (Rw)). EDGE Symmetry double-glazed leaf on offset pivots/ hinges (41 dB (Rw)). EDGE Symmetry single-glazed leaf on offset pivots/ hinges (35 dB (Rw)). Timber 44 mm leaf on offset pivots/ hinges (31 dB (Rw)). Timber 54 mm rebated leaf on offset pivots/ hinges (33 dB (Rw)).
Ceiling	-
Type	Guidance for specification option: Available up to 3000 mm.
Hardware	Lift-off hinges. Offset pivots/hinges. Other. Guidance for specification option: Insert requirements; contact manufacturer for more information.
Seals	Silicone seal.
Other features	Not required. Magnetic latch. Secure near-field electronic latch. Manufacturer guidance (access door locking):

Configuration	As scheduled. As drawing. Guidance for specification option: Insert drawing reference number.
StrengthGrade	Congested office space – 0.74 kN/m line load. Public access space – 0.74 kN/m line load. Public access space – 1.50 kN/m line load. Uncongested office space – 0.36 kN/m line load.
Sustainability requirements	Not required. BREEAM 'A' rating. SKA Good Practice Measure M09-compliant.
Accessories	Guidance for specification option: Insert requirements; contact manufacturer for more information.
Junctions and corners	117128-01. Guidance for specification option: Nebula™ dry butt-joint. 117128-02. Guidance for specification option: SA aluminium dry butt-joint. 117128-03. Guidance for specification option: Ghost dry butt-joint. 117128-04. Guidance for specification option: Taped dry butt-joint. 117128-05. Guidance for specification option: 90° mitred taped dry corner joint. 117128-06. Guidance for specification option: SA aluminium dry corner joint. 117128-07. Guidance for specification option: Ghost dry corner joint. 117128-08. Guidance for specification option: 90° taped dry corner joint. 117129-01. Guidance for specification option: Taped three-way to plain glass. 117129-02. Guidance for specification option: Taped three-way to Nebula joint. 117129-03. Guidance for specification option: Taped three-way to SA Aluminium joint. 117129-04. Guidance for specification option: SA Aluminium three-way joint. 117129-05. Guidance for specification option: Ghost three-way joint. Show more

Sustainability data

Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	26.1 kg CO₂ eq/m² Self declared Guidance for specification option: See Environmental Product Declaration literature for detailed LCA data.

BIM objects

Platform	Compatible	Version
Revit	Revit 2017	1

Third party certifications

BM Trada

009109 (3) - ISO 14001 - Optima Products Limited

BM Trada

000016 (4) - ISO 9001 - Optima Products Limited

Literature

Optima 117 Plus Product Summary

000005 (3) - Warranty - Company Policy

Optima 117 Plus, 100 mm Tech Panel - Media Walls

Application

Description

General information

Color

Finish

Material

Warranty description

Uniclass

CAWS

Product range

Specification data - Partition panels

Third party accreditation

Duty rating to BS 5234-2, glazing to BS EN ISO 10140-2 and ISO 717-1.

Unit size

Thickness

10 mm.

10.8 mm.

12 mm.

12.8 mm.

16.8 mm.

Partition height (nominal)

Width (nominal)

25 mm.

36 mm.

40 mm.

Manufacturer guidance

Deflection allowance (maximum)

Head

117102-01 – 90 mm deep (±25 mm deflection – internal).

117102-02 – Door head.

117102-03 – 94 mm deep (±25 mm deflection – external).

117102-04 – Door head.

117103-01 – 135 mm deep (±40 mm deflection – internal).

117103-02 – Door head.

117103-03 – 140 mm deep (±40 mm deflection – external).

117103-04 – Door head.

117104-01 – 90 mm deep (±25 mm deflection – internal) to suit 16.8 mm glass.

117104-02 – Door head.

117104-03 – 135 mm deep (±40 mm deflection – internal) to suit 16.8 mm glass.

117104-04 – Door head.

117105-01 – 50 x 25 mm (d x w) (no deflection).

117105-02 – 25x 25 mm (d x w) (no deflection).

117105-03 – Door head.

117106-01 – 50 x 36 mm (d x w) (no deflection).117106-02 – 25 x 36 mm (d x w) (no deflection).

117106-03 – Door head.

117107-01 – 50 x 40 mm (d x w) (no deflection).

117107-02 – 25 x 40 mm (d x w) (no deflection).

117107-03 – Door head.

Floor

117108-01.

117108-02.

117108-03.

117109-01.

117109-02.

117110-01.

117110-02.

117110-03.

Verticals

117111-01 – 50 x 25 mm (d x w).

117111-02 – 25 x 25 mm (d x w).

117112-01 – 50 x 25 mm (d x w) with clip-on bead.

117112-02 – 25 x 25 mm (d x w) with clip-on bead.

117113-01 – 50 x 36 mm (d x w).

117113-02 – 25 x 36 mm (d x w).

117113-03 – ±25 mm horizontal deflection.

117114-01 – 50 x 36 mm (d x w) with clip-on bead.

117114-02 – 25 x 36 mm (d x w) with clip-on bead.

117115-01 – 50 x 40 mm (d x w).

117115-02 – 25 x 40 mm (d x w).

117115-03 – ±25 mm horizontal deflection.

117116-01 – 50 x 40 mm (d x w) with clip-on bead.

117116-02 – 25 x 40 mm (d x w) with clip-on bead.

117117-01 – Door frame spacer for D350 frame.

117117-02 – Door frame spacer for D250 frame.

117117-03 – Fair end.

117125-01 – Tapeable glazing bar to 100 mm generic drywall.

117125-02 – Tapeable glazing bar to 122 mm generic drywall.

117126-01 - Tapeable glazing bar to 100 mm generic drywall.

117126-02 - Tapeable glazing bar to 122 mm generic drywall.

117106-01 – 50 x 36 mm (d x w) (no deflection).

117106-02 – 25 x 36 mm (d x w) (no deflection).
