Revolution 100 - Relocatable Partition System

Verified by manufacturer 2 months ago

Revolution 100 - 10mm toughened glass

Optima Variant:
Third party certifications:
  • UKAS

    UKAS

    Certificate type

  • LEED (Canada)

    LEED (Canada)

    Certificate type

  • BM Trada

    BM Trada

    Certificate type

  • BREEAM - Certification

    Certificate type

  • SKA Rating

    SKA Rating

    Certificate type

  • WELL Building Standard

    WELL Building Standard

    Certificate type

Single or double glazed, relocatable partition system.

Jump to:
+44 (0)1494 492725 Website

Application

For use in a range of application areas including offices.

Description

Single or double glazed relocatable partition system. Suitable for use with the Optima Adaptable Wall.


Features and benefits:

  • High acoustic mullion-free glazed partition system.
  • Can be single or double glazed.
  • Dry jointed and fully demountable.
  • Aluminium framework.
  • Fully integrates with Revolution 54 single glazing and Optima 117 Plus single glazing.
  • Numerous door options including 100 mm thick Elite Series.
  • Maximum tested acoustic rating of Rw 51 dB double glazed using 2 x 12.8 mm acoustic laminated glass and Rw 40 dB single glazed using 16.8 mm acoustic laminated glass.
  • Can accommodate up to ±40 mm deflection.

General information

Color

Black

White

Silver

Other

Finish

Powder-coated

Anodized

Grained

Polished

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

-

Manufacturer guidance

See manufacturer's warranty document.

Uniclass

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/130 Relocatable partition system

K30/10 Relocatable partition system

Product range

Revolution 100 with Adaptable Wall

Specification data - Partition panels

Third-party certification

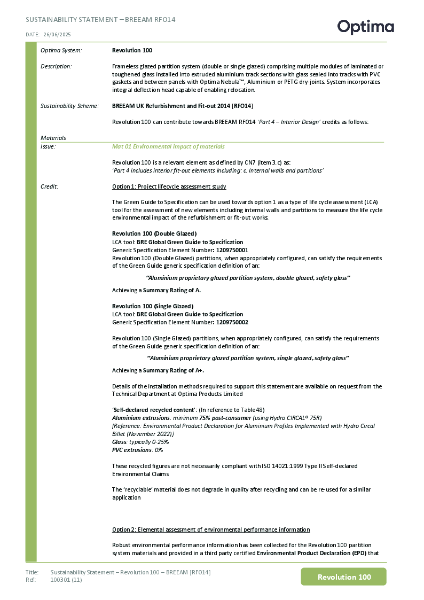

System to conform to the requirements of BREEAM.

Guidance for specification option:

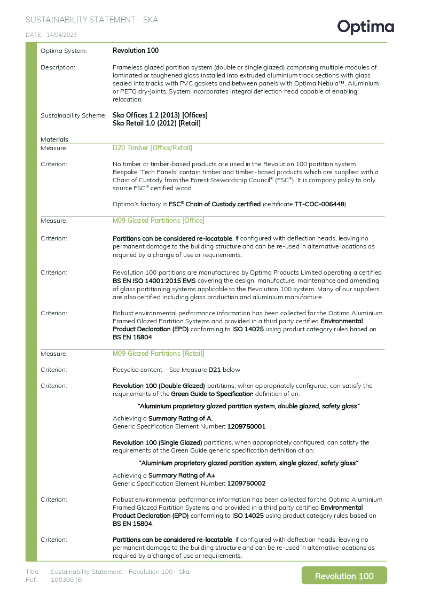

Satisfies a rating of A+ against Green Guide Ratings 2008 – Ref. Sustainability Statement 100300/100301.

System to conform to the requirements of SKA.

Guidance for specification option:

Compliant with Good Practice Measure M09 – Ref. Sustainability Statement 100300.

Unit size

-

Thickness

-

Manufacturer guidance

Insert requirement or refer to Optima for details.

Partition height (nominal)

-

Manufacturer guidance

Insert floor to ceiling height. Maximum standard height 3000 mm using 12.8 mm laminated glass, subject to build configuration and access into building. Greater heights up to 4 m can be achieved with 16.8 mm laminated glass; consult manufacturer.

Width (nominal)

-

Manufacturer guidance

Insert requirement or refer to Optima for details.

Deflection allowance (maximum)

-

Head

25 mm deep (no deflection) for up to 12.8 mm glass.

50 mm deep (no deflection) for up to 12.8 mm glass.

90 mm deep (±25mm deflection – internal) for up to 12.8 mm glass.

94 mm deep (±25mm deflection – external) for up to 12.8 mm glass.

135 mm deep (±40mm deflection – internal) for up to 12.8 mm glass.

140 mm deep (±40mm deflection – external) for up to 12.8 mm glass.

Floor

25 mm deep for up to 12.8 mm glass.

50 mm deep for up to 12.8 mm glass.

Verticals

25 mm deep with clip-on bead for up to 12.8 mm glass.

25 mm deep for up to 12.8 mm glass.

50 mm deep with clip-on bead for up to 12.8 mm glass.

50 mm deep for up to 12.8 mm glass.

Door Frame Spacer for D660 Frame.

Door Frame Spacer for D665 Frame.

Panel partition type

Relocatable.

Framing, fixing points and joints

Aluminium extruded track sections.

Solid panels

-

Type

-

Finish and colour

-

Glazed panels

-

Type

Single-glazed, 10 mm toughened glass

Door arrangement

-

Type

AXILE Clarity frameless single glazed leaf on offset Quad pivots.

Guidance for specification option:

Lab Tested to 32 dB (Rw) with suitable threshold seal - See Performance Certificate 900185.

AXILE Clarity frameless single glazed leaf on lift-off hinges.

Guidance for specification option:

Lab Tested to 32dB (Rw) with drop seal – See Performance Certificate 900253.

EDGE Symmetry single glazed leaf on offset pivots/hinges.

Guidance for specification option:

Lab Tested to 35dB (Rw) – See Performance Certificate 900254.

If door leaf needs to incorporate Shoreditch Edition® features to complement partition, insert requirements.

EDGE Symmetry double glazed leaf on offset pivots/hinges.

Guidance for specification option:

Lab Tested to 41dB (Rw) – See Performance Certificate 900256.

If door leaf needs to incorporate Shoreditch Edition® features to complement partition, insert requirements.

EDGE Affinity single glazed leaf on offset pivots/hinges.

Guidance for specification option:

Lab Tested to 39dB (Rw) – See Performance Certificate 900257.

EDGE Affinity double glazed leaf on offset pivots/hinges.

Guidance for specification option:

Lab Tested to 42dB (Rw) – See Performance Certificate 900258.

Timber 44 mm leaf on offset pivots/hinges.

Guidance for specification option:

Lab Tested up to 31dB (Rw) – See Performance Certificate 900187.

Timber 54 mm rebated leaf on offset pivots/hinges.

Guidance for specification option:

Lab Tested up to 33dB (Rw) – See Performance Certificates 900188 & 900195.

Door frames

Integral Microflush D250 aluminium door frame with 50 mm face.

Integral Microflush D660 aluminium door frame with 60 mm face.

Integral Microflush D665 aluminium door frame with 65 mm face.

Trims

Not required.

Shoreditch Edition® as detailed in the Optima Shoreditch Edition® Designer’s Guide.

Guidance for specification option:

Insert requirements.

Hardware

-

Manufacturer guidance

To architect’s choice, from Optima standard ironmongery suite, insert requirements.

Cable management and outlets

Tech Panel: 100 mm (flush) Metal faced with hinged access door (colour to match rest of system).

Tech Panel: 100 mm (flush) Timber with hinged access door.

Guidance for specification option:

Insert veneer surface finish.

Tech Panel: 100 mm (flush) Back-painted glass with hinged access door.

Guidance for specification option:

Insert back-paint colour.

Access door locking: Not applicable.

Access door locking: Magnetic latch.

Access door locking: Secure near-field electronic latch.

Manifestation

-

Manufacturer guidance

Insert requirements. To architects’ choice and in accordance with the requirements of Approved Document K.

Junctions/ Corners

90° mitred taped dry corner joint.

90° taped dry corner joint.

Ghost 3-way joint.

Ghost dry butt-joint.

Ghost dry corner joint.

Show more

Manufacturer guidance

Glass-to-glass joints.

Strength grade

Uncongested Office Space – 0.36 kN/m line load.

Congested Office Space – 0.74 kN/m line load.

Public Access Space – 0.74 kN/m line load.

Public Access Space – 1.50 kN/m line load.

Manufacturer guidance

Duty Rating to BS 5234-2 is not applicable to Frameless Glazed Partitioning System designed for these categories of use.

Framing colour

Anodized, 25 microns.

Guidance for specification option:

Refer to manufacturer for advice.

Grained, Brightened and Protective Anodized.

Guidance for specification option:

Refer to manufacturer for advice.

Polished, Brightened and Protective Anodized.

Guidance for specification option:

Refer to manufacturer for advice.

Powder-coated, RAL 9005 Black.

Guidance for specification option:

50 microns (nominal), 30% gloss.

Powder-coated, RAL 9006 Silver.

Guidance for specification option:

50 microns (nominal), 30% gloss.

Show more

Accessories/ Other requirements

-

Manufacturer guidance

Refer to manufacturer for advice and insert special requirements.

Transom

50 mm deep for up to 12.8 mm glass.

Mullion

50 mm wide for up to 12.8 mm glass.

Sustainability data

Contains Red List materials

Yes

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

85.9 kg CO₂ eq/m²

Third party certifications

UKAS

UKAS

000031 (1) - Acoustic - Rw42dB - Tech Panel (Insulated)

UKAS

UKAS

000030 (1) - Acoustic - Rw42dB - Tech Panel (Empty)

LEED (Canada)

LEED (Canada)

392-2021-00470901-HA-EN - Optima Products Ltd - LEED Attestation

LEED (Canada)

LEED (Canada)

392-2021-00470902 - WA EN Optima Products Ltd - LEED Attestation

BM Trada

BM Trada

009109 (3) - ISO 14001 - Optima Products Limited

BM Trada

BM Trada

000016 (4) - ISO 9001 - Optima Products Limited

UKAS

UKAS

100066 (1) - Acoustic - Rw45dB - ELITE Affinity Door in D660 Frame

UKAS

UKAS

100065 (1) - Acoustic - Rw43dB - ELITE Symmetry Door in D660 Frame

UKAS

UKAS

100064 (1) - Acoustic - Rw39dB - ELITE Aero in 12.8mm ALam +12.8mm ALam

UKAS

UKAS

100063 (1) - Acoustic - Rw53dB - 16.8mm ALam + 16.8mm ALam

UKAS

UKAS

100062 (1) - Acoustic - Rw50dB - 10.8mm ALam + 16.8mm ALam

UKAS

UKAS

100061 (1) - Acoustic - Rw48dB - 12mm Tx + 12.8mm ALam

UKAS

UKAS

100060 (1) - Acoustic - Rw45dB - 12mm Tx + 12mm Tx

UKAS

UKAS

100059 (1) - Acoustic - Rw40dB - 16.8mm ALam

UKAS

UKAS

100058 (1) - Acoustic - Rw35dB - 15mm Tx

UKAS

UKAS

100057 (1) - Acoustic - Rw39dB - 14.8mm ALam

UKAS

UKAS

100056 (1) - Acoustic - Rw38dB - 12.8mm ALam

UKAS

UKAS

100055 (1) - Acoustic - Rw34dB - 12mm Tx

UKAS

UKAS

100054 (1) - Acoustic - Rw36dB -10.8mm ALam

UKAS

UKAS

100052 (1) - Acoustic - Rw52dB - 12.8mm ALam + 16.8mm ALam

UKAS

UKAS

100051 (1) - Acoustic - Rw49dB - 10.8mm ALam + 12.8mm ALam

UKAS

UKAS

100050 (1) - Acoustic - Rw51dB - 12.8mm ALam + 12.8mm ALam

LEED (Canada)

LEED (Canada)

100312 (2) - LEED v4 - Revolution 100

LEED (Canada)

LEED (Canada)

100302 (5) - LEED v3 - Revolution 100

BREEAM - Certification

BREEAM - Certification

100301 (7) - BREEAM - Revolution 100

SKA Rating

SKA Rating

100300 (5) - Ska - Revolution 100

WELL Building Standard

WELL Building Standard

100303 (1) - WELL v1 - Revolution 100

WELL Building Standard

WELL Building Standard

100313 (2) - WELL v2 - Revolution 100

Literature

000005 (3) - Warranty - Company Policy

000005 (3) - Warranty - Company Policy

Optima Revolution 100 Product Summary

Optima Revolution 100 Product Summary

009821 (0) - EPD -  Revolution 100 Double Glazed

009821 (0) - EPD - Revolution 100 Double Glazed

Revolution 100 with Adaptable Wall Designers Guide

Revolution 100 with Adaptable Wall Designers Guide

000018 (1) - Brochure - Clear Thinking

000018 (1) - Brochure - Clear Thinking

Optima Shoreditch Edition Product Summary

Optima Shoreditch Edition Product Summary

Shoreditch Edition Designer Guide

Shoreditch Edition Designer Guide

009822 (0) - EPD - Revolution 100 Single Glazed

009822 (0) - EPD - Revolution 100 Single Glazed

009812 (1) - EPD - Adaptable Wall

009812 (1) - EPD - Adaptable Wall

009823 (0) - EPD - Tech Panels

009823 (0) - EPD - Tech Panels

Similar products from Optima

Kinetic - Relocatable Partition System

Kinetic - Relocatable Partition System

Optima 117 Plus - Relocatable Partition System

Optima 117 Plus - Relocatable Partition System

Optima 117 Plus, 100 mm Tech Panel - Media Walls

Optima 117 Plus, 100 mm Tech Panel - Media Walls

Revolution 100, 100 mm Tech Panel - Media Walls

Revolution 100, 100 mm Tech Panel - Media Walls

Revolution 54 DG Partition - Panel Partitions

Revolution 54 DG Partition - Panel Partitions

Revolution 54 Plus - Relocatable Partition System

Revolution 54 Plus - Relocatable Partition System

Revolution 54 SG Partition, Centrally Glazed - Panel Partitions

Revolution 54 SG Partition, Centrally Glazed - Panel Partitions

Revolution 54 SG Partition, Offset - Panel Partitions

Revolution 54 SG Partition, Offset - Panel Partitions

Revolution 54 Shoreditch Double Glazed Partition

Revolution 54 Shoreditch Double Glazed Partition

Revolution 54, 100 mm Tech Panel - Media Walls

Revolution 54, 100 mm Tech Panel - Media Walls
