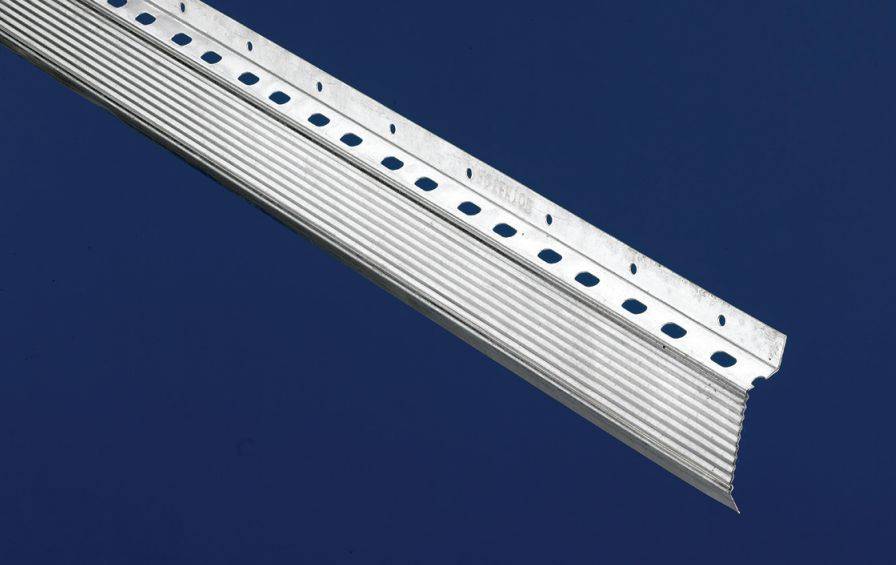

Resilient Bar Profiles - Sound Insulation for Plasterboard Lining
Verified by manufacturer 6 months ago
Walls
Walls
Profiles designed to improve the sound insulation of plasterboard walls and ceilings in new builds and in the improvement of existing constructions.
Application
Designed to improve the sound insulation of plasterboard walls and ceilings in new builds and in the improvement of existing constructions.
Description
Profiles designed to improve the sound insulation of plasterboard walls and ceilings in new builds and in the improvement of existing constructions.
The profiles assists in isolating the plasterboard from the supporting surface hence reducing the area of contact and dissipating the level of sound transferring through the metal section.
General information
Color | Silver |
Finish | Galvanized |
Material | Carbon steel |
Shape | Rectangle |
Length | 2400 mm Guidance for specification option: 5100 only. 3000 mm |
Width | 40 mm Guidance for specification option: 5100 only. 45 mm Guidance for specification option: 5102 only. 60 mm Guidance for specification option: 5007 or 5009 only. |
Height | 13.5 mm Guidance for specification option: 5100 only. 17 mm Guidance for specification option: 5102 only. 27 mm Guidance for specification option: 5007 or 5009 only. |
Uniclass | |
CAWS | K10/220 Proprietary suspended ceiling system K10/50 Suspended ceiling system on metal framing |
Specification data - Carbon steel dry lining frames
Material | Galvanized steel. |
Component types | |
Wall linings | Standard resilient bar 40 x 13.5 x 0.6 mm (5100).Guidance for specification option: Available in lengths of 2.4 and 3.0 m. Resilient bar 45 x 17 x 0.5 mm (5102).Guidance for specification option: 3 m long as standard. DIN standard resilient bar 60 x 27 x 0.6 mm (5007).Guidance for specification option: 3 m long as standard. DIN standard profile 5007 is particularly effective when supporting a greater mass or weight of board (maximum 50 kg/m²) to assist in achieving higher levels of acoustic performance. DIN standard resilient bar 60 x 27 x 0.9 mm (5009).Guidance for specification option: 3 m long as standard. Manufacturer guidanceRecommended centres vary according to lining requirements; consult manufacturer's literature for details. |
Fixings | Flat pan head screws, 35 x 4.2 mm. Guidance for specification option: Recommended for fixing resilient bars and profiles through to timber joist. The fixing compresses the profile or bracket to the joist without causing any ripping to the existing perforation. Other. Guidance for specification option: Insert requirements. |
