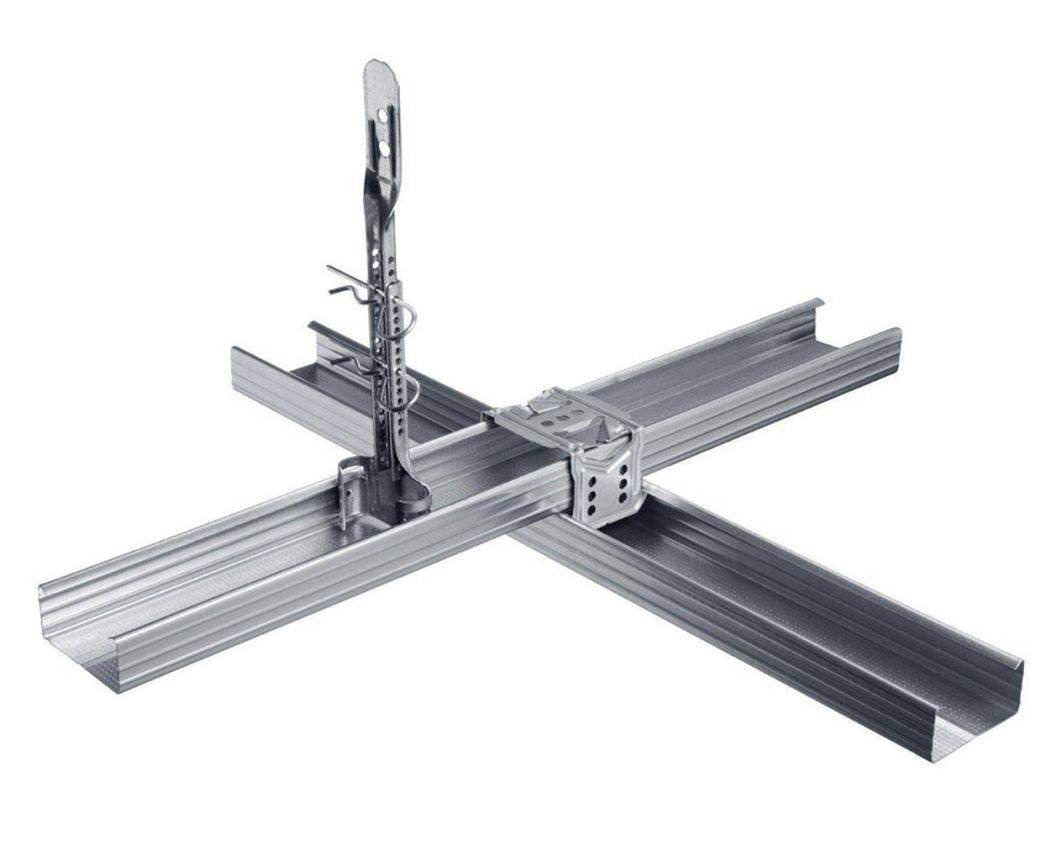

K400 Suspended Ceiling Range - Suspended Ceiling Substructure

Verified by manufacturer 6 months ago

Protektor Group UK

Heavy duty (DIN standard) suspended ceiling substructure.

Jump to:
07769270193 Website

Application

Heavy duty (DIN standard) suspended ceiling substructure. Suitable for applications with curved ceilings or where there are stringent requirements for soundproofing or fire prevention.

For external or high humidity areas where corrosion resistance is required, the manufacturer recommends the coated C3 and C5 range of profiles and accessories.

Description

Heavy duty (DIN standard) suspended ceiling substructure.

  • Suitable for applications with curved ceilings or where there are stringent requirements for soundproofing or fire prevention.
  • Can easily provide surround support for the installation of access panels.


For external or high humidity areas where corrosion resistance is required, the manufacturer recommends the coated C3 and C5 range of profiles and accessories (specified separately).

General information

Color

Silver

Finish

Galvanized

Material

Carbon steel

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_85_32_14 Carbon steel dry lining framesPrimary

CAWS

K10/220 Proprietary suspended ceiling system

K10/50 Suspended ceiling system on metal framing

Specification data - Carbon steel dry lining frames

Material

Galvanized steel.

Component types

-

Ceilings and soffits

5120 CD ceiling profiles 60 x 0.6 mm.

PP50 angle profiles 50 x 50 x 0.7 mm.

PP601 angle profiles 50 x 75 x 1.2 mm.

PP602 angle profiles 50 x 75 x 2 mm.

PP603 angle profiles 50 x 75 x 3 mm.

PP604 angle profiles 50 x 50 x 3 mm.

PP605 angle profiles 60 x 80 x 3 mm.

5168 U perimeter profiles.

5242 U perimeter profiles.

5244 U perimeter profiles.

5072 Bogen curved ceiling profiles.

5114 Hat ceiling profile 48 x 15.5 x 0.6 mm.

6001 slotted metal strip 20 x 1.5 mm.

Manufacturer guidance

See manufacturer's literature for guidelines on centres based on maximum load (including board).


Consult manufacturer's literature and insert requirements including drawing reference/ schedule as required.

Ceiling hangers

6011 Nonius hangers.

Guidance for specification option:

For use with HD T profiles.

6012 Nonius hangers.

6013 Nonius hangers.

Guidance for specification option:

For use with UA50 profiles or 50 x 50 mm timber battens.

6014 Nonius hangers.

Guidance for specification option:

For use with CD 60-27 profiles.

6015 Nonius hangers.

Guidance for specification option:

For use with timber battens.

6017 Nonius hangers.

Guidance for specification option:

For use with K400 Arch.

6018 CD Nonius hangers.

Manufacturer guidance

Consult manufacturer's literature and insert requirements including drawing reference/ schedule as required.


See also Accessories for adjusting strips.

Fasteners

Plasterboard screws

Guidance for specification option:

Note: self-drilling drywall pan head screws to be used in domestic/ residential applications.

Accessories

6032 connectors for adjusting strips.

6078 profile connectors.

6093 click fix rail runner brackets.

6100 cross connectors for 5129.

6199 adjusting clamps.

Show more
